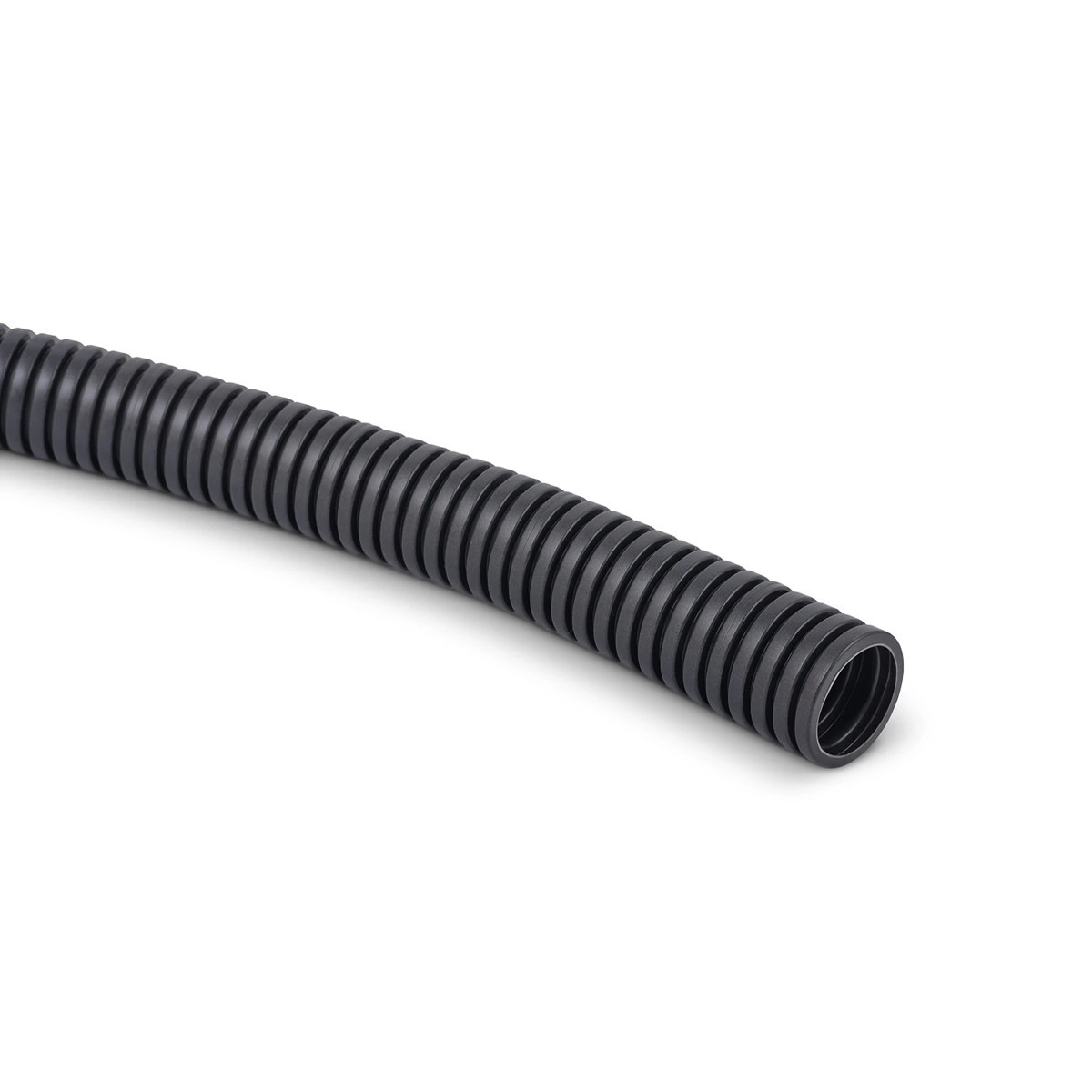

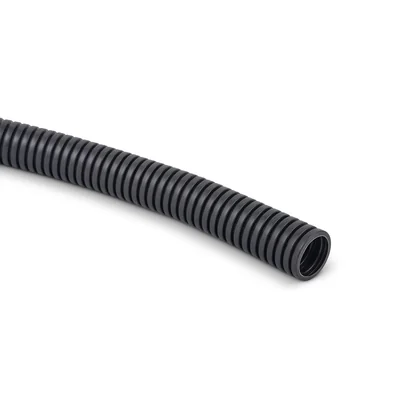

PVC 320N corrugated pipe, size 20/16, 50 m 10011

local index:
TRG008TTPL
Catalog No:
10011
EAN code:
5908312750888
Manufacturer: TT PLAST
Section length [m]: 50
Number of veins: 8
Color: Gray
Price:
16,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 100 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Casing pipes type RKLS and RKLSP made of PVC are flame retardant pipes (the fire goes out after removing its source). They are designed to protect electrical installations in construction and industry against: mechanical factors, temperature influences and moisture. RKLS and RKLSP pipes can be laid and poured with concrete. They retain good flexibility, and the shape of the longitudinal section ensures trouble-free insertion of wires and cables over long distances. They also guarantee easy access to electrical cables and trouble-free troubleshooting of the electrical installation during operation.

Technical data

  • Section length [m]
    50
  • Color
    Gray
  • Rated voltage [V]
    500
  • Vein designation
    numbered
  • Inner diameter [mm]
    16
  • Type
    RKLS
  • Nominal cross section [mm2]
    0.5
  • Accurate color
    Gray
  • PKWIU
    22.21.29.0
  • Number of veins
    8
  • Material
    PVC
  • Compressive strength [N]
    320
  • Core
    Bare copper conductor, twisted strand
  • Outer diameter [mm]
    20
  • Temperature range [°C]
    -20/50
  • Package weight [kg]
    0.023
  • Insulation material
    PVC Z 7225

Other technical data

  • Mounting type conductor
    With screw clamp
  • Material of holder
    Zinc/steel galvanized
  • Material of carrier
    Other
  • Material base part
    Other
  • Suitable for EX-applications
    No
  • Suitable for diameter round conductor
    5 ... 10 mm
  • Mounting type holder
    Bore hole with M thread
  • Material of saddle clamp
    Other
  • Thread size (metric)
    8

Bulk packaging

A kind of package Zwój
Quantity 1 pcs.
Weight (kg) 1,800
Volume (m3) 0,033
Width (m) 0,440
Length (m) 0,440
Depth (m) 0,170
