278743
0

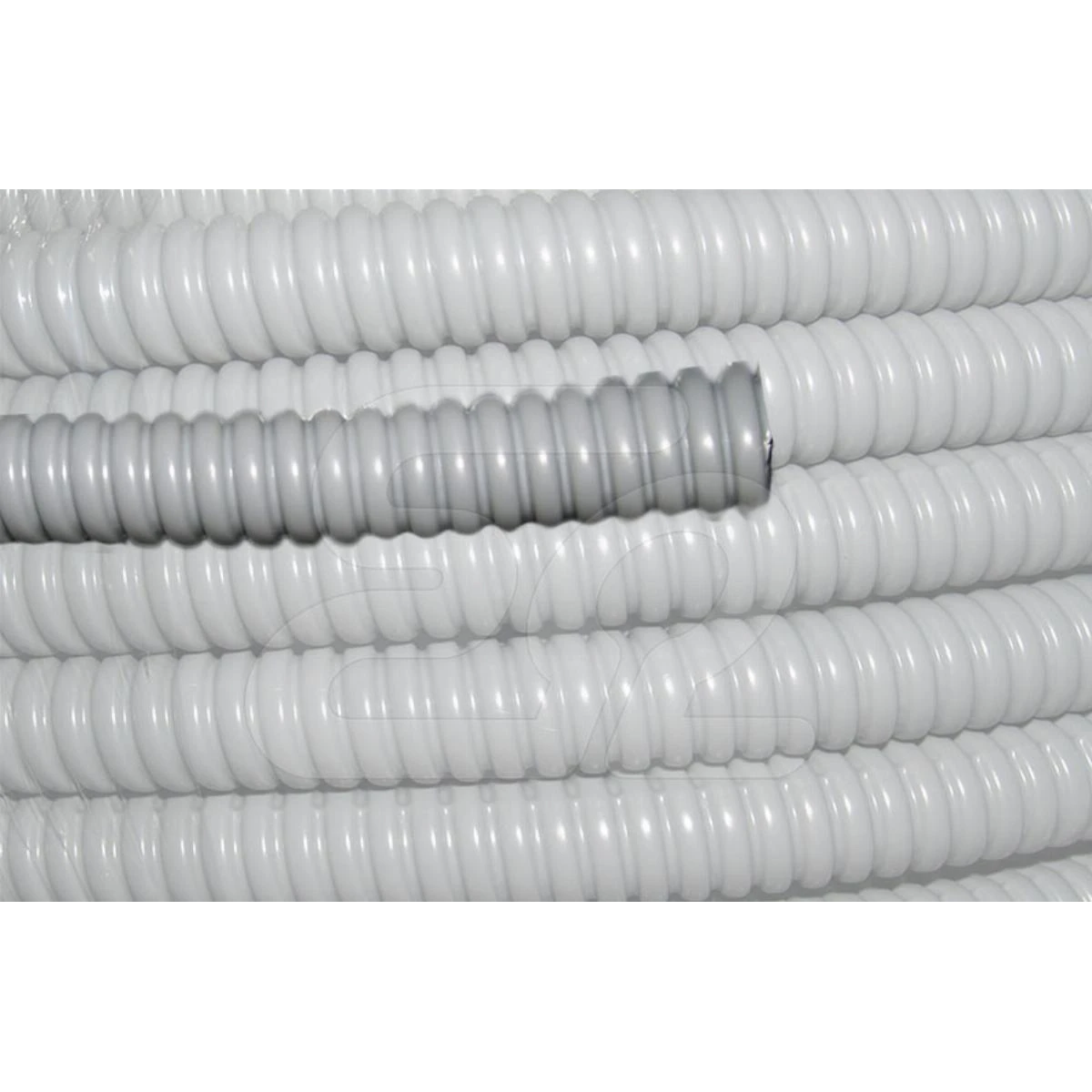

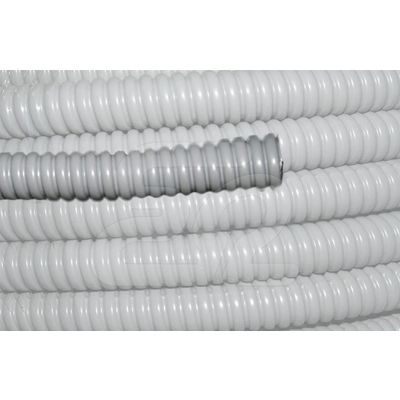

Protective flexible pipe made of galvanized steel, covered with a PVC jacket WOT 9 E03DK-10030100201
local index:
TRG046ERGO
Catalog No:
E03DK-10030100201
Price:
148,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Flexible steel pipe for the protection of wires and bundles of high mechanical strength with a sufficient degree of IP protection for dry rooms.
Intended primarily for protection against mechanical damage. It protects the installation in the event of short-term contact with hot water or steam pipes, and even with an open flame (but only against the so-called lick). Used with glands: MWO and MWE.
Technical data
-
Length [m]1
-
MaterialGalvanized steel PVC
-
Level of securityIP66
-
Outer diameter [mm]15.2
-
Compressive strength [N]1250
-
Nominal size of the fastener9
-
ColorGray
-
Bending radius [mm]40
-
Inner diameter [mm]11
-
Working temperature [°C]from -5 to +80
-
Corrosion resistanceMean
-
PKWIU25.99.29.0
Other technical data
-
Outer diameter15.2 mm
-
MaterialSteel
-
Sheathing material 1st coatingPolyvinyl chloride (PVC)
-
Compressive strength1250 N
-
Degree of protection (IP)IP66
-
Bending radius, static40 mm
-
ColourGrey
-
Electrical characteristicsNot specified
-
Suitable for EX-applicationsNo
-
Approved according to FINo
-
Inner diameter11 mm
-
Surface protectionOther
-
Sheathing material 2nd coating (exterior)Polyvinyl chloride (PVC)
-
Operating temperature-5 ... 80 °C
-
Tensile strength500 N
-
Weight0.15 kg/m
-
Suspended load capacity450 N
-
Flame acceleratingNo
-
Bending strengthFlexible
-
With approval according to ULNo
Manufacturer details
-
ManufacturerERGOM Zakład Aparatury Elektrycznej Sp. z o.o.
-
Address94-102 Łódź Nowe Sady 10
-
Phone number
-
E-mail
-
Tax identification number7260129071
-
GLN5900009930221
Bulk packaging
| A kind of package | Metr |
| Quantity | 1 pcs. |
| Weight (kg) | 7,660 |
| Width (m) | 0,010 |
| Length (m) | 0,010 |
| Depth (m) | 0,010 |
