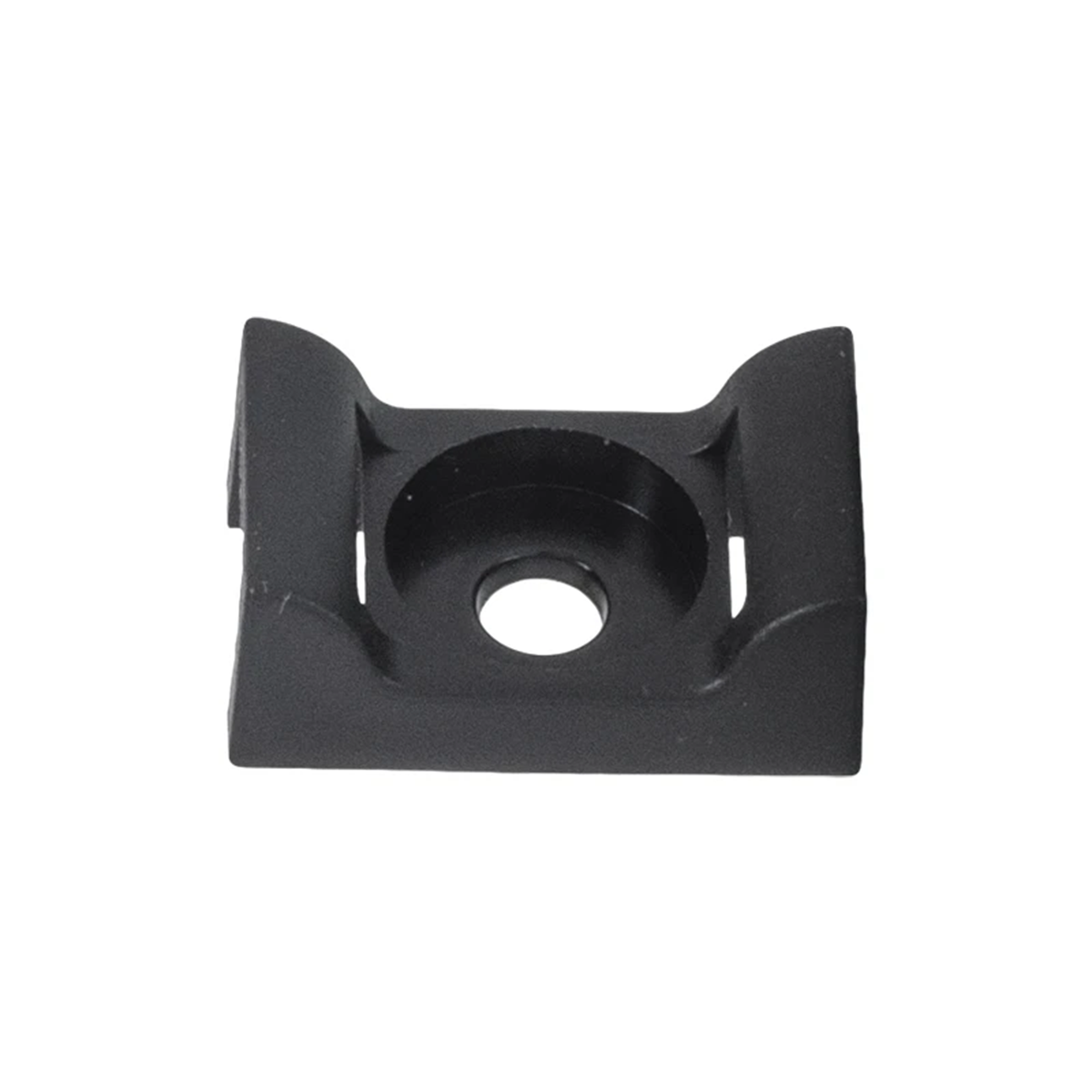

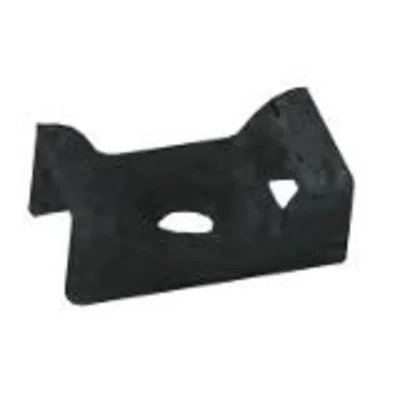

PMP-05-4-UV-100 mounting bases 25.254
local index:
TAP097ELOP
Catalog No:
25.254
EAN code:
5905548281100
Price:
4,61 €
gross / pkg.
(including VAT 23%)
0,05 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Extending the use of traditional clamps a wide range of bases for attaching clamps to any surface made of self-extinguishing and halogen-free material.

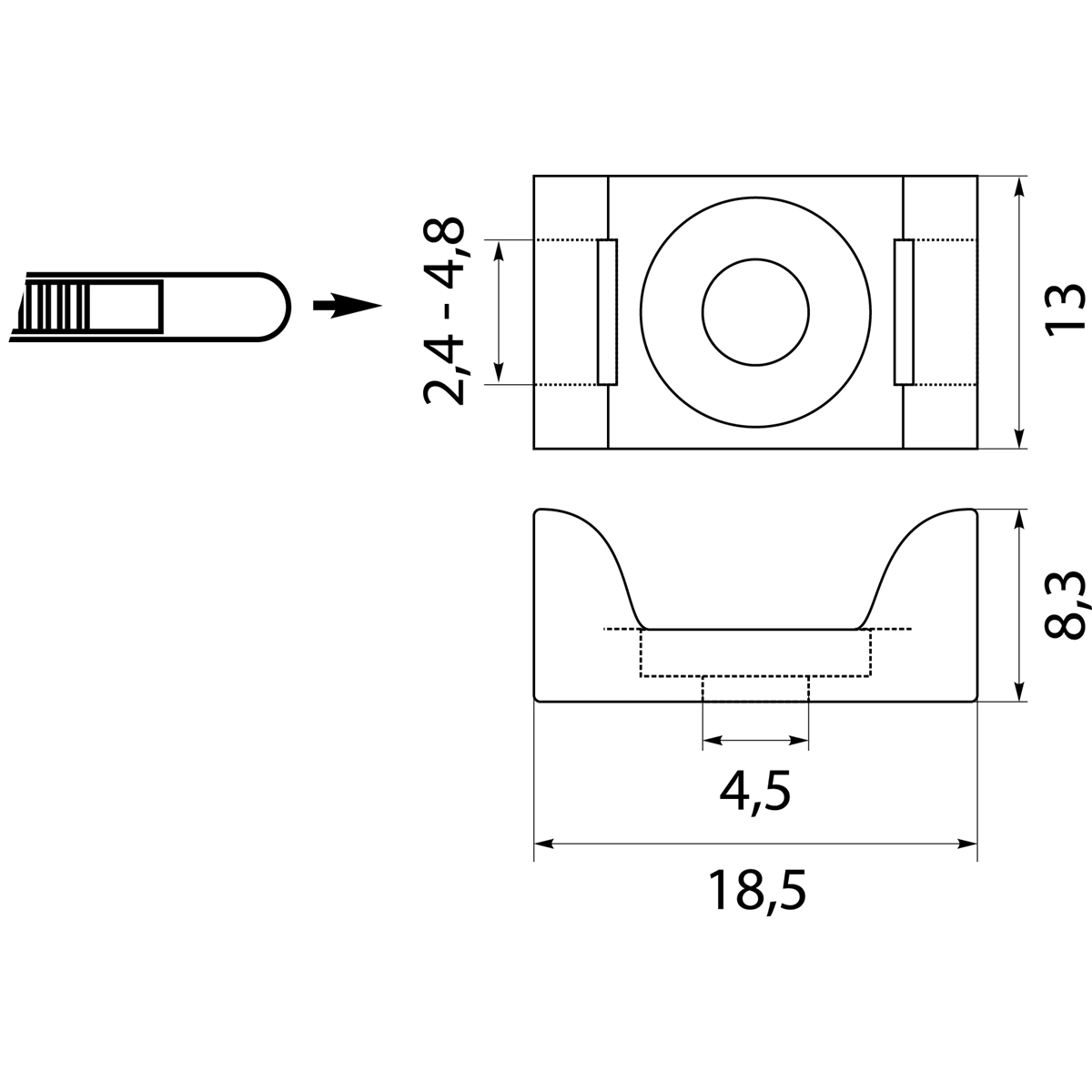

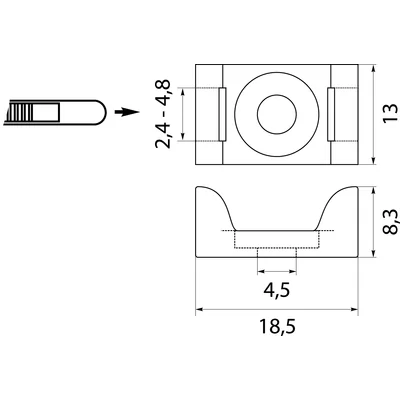

Technical data
-
Width [mm]18.5
-
PKWIU27.33.14.0
-
Pieces in the package100
Other technical data
-
Length13 mm
-
Height18.5 mm
-
For max. bundle diameter2 mm
-
Diameter mounting hole4.2 mm
-
Material qualityPolyamide flame retardant
-
ColourBlack
-
Width8.5 mm
-
Suitable for cable tie width to4.8 mm
-
Type of fasteningGlue and screw
-
MaterialPlastic
-
Operating temperature-25 ... 60 °C
Manufacturer details
-
ManufacturerZ.P.H.ELEKTRO-PLAST SP.Z O.O.
-
Address62-860 UL.ROGATKA 14
-
E-mail
-
Tax identification number9680893101
Bulk packaging
| A kind of package | Paczka | |
| Quantity | 1 pkg. | 1 pkg. |
| Weight (kg) | 0,100 | 0,002 |
| Width (m) | - | 0,030 |
| Length (m) | - | 0,170 |
| Depth (m) | - | 0,110 |
