PMP-05-4-100 mounting feet 25.250

local index:
TAP096ELOP
Catalog No:
25.250
EAN code:
5905548281094
Width [mm]: 9
Pieces in the package: 100
Price:
4,42 €
gross / pkg.
(including VAT 23%)
0,04 € gross/pcs.
Delivery in 3h
Accessible 57 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

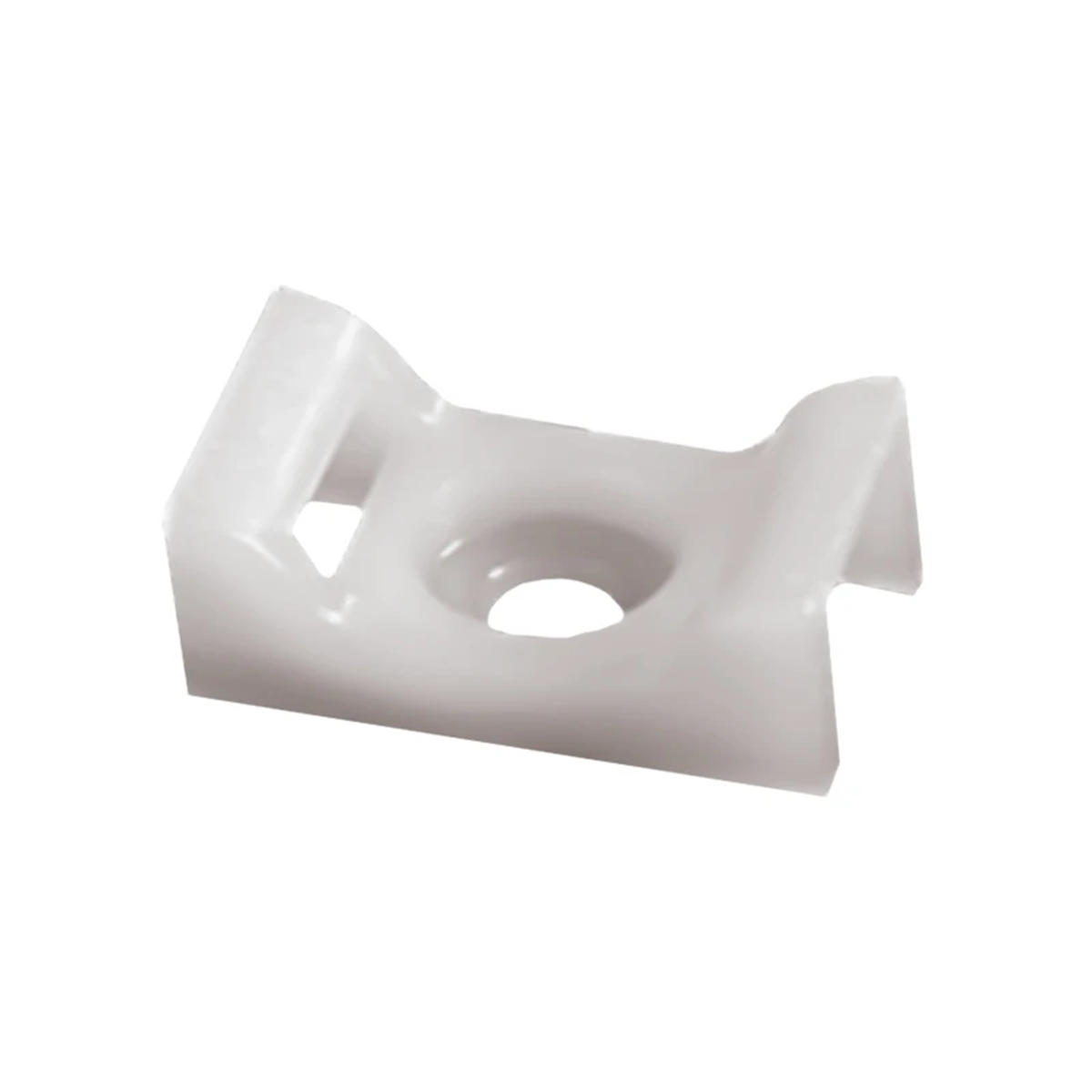

Product description

Extending the use of traditional clamps a wide range of bases for attaching clamps to any surface made of self-extinguishing and halogen-free material.

Technical data

  • Width [mm]
    9
  • PKWIU
    27.33.14.0
  • Pieces in the package
    100

Other technical data

  • Length
    13 mm
  • Height
    18.5 mm
  • For max. bundle diameter
    2 mm
  • Diameter mounting hole
    4.2 mm
  • Material quality
    Polyamide flame retardant
  • Colour
    White
  • Width
    8.5 mm
  • Suitable for cable tie width to
    4.8 mm
  • Type of fastening
    Glue and screw
  • Material
    Plastic
  • Operating temperature
    -25 ... 60 °C

Bulk packaging

A kind of package Paczka
Quantity 1 pkg. 1 pkg.
Weight (kg) 0,100 0,002
Width (m) - 0,030
Length (m) - 0,150
Depth (m) - 0,110
