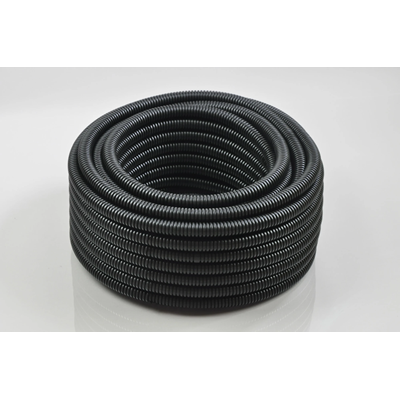

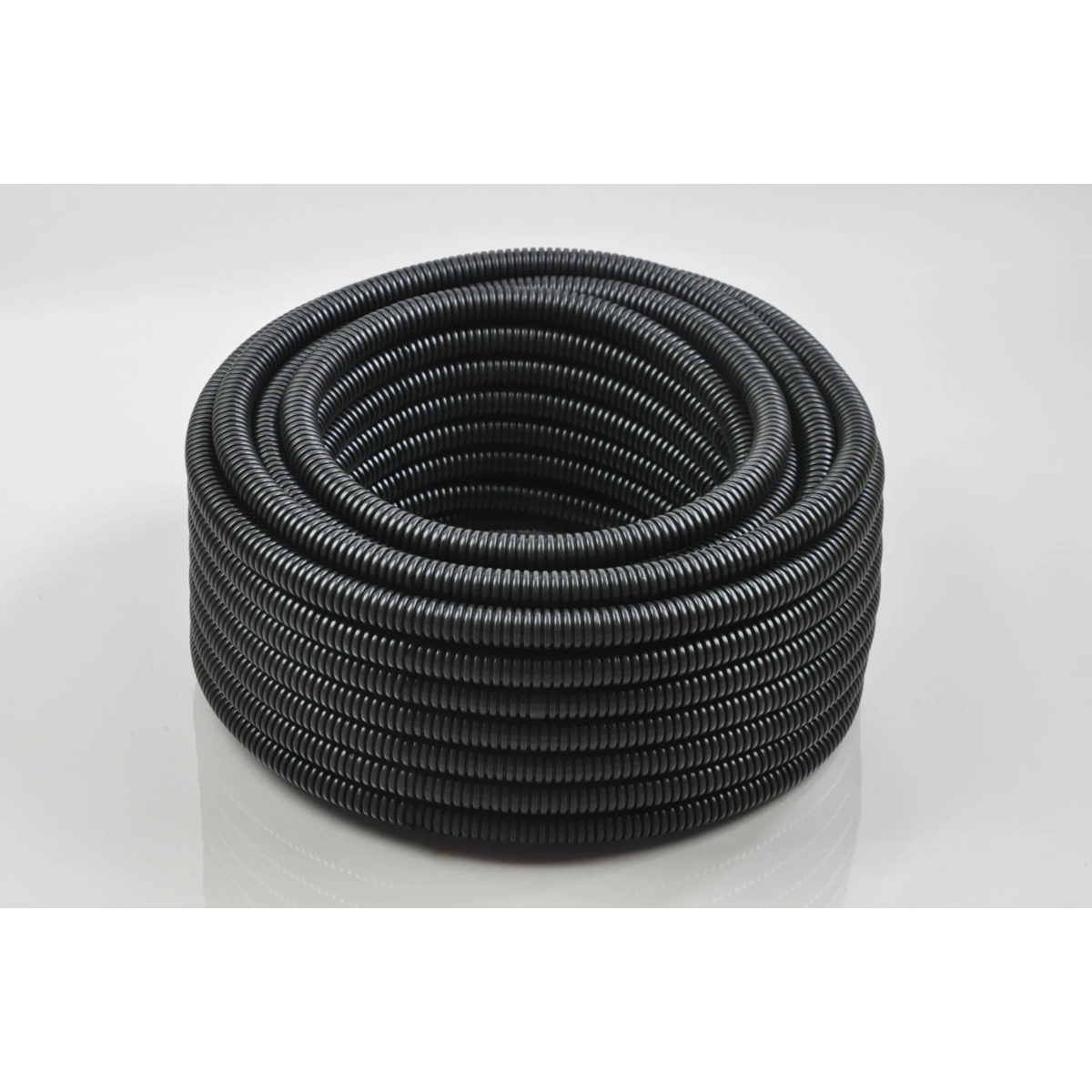

Pipe, flexible corrugated diameter 28/23mm PVC UV 320N 50m 05.105

Indice locale:
TRG008ELST
Numero di catalogo:
05.105
Codice EAN:
5907760076199
Length [m]: 50
Color: Gray
Compressive strength [N]: 320
Prezzo:
36,30 €
gross / pezzi
(inclusa IVA 23%)
0,73 € gross/metro
Consegna in 3 ore
Accessibile 11 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

RKLGV, RKSGV flexible (corrugated) pipes made of PVC modified with a UV stabilizer are designed to protect electrical installations in construction and industry against mechanical factors, moisture, temperature and UV radiation. They are used in places with increased fire risk (attics, attics), and in installations carried out outside buildings due to the UV stabilizer used to protect the product against harmful UV radiation for a moderate climate.

Dati tecnici

  • Length [m]
    50
  • Compressive strength [N]
    320
  • Outer diameter [mm]
    28
  • Accurate color
    Gray
  • Color
    Gray
  • Inner diameter [mm]
    23
  • Type
    Flexible corrugated pipe
  • PKWIU
    22.21.29.0

Altri dati tecnici

  • Nominal diameter
    28 mm
  • Outer diameter
    28 mm
  • Material
    Polyvinyl chloride (PVC)
  • Operating temperature
    -25 ... 60 °C
  • Fire resistance according to UL94
    HB
  • Oil resistant
    Yes
  • Sheathing material
    Not sheathed
  • Bending strength
    Pliable
  • Closable (two-part)
    No
  • Approved according to DIN EN 61386-23
    No
  • Certyfikat Vd TÜV/GGVS
    No
  • Approved according to LUL/British Standard
    No
  • Approved according to UTAC
    No
  • Approved according to NF F 16-101
    No
  • High conducting inner coating
    No
  • Nominal size in inch
    Other
  • Inner diameter
    23 mm
  • Compressive strength
    320 N
  • Degree of protection (IP)
    Other
  • UV resistant
    Yes
  • Colour
    Black
  • Flame accelerating
    Yes
  • Lengthwise slotted
    No
  • Halogen free
    No
  • Approved according to UR
    No
  • Approved according to CSA
    No
  • Approved according to Lloyd's Register TA
    No
  • Certyfikat DIN 5510
    No
  • With draw wire
    No

Dettagli del produttore

  • Produttore
    ELEKTROPLAST SP. Z O.O.
  • Indirizzo
    32-431 Stróża Stróża 1015 Polska
