Pipe, flexible, corrugated, diameter 22/18mm, polyethylene, black, split 04.12

Místní index:
TRG075ELST
Katalogové číslo.:
04.12
EAN kód:
5907760076137
Length [m]: 50
Color: Black
Material: Polyethylene
Cena:
38,44 €
gross / kusů.
(včetně DPH 23%)
0,77 € gross/bm.
Dodání do 3 hodin
do jednoho týdne (pracovní dny)
Vyzvednutí za 1h
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

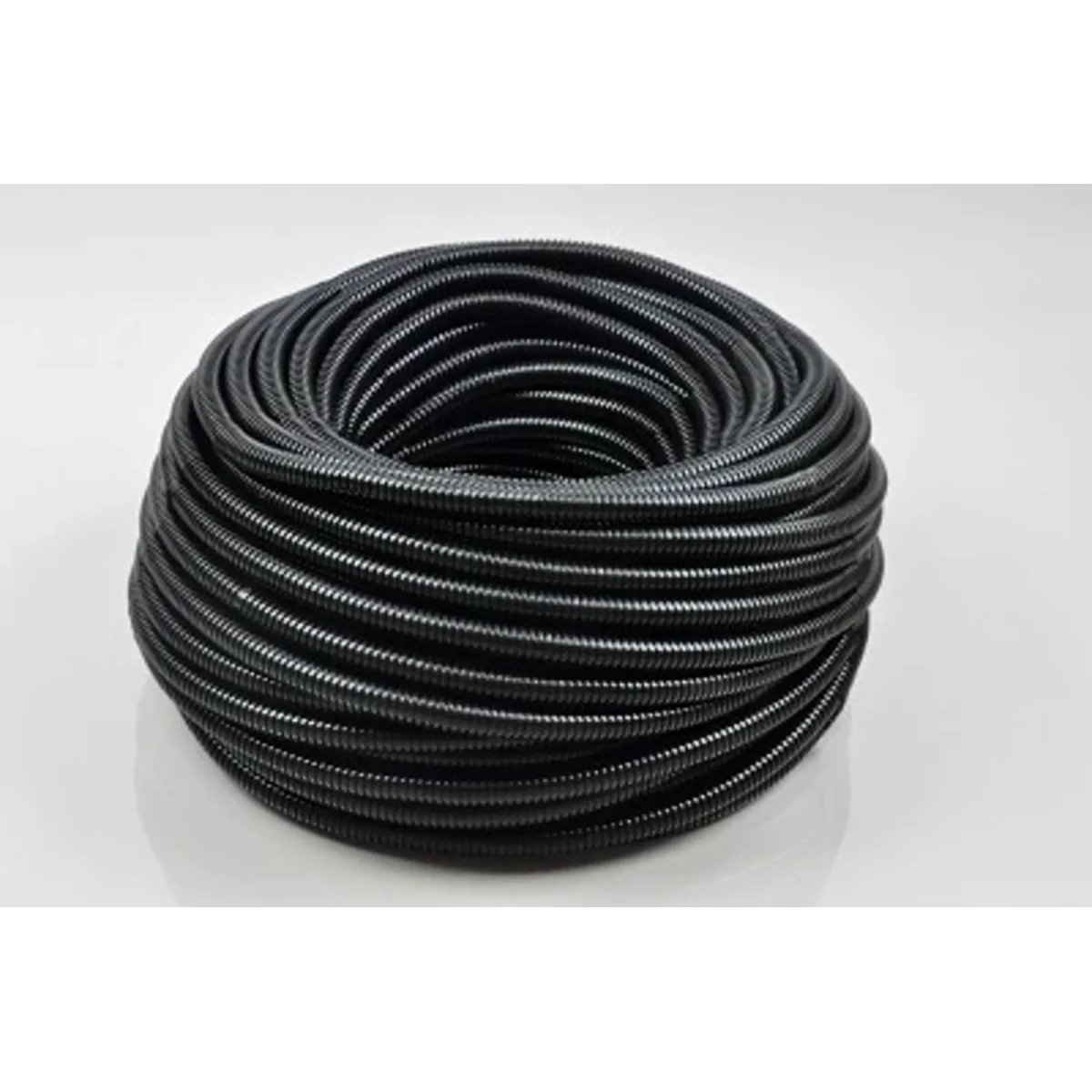

Flexible (corrugated-black) RKLGF pipes are casing pipes designed to protect electrical wires against mechanical damage (the pipe bends under the influence of the force acting on it, but does not break) and against moisture. Flexible (corrugated-black) RKLGF pipes made of LDPE polyethylene (low density polyethylene) are combustible pipes with good dielectric properties in a fairly wide range of temperatures. Thanks to the extremely low water absorption, their dielectric properties do not change when staying in a humid environment.

Technické údaje

  • Length [m]
    50
  • Material
    Polyethylene
  • Outer diameter [mm]
    22
  • Accurate color
    Black
  • Color
    Black
  • Inner diameter [mm]
    18
  • Type
    Flexible corrugated pipe
  • PKWIU
    22.21.29.0

Další technické údaje

  • Nominal diameter
    22 mm
  • Outer diameter
    22 mm
  • Material
    Polietylen
  • Operating temperature
    -30 ... 60 °C
  • Fire resistance according to UL94
    HB
  • UV resistant
    Yes
  • Colour
    Black
  • Flame accelerating
    Yes
  • Lengthwise slotted
    Yes
  • Halogen free
    No
  • Approved according to UR
    No
  • Approved according to CSA
    No
  • Approved according to Lloyd's Register TA
    No
  • Certyfikat DIN 5510
    No
  • With draw wire
    No
  • Nominal size in inch
    Other
  • Inner diameter
    18 mm
  • Compressive strength
    125 N
  • Degree of protection (IP)
    Other
  • Bending radius, static
    60 mm
  • Oil resistant
    Yes
  • Sheathing material
    Not sheathed
  • Bending strength
    Pliable
  • Closable (two-part)
    No
  • Approved according to DIN EN 61386-23
    No
  • Certyfikat Vd TÜV/GGVS
    No
  • Approved according to LUL/British Standard
    No
  • Approved according to UTAC
    No
  • Approved according to NF F 16-101
    No
  • High conducting inner coating
    No
