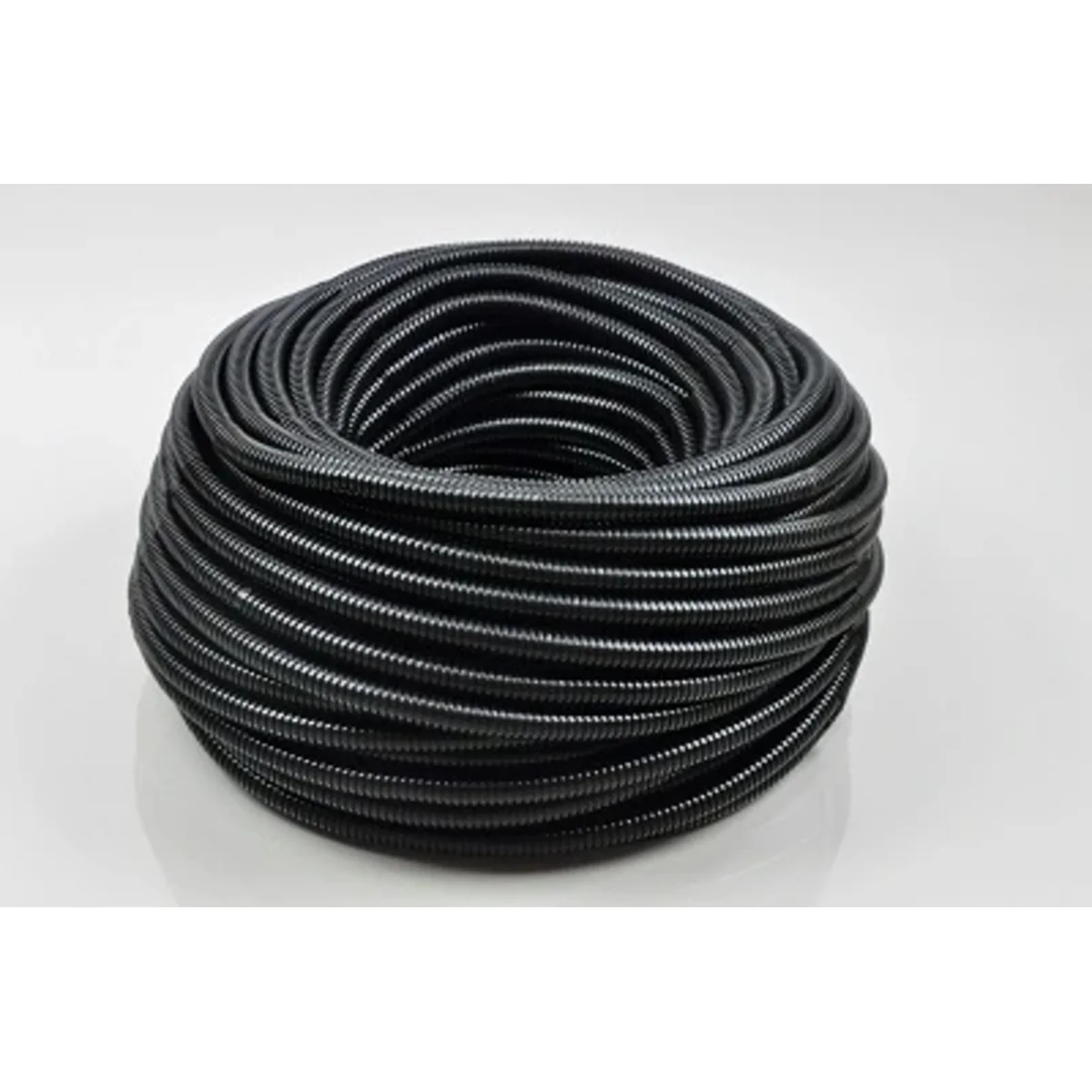

Pipe, flexible, corrugated, diameter 18/13.5mm, polyethylene, black 04.7

Index local:
TRG003ELST
Numéro de catalogue:
04.7
Code EAN:
5907760071408
Color: Black
Material: Polyethylene
Inner diameter [mm]: 13.5
Prix:
100,90 zł
gross / pcs.
(y compris la TVA 23%)
Accessible 22 pcs.
Ramassage en 1h
Livraison en 3h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Flexible (corrugated-black) RKLGF pipes are casing pipes designed to protect electrical wires against mechanical damage (the pipe bends under the influence of the force acting on it, but does not break) and against moisture. Flexible (corrugated-black) RKLGF pipes made of LDPE polyethylene (low density polyethylene) are combustible pipes with good dielectric properties in a fairly wide range of temperatures. Thanks to the extremely low water absorption, their dielectric properties do not change when staying in a humid environment.

Données techniques

  • Color
    Black
  • Inner diameter [mm]
    13.5
  • Type
    Flexible corrugated pipe
  • PKWIU
    22.21.29.0
  • Material
    Polyethylene
  • Outer diameter [mm]
    18
  • Accurate color
    Black

Autres données techniques

  • Nominal diameter
    18 mm
  • Outer diameter
    18 mm
  • Material
    Polietylen
  • Operating temperature
    -30 ... 60 °C
  • Fire resistance according to UL94
    HB
  • UV resistant
    Yes
  • Colour
    Black
  • Flame accelerating
    Yes
  • Lengthwise slotted
    No
  • Halogen free
    No
  • Approved according to UR
    No
  • Approved according to CSA
    No
  • Approved according to Lloyd's Register TA
    No
  • Certyfikat DIN 5510
    No
  • With draw wire
    No
  • Nominal size in inch
    Other
  • Inner diameter
    13.5 mm
  • Compressive strength
    125 N
  • Degree of protection (IP)
    Other
  • Bending radius, static
    48 mm
  • Oil resistant
    Yes
  • Sheathing material
    Not sheathed
  • Bending strength
    Pliable
  • Closable (two-part)
    No
  • Approved according to DIN EN 61386-23
    No
  • Certyfikat Vd TÜV/GGVS
    No
  • Approved according to LUL/British Standard
    No
  • Approved according to UTAC
    No
  • Approved according to NF F 16-101
    No
  • High conducting inner coating
    No

Détails du fabricant

  • Producteur
    ELEKTROPLAST SP. Z O.O.
  • Adresse
    32-431 Stróża Stróża 1015 Polska
