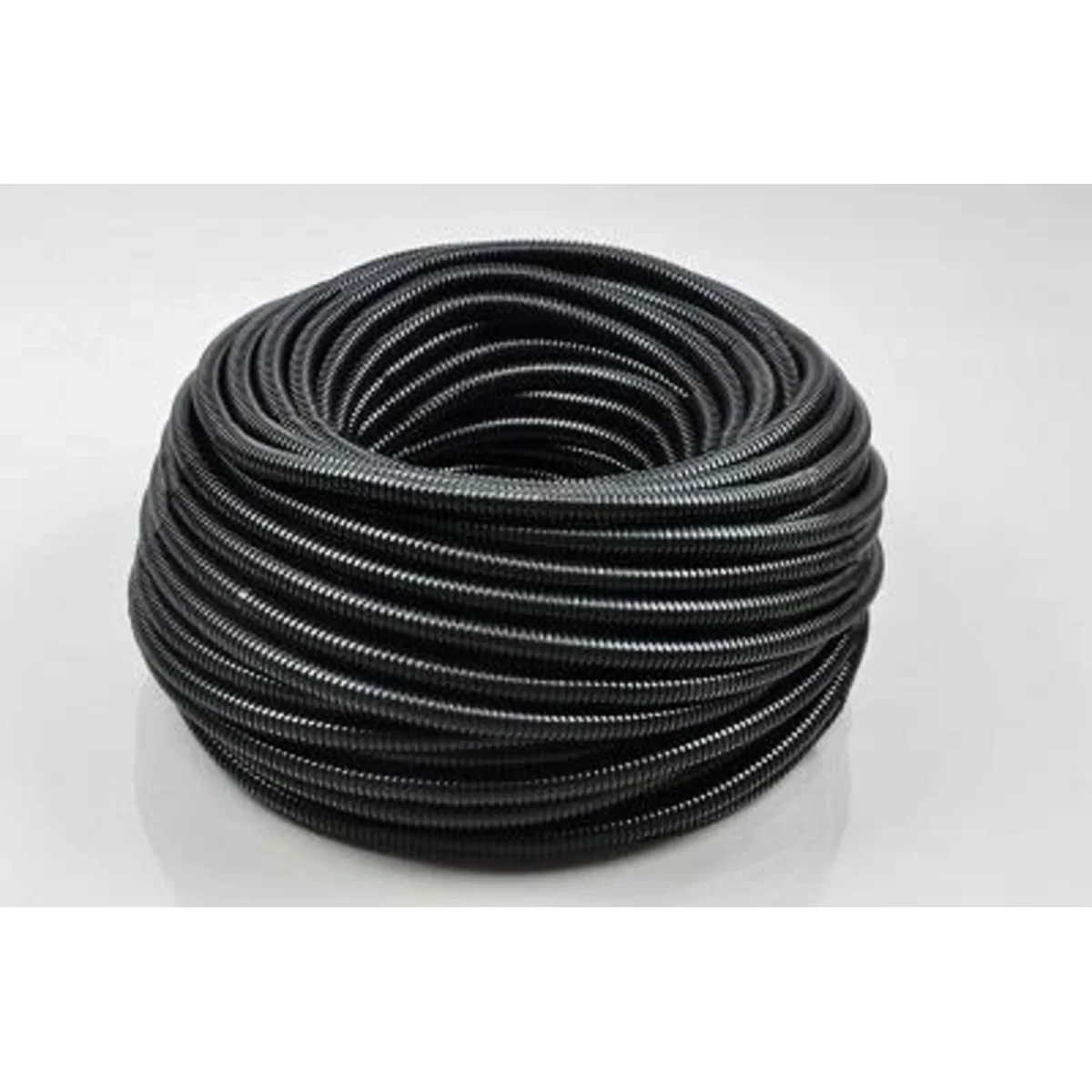

Pipe, flexible, corrugated, diameter 14/11mm, polyethylene, black 04.5

local index:
TRG002ELST
Catalog No:
04.5
EAN code:
5907760071378
Color: Black
Material: Polyethylene
Inner diameter [mm]: 9
Price:
16,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 12 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


Flexible (corrugated-black) RKLGF pipes are protective pipes designed to protect electrical wires against mechanical damage (the pipe bends under the influence of force, but does not break) and moisture. Flexible (corrugated-black) RKLGF pipes made of LDPE polyethylene (low density polyethylene) are combustible pipes with good dielectric properties in a fairly wide range of temperatures. Thanks to the extremely low water absorption, their dielectric properties do not change when staying in a humid environment. They are dyed black by the manufacturer with a high-quality dye containing P-type carbon black in the amount of (2-2.4)%, which significantly increases their resistance to UV radiation.


When applying this of the pipe type, environments with strong oxidants, solvents (chlorinated aro solvents), direct sunlight should be avoided.


Standard pipes are produced in two types: whole and cut. Sections: 10, 12, 14, 18, 20, 22-type whole and split lengthwise in 100m rolls.

Section: 28-inch lengthwise cut lengthwise in rolls of 50m, 34-inch in rolls of 50m, 43-inch in 50m reels.

Technical data

  • Color
    Black
  • Inner diameter [mm]
    9
  • Type
    Flexible corrugated pipe
  • PKWIU
    22.21.29.0
  • Material
    Polyethylene
  • Outer diameter [mm]
    12
  • Accurate color
    Black

Other technical data

  • Nominal diameter
    14 mm
  • Outer diameter
    14 mm
  • Material
    Polietylen
  • Operating temperature
    -30 ... 60 °C
  • Fire resistance according to UL94
    HB
  • UV resistant
    Yes
  • Colour
    Black
  • Flame accelerating
    Yes
  • Lengthwise slotted
    No
  • Halogen free
    No
  • Approved according to UR
    No
  • Approved according to CSA
    No
  • Approved according to Lloyd's Register TA
    No
  • Certyfikat DIN 5510
    No
  • With draw wire
    No
  • Nominal size in inch
    Other
  • Inner diameter
    11 mm
  • Compressive strength
    125 N
  • Degree of protection (IP)
    Other
  • Bending radius, static
    48 mm
  • Oil resistant
    Yes
  • Sheathing material
    Not sheathed
  • Bending strength
    Pliable
  • Closable (two-part)
    No
  • Approved according to DIN EN 61386-23
    No
  • Certyfikat Vd TÜV/GGVS
    No
  • Approved according to LUL/British Standard
    No
  • Approved according to UTAC
    No
  • Approved according to NF F 16-101
    No
  • High conducting inner coating
    No
