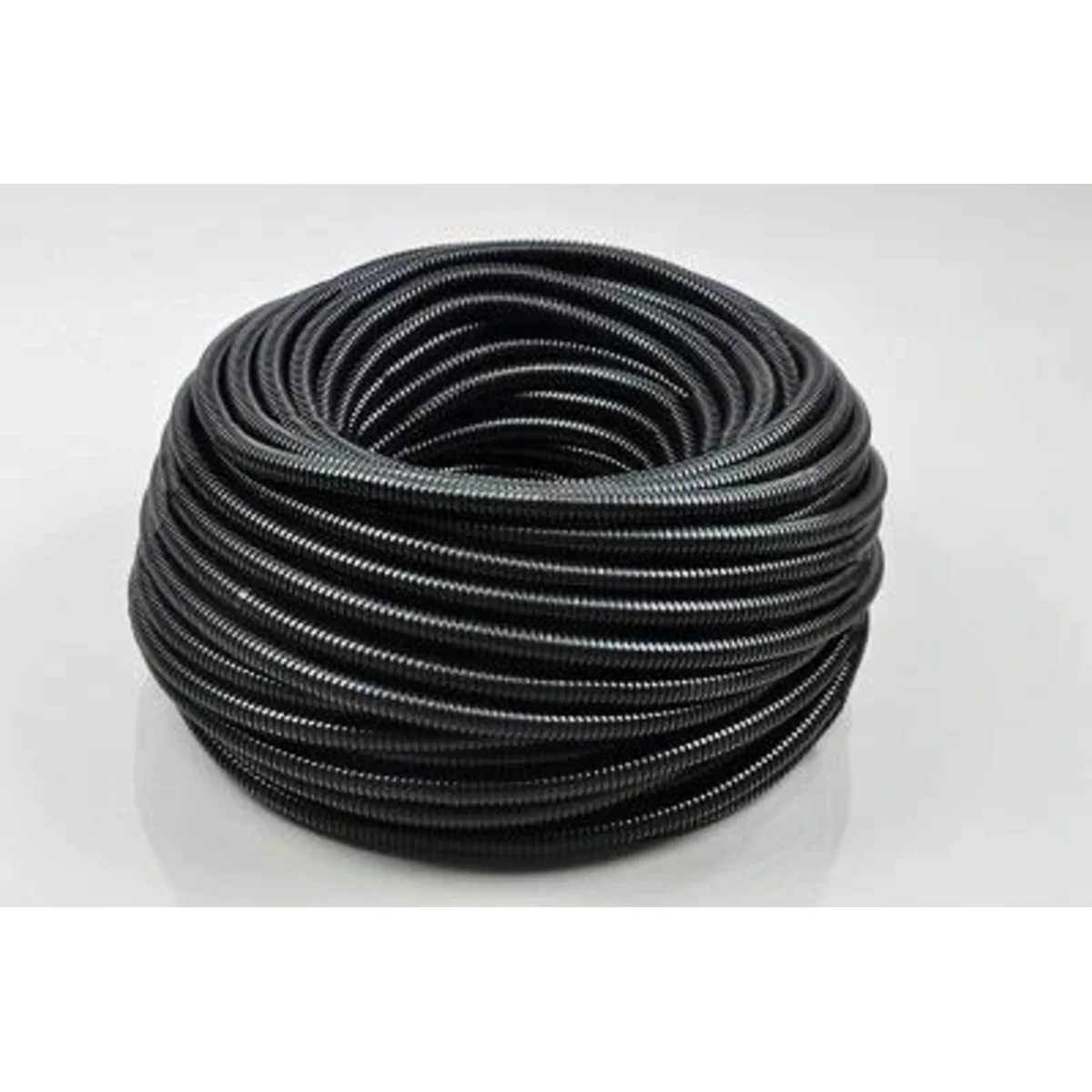

Pipe, flexible, corrugated, diameter 10/7mm, polyethylene, black 04.1

Index local:
TRG001ELST
Numéro de catalogue:
04.1
Code EAN:
5907760071323
Length [m]: 50
Color: Black
Material: Polyethylene
Prix:
11,34 €
gross / pcs.
(y compris la TVA 23%)
0,23 € gross/mc.
Livraison en 3h
Accessible 10 pcs.
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Flexible (corrugated-black) RKLGF pipes are protective pipes designed to protect electrical wires against mechanical damage (the pipe bends under the influence of force, but does not break) and moisture. Flexible (corrugated-black) RKLGF pipes made of LDPE polyethylene (low density polyethylene) are combustible pipes with good dielectric properties in a fairly wide range of temperatures. Thanks to the extremely low water absorption, their dielectric properties do not change when staying in a humid environment.

Données techniques

  • Length [m]
    50
  • Material
    Polyethylene
  • Outer diameter [mm]
    10
  • Accurate color
    Black
  • Color
    Black
  • Inner diameter [mm]
    7
  • Type
    Flexible corrugated pipe
  • PKWIU
    22.21.29.0

Autres données techniques

  • Nominal diameter
    10 mm
  • Outer diameter
    10 mm
  • Material
    Polietylen
  • Operating temperature
    -30 ... 60 °C
  • Fire resistance according to UL94
    HB
  • UV resistant
    Yes
  • Colour
    Black
  • Flame accelerating
    Yes
  • Lengthwise slotted
    No
  • Halogen free
    No
  • Approved according to UR
    No
  • Approved according to CSA
    No
  • Approved according to Lloyd's Register TA
    No
  • Certyfikat DIN 5510
    No
  • With draw wire
    No
  • Nominal size in inch
    Other
  • Inner diameter
    7 mm
  • Compressive strength
    125 N
  • Degree of protection (IP)
    Other
  • Bending radius, static
    30 mm
  • Oil resistant
    Yes
  • Sheathing material
    Not sheathed
  • Bending strength
    Pliable
  • Closable (two-part)
    No
  • Approved according to DIN EN 61386-23
    No
  • Certyfikat Vd TÜV/GGVS
    No
  • Approved according to LUL/British Standard
    No
  • Approved according to UTAC
    No
  • Approved according to NF F 16-101
    No
  • High conducting inner coating
    No

Détails du fabricant

  • Producteur
    ELEKTROPLAST SP. Z O.O.
  • Adresse
    32-431 Stróża Stróża 1015 Polska
