el12 Running cables and wires Accessories for cables and wires Handles for routing cables and wires Mounting feet PMP-03-3-100
Mounting feet PMP-03-3-100
Mounting feet PMP-03-3-100

Click on the photo to enlarge

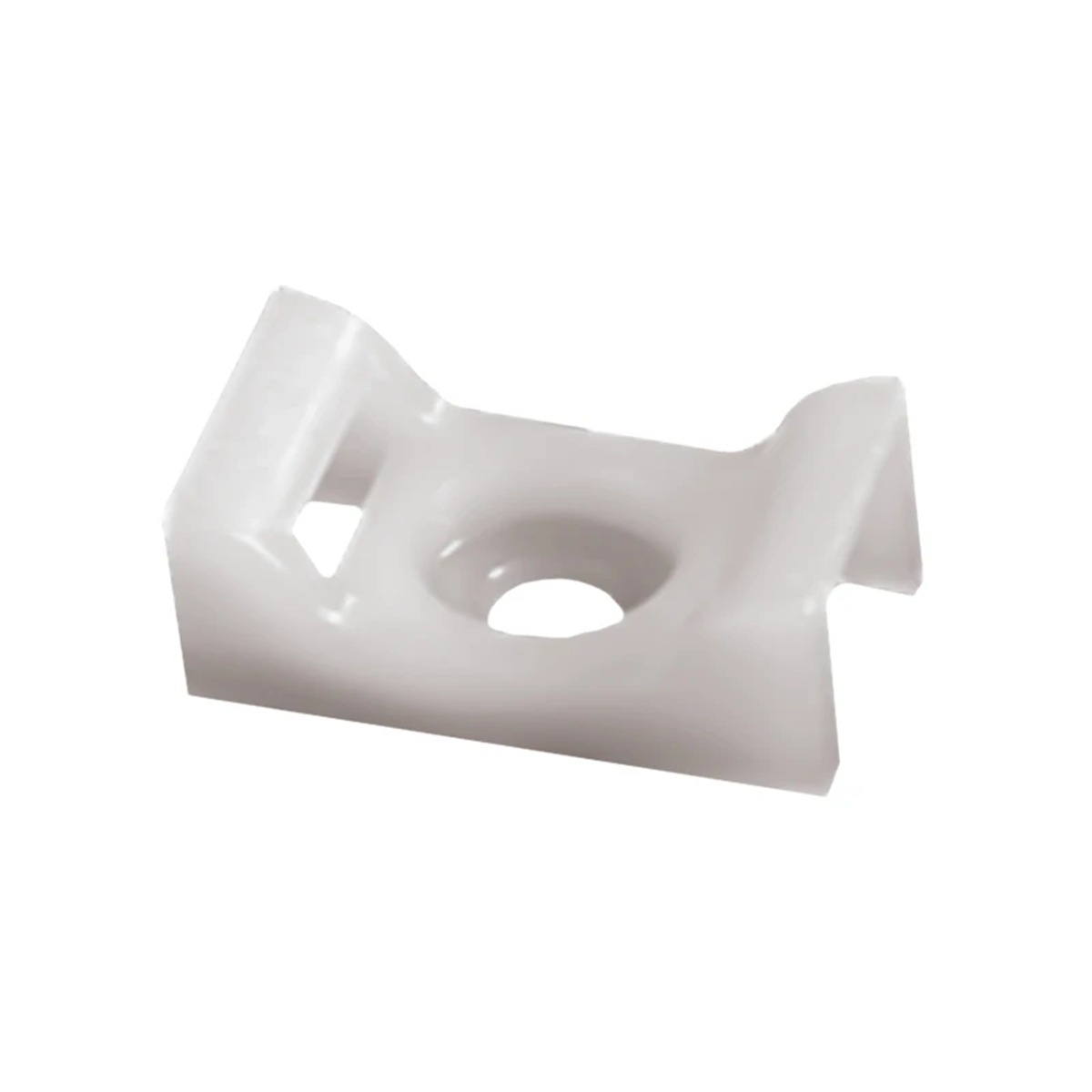

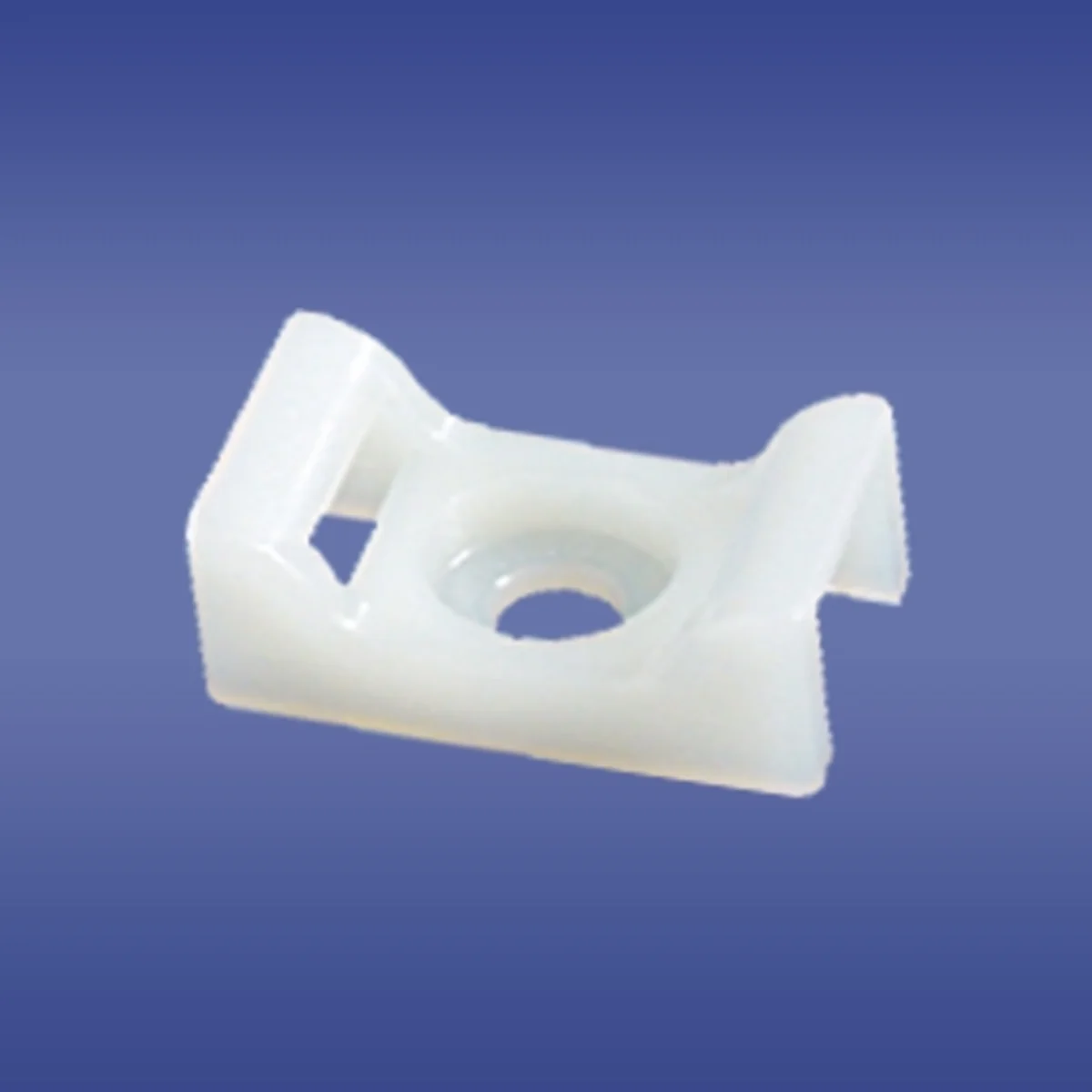

Mounting feet PMP-03-3-100
Mounting feet PMP-03-3-100
ELEKTRO-PLAST OPATÓWEK

Mounting feet PMP-03-3-100 25.230.

local index:
TAP023ELOP
Catalog No:
25.230.
EAN code:
5905548281070
Price:
3,60 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

PMP screw bases
screwed to the wall or structure
The PMP base is screwed to the wall or structure with a screw. Then thread the cable tie through the holes provided for this purpose in the base and clamp the cable tie together. Depending on the type of the base, bands up to 9.0 mm wide can be used.
Print the product sheet Report an error

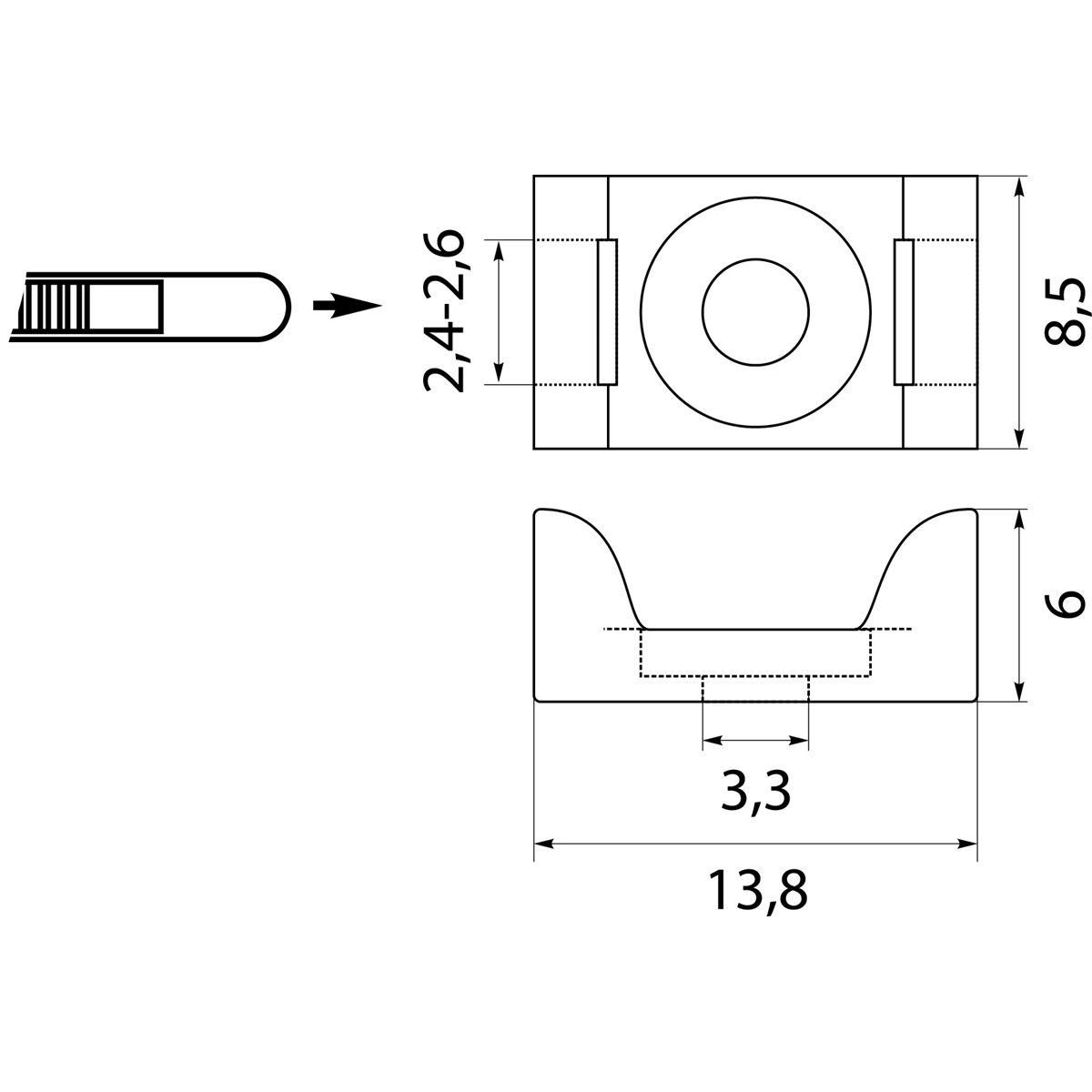

Technical data

  • Length [mm]
    13.8
  • Pieces in the package
    100
  • Width [mm]
    8.5
  • Height [mm]
    3

Other technical data

  • Length
    13.8 mm
  • Height
    6 mm
  • For max. bundle diameter
    1 mm
  • Diameter mounting hole
    3.3 mm
  • Material quality
    Polyamide flame retardant
  • Colour
    White
  • Width
    8.5 mm
  • Suitable for cable tie width to
    2.6 mm
  • Type of fastening
    Glue and screw
  • Material
    Plastic
  • Operating temperature
    -25 ... 60 °C
