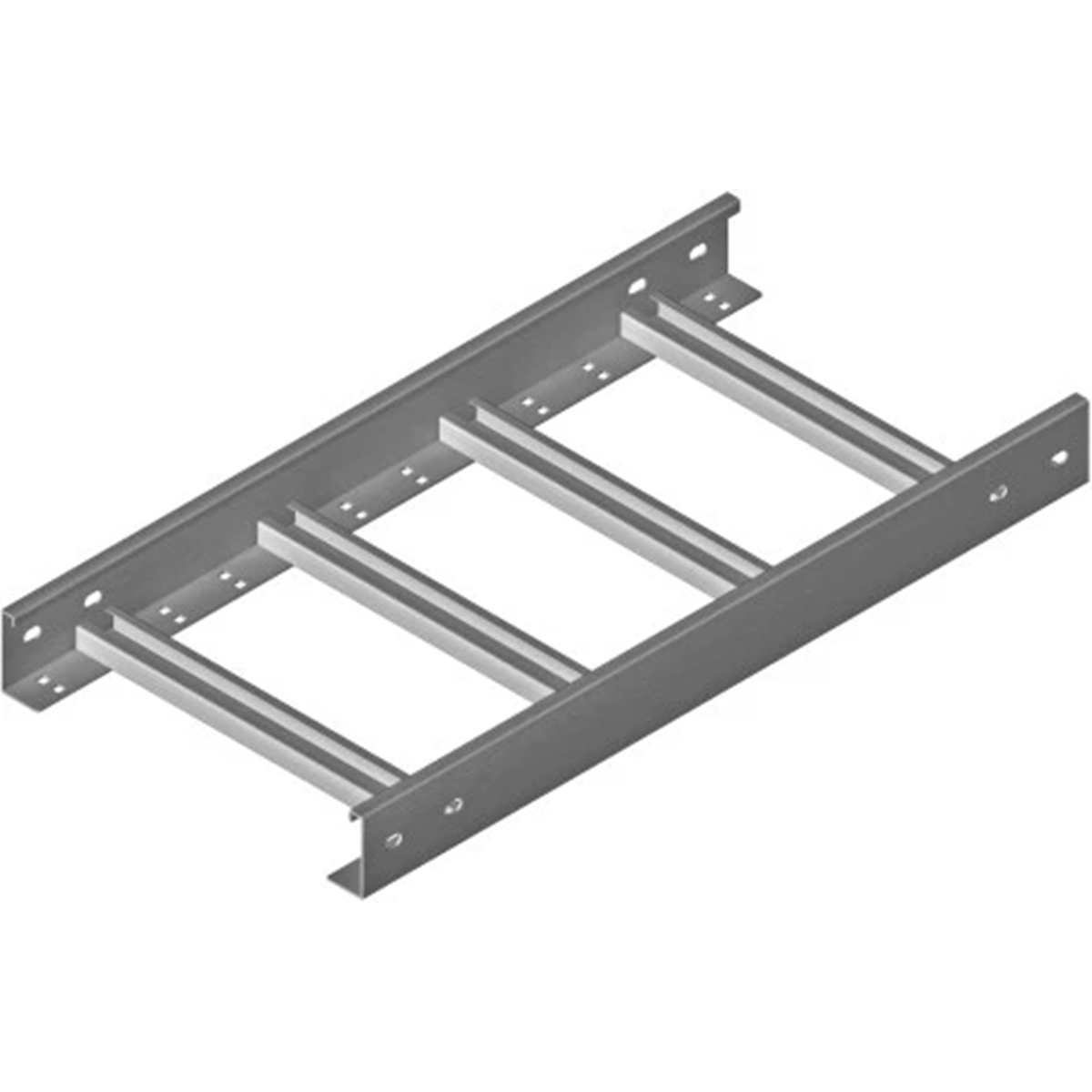

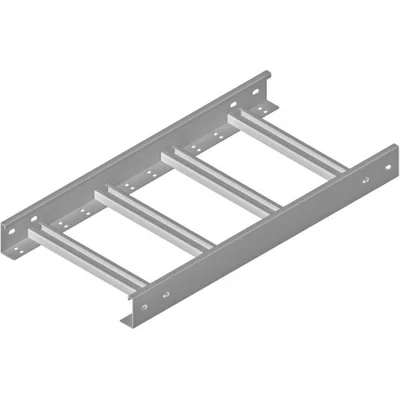

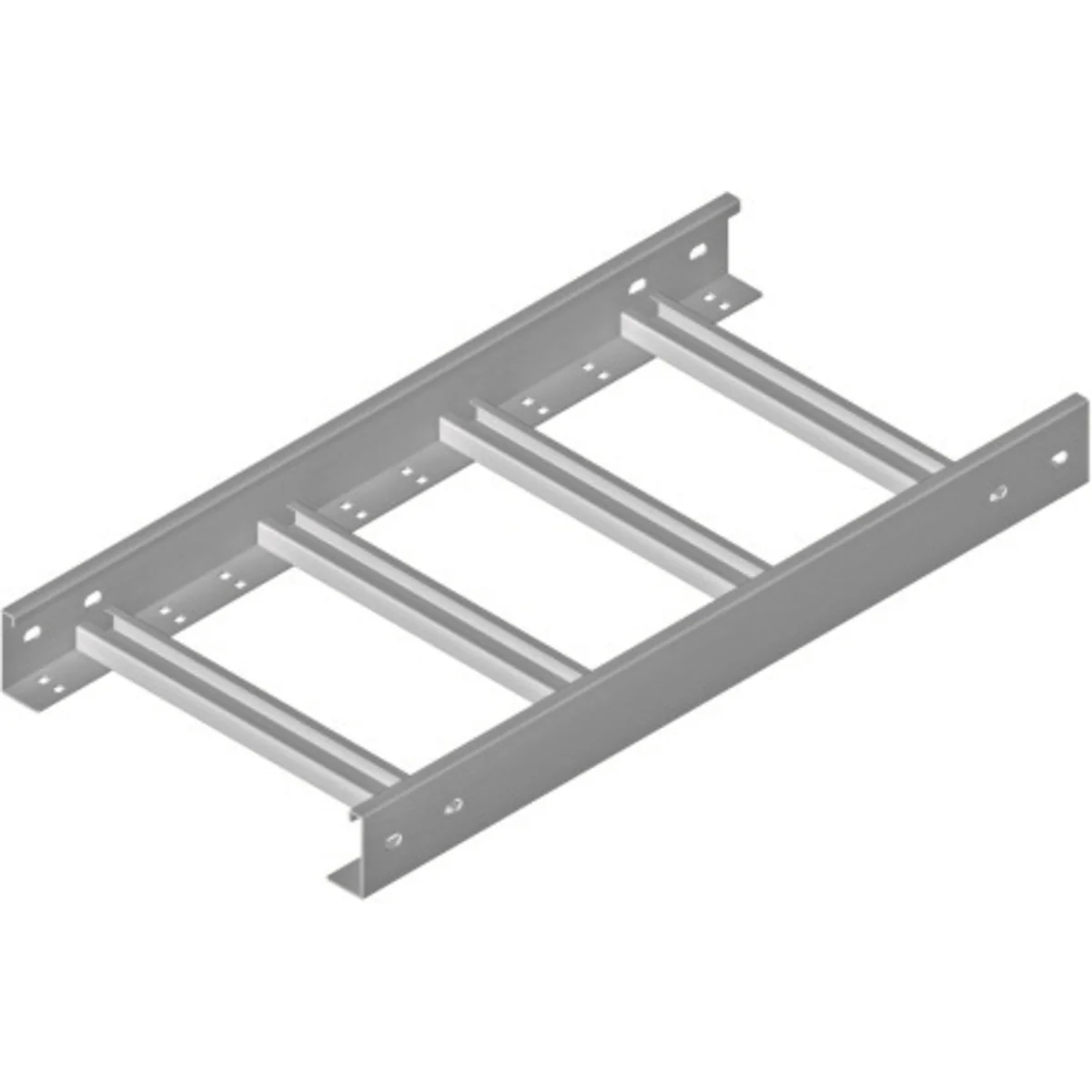

Ladder DGODN DGOD300H60/3N 867030

local index:
TKM653BAKS
Catalog No:
867030
EAN code:
5900993108583
Manufacturer: BAKS
weight [kg/100m]: 247
Length [mm]: 3000
Sheet thickness [mm]: 1.2
Large-size product
Price:
38,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Application: Running a cable route.

Material: Sendzimir galvanized steel PN-EN 10346:2011.

On request: L- powder coating in any color

  • to connect 2 ladders, use 2 ladder connectors LDC/LDOCH60 and 8 sets of screws SGKM8×14
  • to change the vertical direction of the cable route from ladders, use 2 articulated connectors of ladders LGC/LGOCH60 and 8 sets of screws SGKM8×14
  • to change the horizontal direction of the cable route from ladders, use 2 LKD/LKDOCH60 ladder angle connectors and 8 sets of SGKM8×14 screws

Maximum load: 20 kg/m
Maximum support: 1.5 m

Technical data

  • weight [kg/100m]
    247
  • Sheet thickness [mm]
    1.2
  • Width [mm]
    300
  • PKWIU
    25.11.23.0
  • Length [mm]
    3000
  • Material
    galvanized steel
  • Type
    DGOD300H60/3N
