ISO Mounting Bracket 10/10.4 light grey 262272

local index:
TAP078HAUP
Catalog No:
262272
EAN code:
4011923501433
Manufacturer: HAUPA
Color: Gray
Material: PE
Opening width [mm]: 9.3
Price:
2,99 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

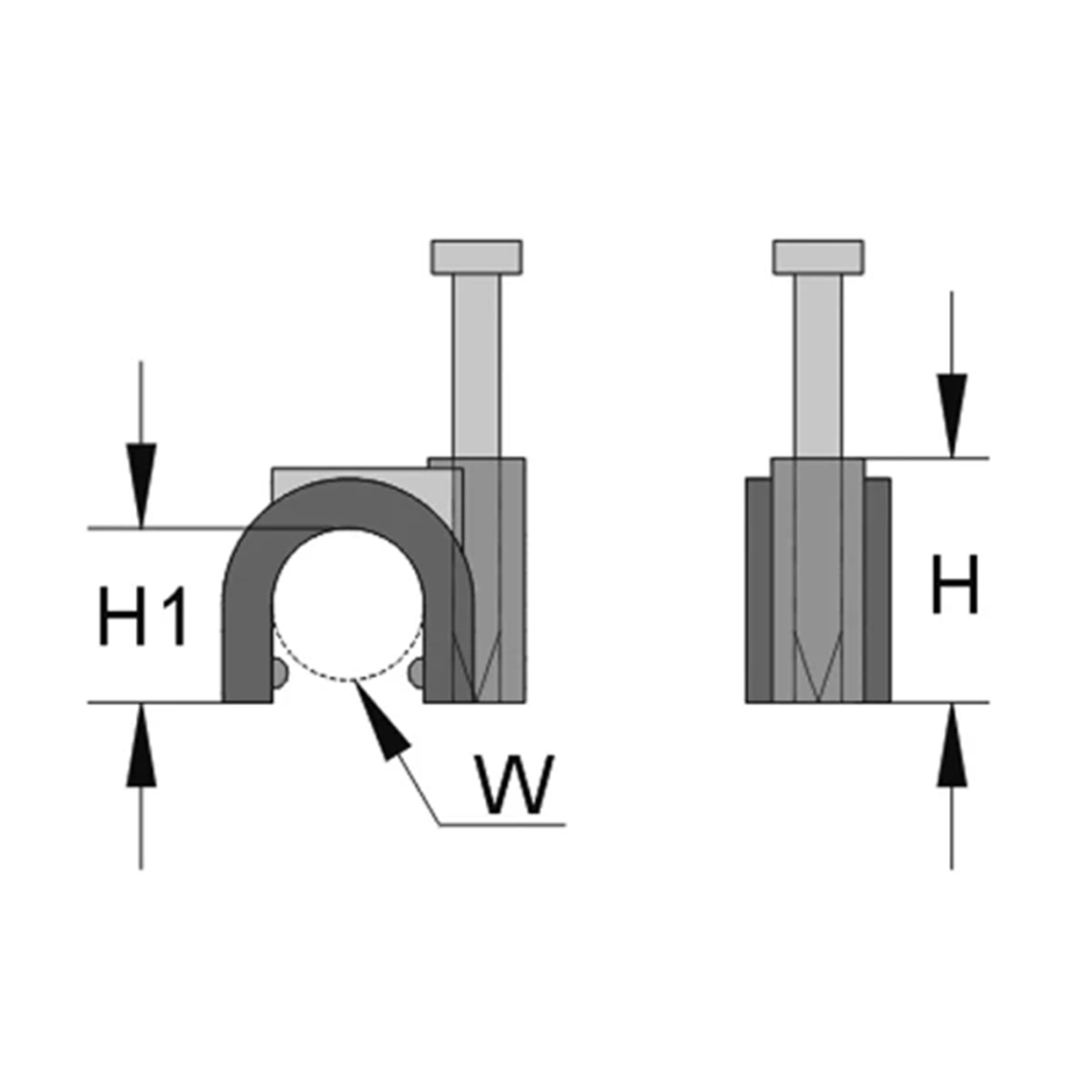

ISO-Mounting bracket for fixing and routing cables; laying on the cable. With galvanized steel nail. Handle material: impact-resistant polyethylene (PE), halogen-free, temperature-resistant: -40 ºC to +80 ºC, temporarily up to approx. 100 ºC. The height of the hole is 9.3mm, and the cross-section of the nail is 2mm.

Technical data

  • Color
    Gray
  • Opening width [mm]
    9.3
  • cross-section [mm]
    10
  • Accurate color
    light gray
  • Material
    PE
  • Height [mm]
    13.8
  • Nail length [mm]
    25

Other technical data

  • Suitable for diameter
    10 ... 10 mm
  • Height opening
    10.4 mm
  • Material
    Plastic
  • With nail
    Yes
  • Nail diameter
    2 mm
  • Width opening
    9.3 mm
  • Double model
    No
  • Colour
    Grey
  • Nail length
    25 mm
  • Hardened steel nail
    Yes
