HW-4ACB adhesive holder (25x25) HW-4ACB

Indeks lokalny:
TAP101BORP
Numer katalogowy:
HW-4ACB
Kod EAN:
5901924532347
Producent: TRYTYT
Length [mm]: 28
Color: Black
Maximum operating temperature [°C]: 85
39
95
zł
gross / op.  (w tym VAT 23%) 0,40 zł gross / szt.
Dostępność
Dostępne 65 op.
Sprawdź
Odbiór!
Odbierz w godzinę!
Szczegóły
Twoja hurtowinia
Dostępność w oddziale
Wybierz Swoją hurtownię
Wybierz
Ilość op. (wielokrotność: 1 )
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

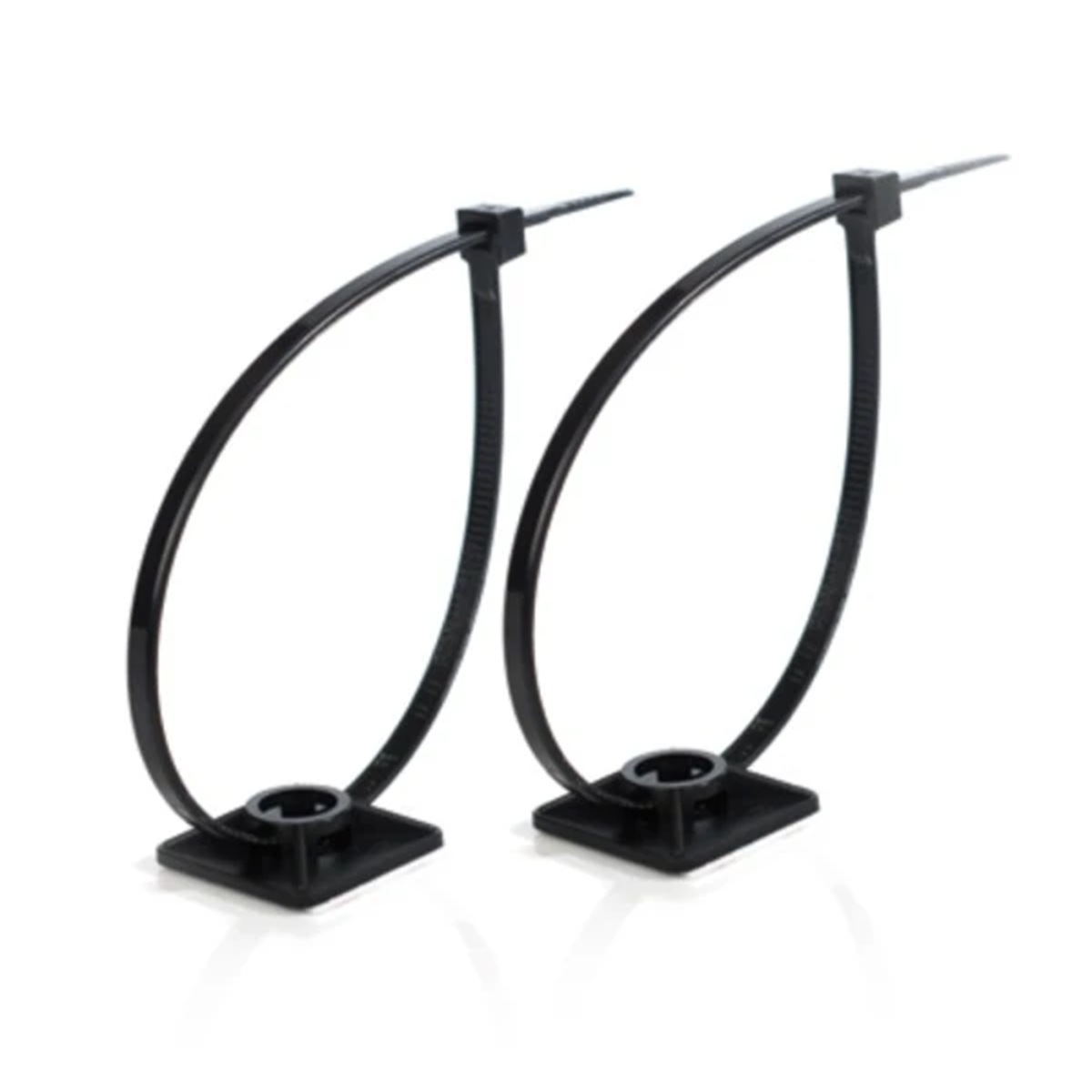

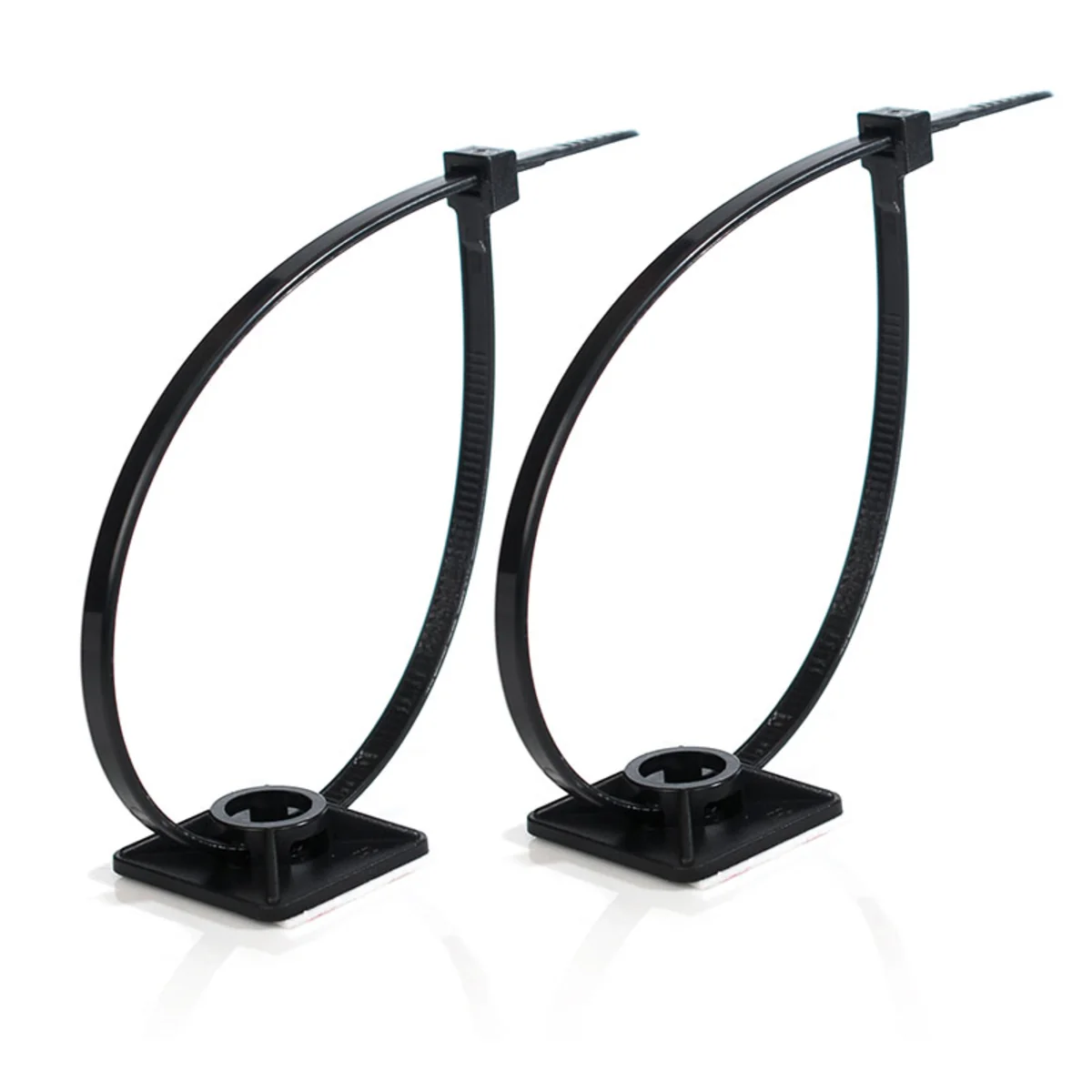

HW self-adhesive clips, for attaching cable bundles to a smooth surface. Used where drilling holes for mounting HC saddles is difficult or impossible. Irreplaceable when fixing various objects with the use of bands to the surface with a smooth surface (switchboards and control panels). The handles are equipped with adhesive, the surface of which is covered with a layer of glue (rubber). The protection of the adhesive is made of silicone paper. If it is necessary to ensure maximum fastening durability, the handles can also be fixed to the ground with a screw. They can be used with ties with a maximum width of 9 mm.

Available in natural and black, characterized by standard resistance to UV radiation, free from halogens, phosphorus and cadmium compounds.

Dane techniczne

  • Length [mm]
    28
  • Maximum operating temperature [°C]
    85
  • Width [mm]
    28
  • Height [mm]
    4
  • PKWIU
    22.29.29.0
  • Color
    Black
  • Material
    Polyamide
  • Pieces in the package
    100
  • Minimum operating temperature [°C]
    -40

Pozostałe dane techniczne

  • Length
    28 mm
  • Height
    4 mm
  • Type of fastening
    Glue and screw
  • Material
    Plastic
  • Operating temperature
    -40 ... 85 °C
  • Colour
    Black
  • Width
    28 mm
  • Suitable for cable tie width to
    4.8 mm
  • Diameter mounting hole
    5 mm
  • Material quality
    Polyamide (PA)
  • Detectable
    No

Dane producenta

  • Producent
    TRYTYT Sp. z o.o.
  • Adres
    43-382 Bielsko-Biała Horeszków 8 Polska
