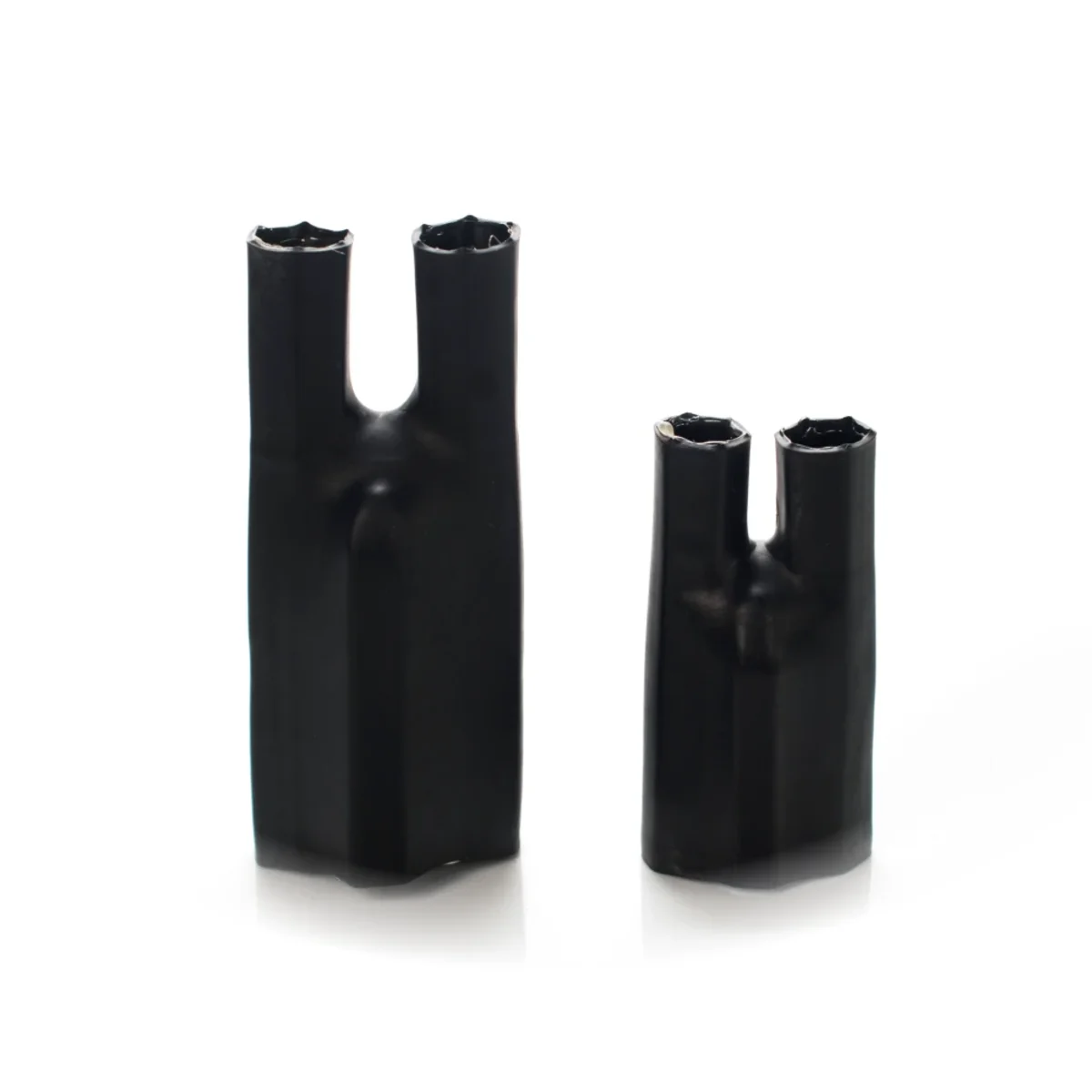

Heat-shrinkable breakout boot Pal2 40/16 PAL2-40/16

Indice locale:
TMN026BORP
Numero di catalogo:
PAL2-40/16
Codice EAN:
5901924530299
Produttore: TRYTYT
Water absorption: 0.01
Color: Black
Maximum operating temperature [°C]: 105
Prezzo:
31,67 zł
gross / pezzi
(inclusa IVA 23%)
Accessibile 78 pezzi
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

PAL heat shrink breakout boots are made of cross-linked polyolefin. This material is resistant to weather conditions as well as to UV rays, while providing excellent electrical insulation. Its properties enable it to be widely used in the low voltage power industry, both indoors and outdoors. Available types for 2,3,4,5-wire cables.

Dati tecnici

  • Water absorption
    0.01
  • Maximum operating temperature [°C]
    105
  • Type
    Heat shrinkable
  • Body diameter (before shrinking) [mm]
    40
  • Elongation at break [%]
    300
  • Tensile strength [MPa]
    13
  • Accurate color
    Black
  • Color
    Black
  • Combustibility
    Combustible
  • Body diameter (after shrinking) [mm]
    16
  • Shrink temperature [°C]
    110
  • Dielectric strength [kV/mm]
    15
  • Minimum operating temperature [°C]
    -55
  • PKWIU
    27.90.12.0
