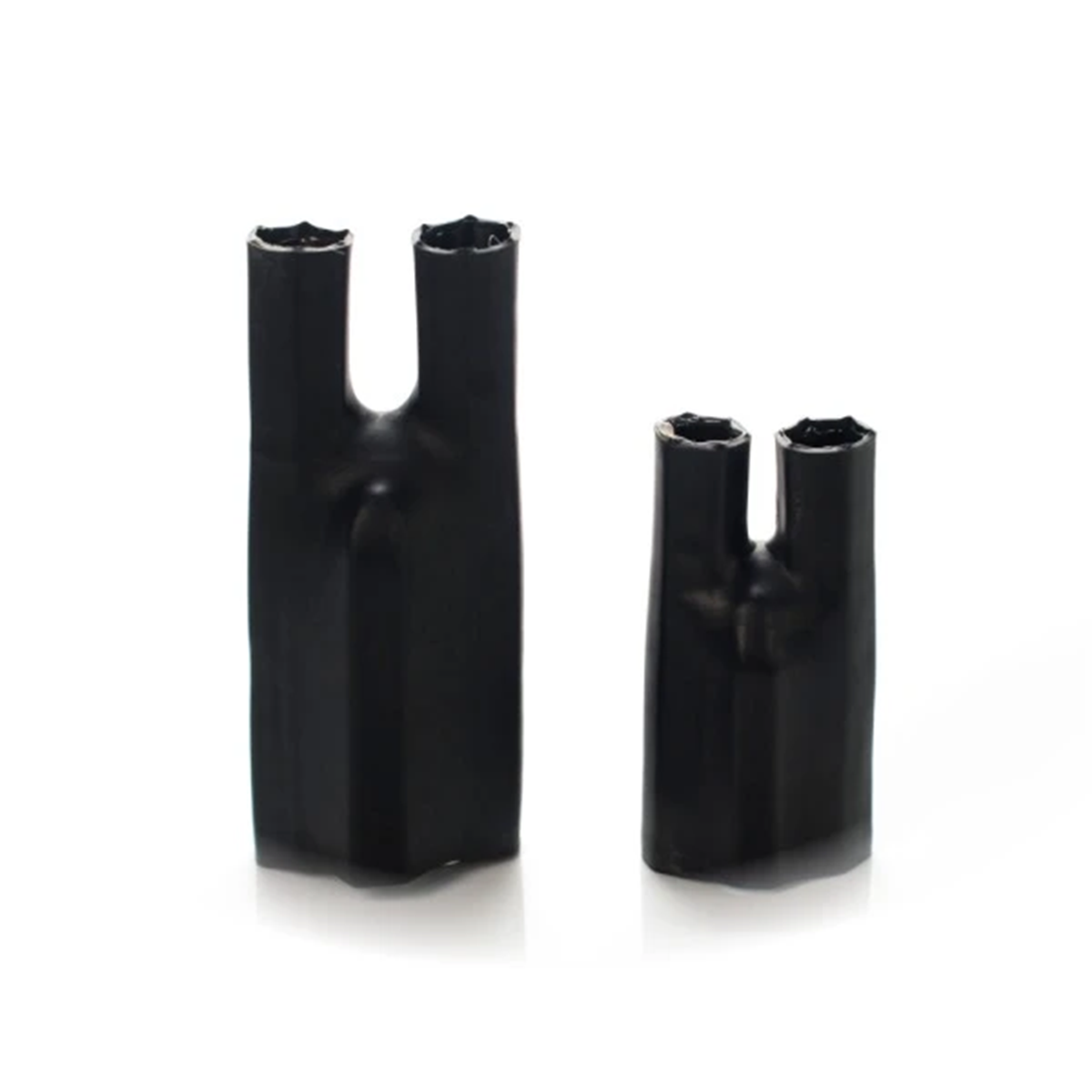

Heat-shrinkable breakout boot Pal2 33/10 PAL2-33/10

local index:
TMN025BORP
Catalog No:
PAL2-33/10
EAN code:
5901924530282
Manufacturer: TRYTYT
Water absorption: 0.01
Color: Black
Maximum operating temperature [°C]: 105
Price:
6,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PAL heat shrink breakout boots are made of cross-linked polyolefin. This material is resistant to weather conditions as well as to UV rays, while providing excellent electrical insulation. Its properties enable it to be widely used in the low voltage power industry, both indoors and outdoors. Available types for 2,3,4,5-wire cables.

Technical data

  • Water absorption
    0.01
  • Maximum operating temperature [°C]
    105
  • Type
    Heat shrinkable
  • Body diameter (before shrinking) [mm]
    thirty
  • Shrink temperature [°C]
    110
  • Dielectric strength [kV/mm]
    15
  • Minimum operating temperature [°C]
    -55
  • PKWIU
    27.90.12.0
  • Color
    Black
  • Combustibility
    Combustible
  • Body diameter (after shrinking) [mm]
    12
  • Finger diameter before/after shrinking [mm]
    14/4.5
  • Elongation at break [%]
    300
  • Tensile strength [MPa]
    13
  • Accurate color
    Black
