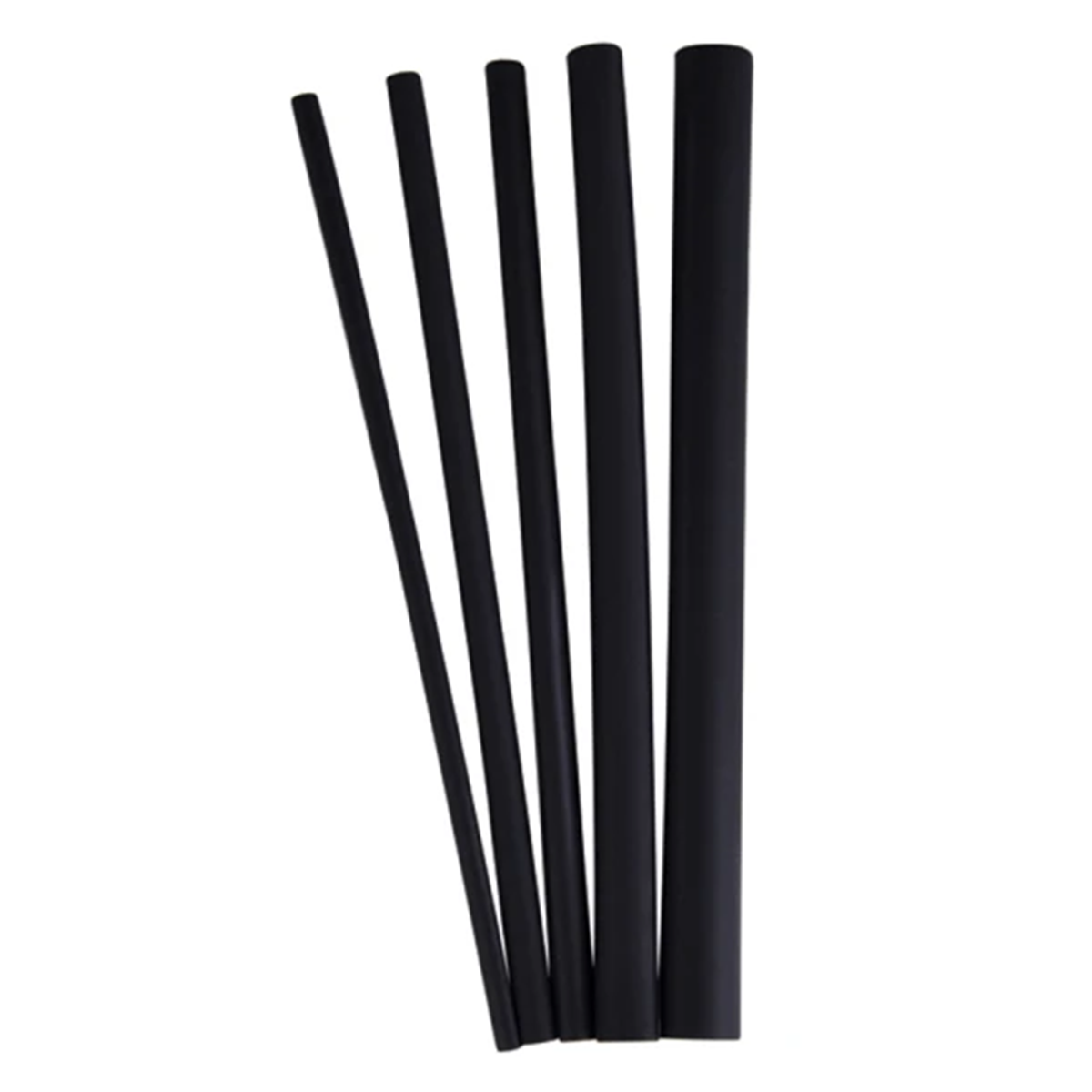

Heat shrink tubing 4:1 16/4mm double wall with adhesive 1.2m black 267466

local index:
TMR175HAUP
Catalog No:
267466
EAN code:
4011923591557
Manufacturer: HAUPA
Length [m]: 1.2
Wall thickness (after shrinking) [mm]: 1.7
Wall thickness (before shrinking) [mm]: 0.55
Price:
13,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

The heat shrinkable hose HUPshrink41DW-A is distinguished by the following features:

  • double wall,
  • made of: radiation cross-linked polyolefin, self-extinguishing,
  • operating temperature - 45° C to 110° C,
  • packed in PE bags.
  • with glue inside.

Technical data

  • Length [m]
    1.2
  • Wall thickness (before shrinking) [mm]
    0.55
  • Material
    Polyolefin
  • Shrinkage factor
    4:1
  • Wall thickness (after shrinking) [mm]
    1.7
  • Color
    Black
  • Shrink temperature [°C]
    >80
  • Diameter before/after shrinkage [mm]
    16/4

Other technical data

  • Type
    Heat-shrink
  • Shrink rate
    4:1
  • Inner diameter after heat-shrink
    4 mm
  • Length
    1.2 m
  • Colour
    Black
  • Halogen free
    Yes
  • UL approval
    Yes
  • Model
    Thick-walled
  • Inner diameter before heat-shrink
    16 mm
  • Wall thickness after shrinking
    1.7 mm
  • Operating temperature
    -45 ... 110 °C
  • Material
    Crosslinked polyolefin (XLPO)
  • With inner glue
    Yes
