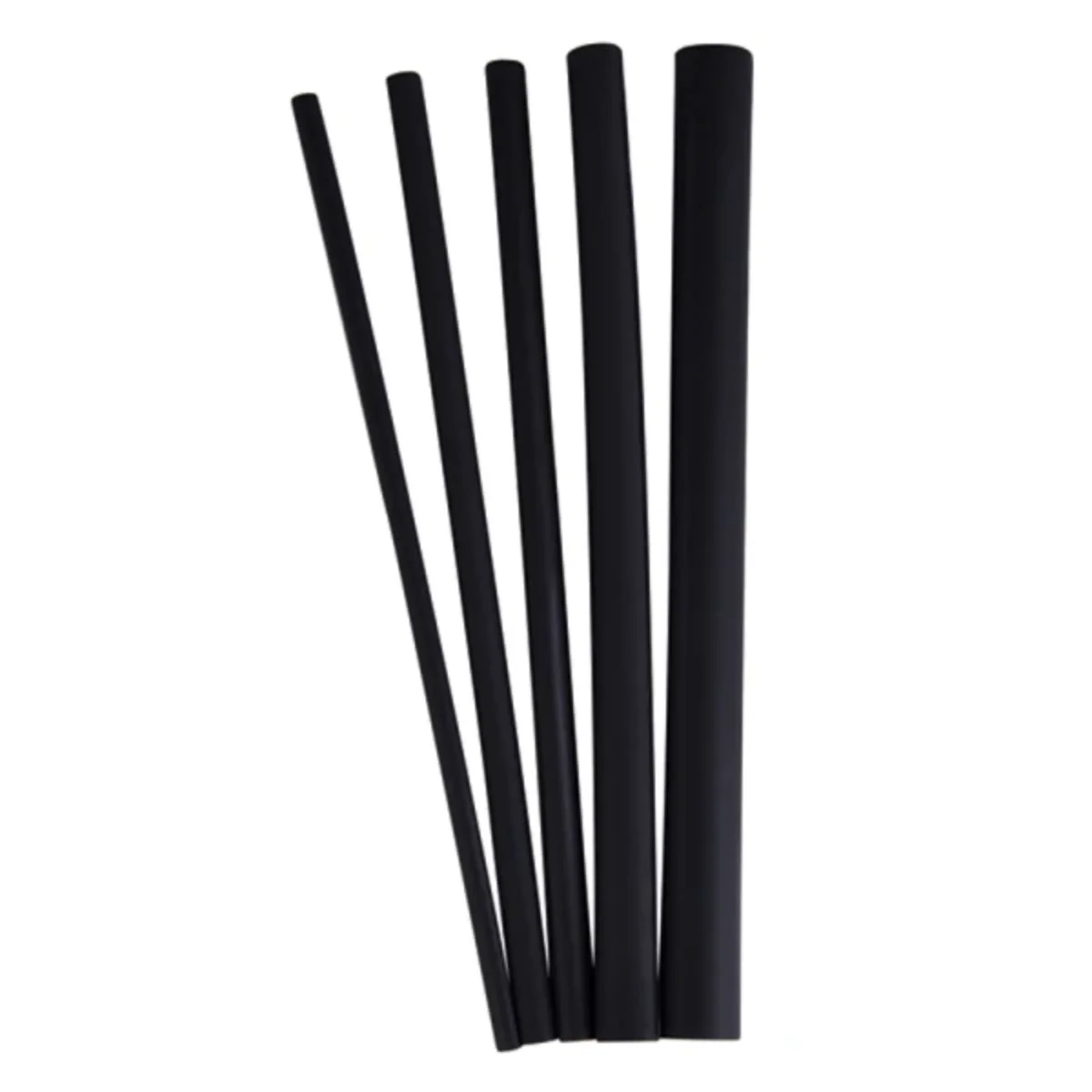

Heat shrink tubing 3:1 38.1/13mm 1.2m black 267084
local index:
TMR057HAUP
Catalog No:
267084
EAN code:
4011923586591
Manufacturer:
HAUPA
Length [m]: 1.2
Wall thickness (after shrinking) [mm]: 2.54
Wall thickness (before shrinking) [mm]: 0.8
Price:
15,57 €
gross / pcs.
(including VAT 23%)
12,98 € gross/m.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The heat-shrinkable hose HUPshrink31DW-A is distinguished by the following features:
- made of: radiation cross-linked polyolefin, self-extinguishing,
- flexible,< /li>
- double-walled,
- operating temperature - 45° C to 110° C,
- packed in a PE bag,
- with glue inside ,
- waterproof,
- UV resistant.
Technical data
-
Length [m]1.2
-
Wall thickness (before shrinking) [mm]0.8
-
MaterialPolyolefin
-
Shrinkage factor3:1
-
Wall thickness (after shrinking) [mm]2.54
-
ColorBlack
-
Shrink temperature [°C]>80
-
Diameter before/after shrinkage [mm]38.1/13
Other technical data
-
Rated control supply voltage AC 50 Hz600 ... 600 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V40 A
-
Rated operation current Ie at AC-4, 400 V18.5 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz600 ... 600 V
-
Rated operation current Ie at AC-1, 400 V60 A
-
Rated operation power at AC-3, 400 V18.5 kW
-
Rated operation power at AC-4, 400 V9 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitCable clamp
-
Number of normally open contacts as main contact3
