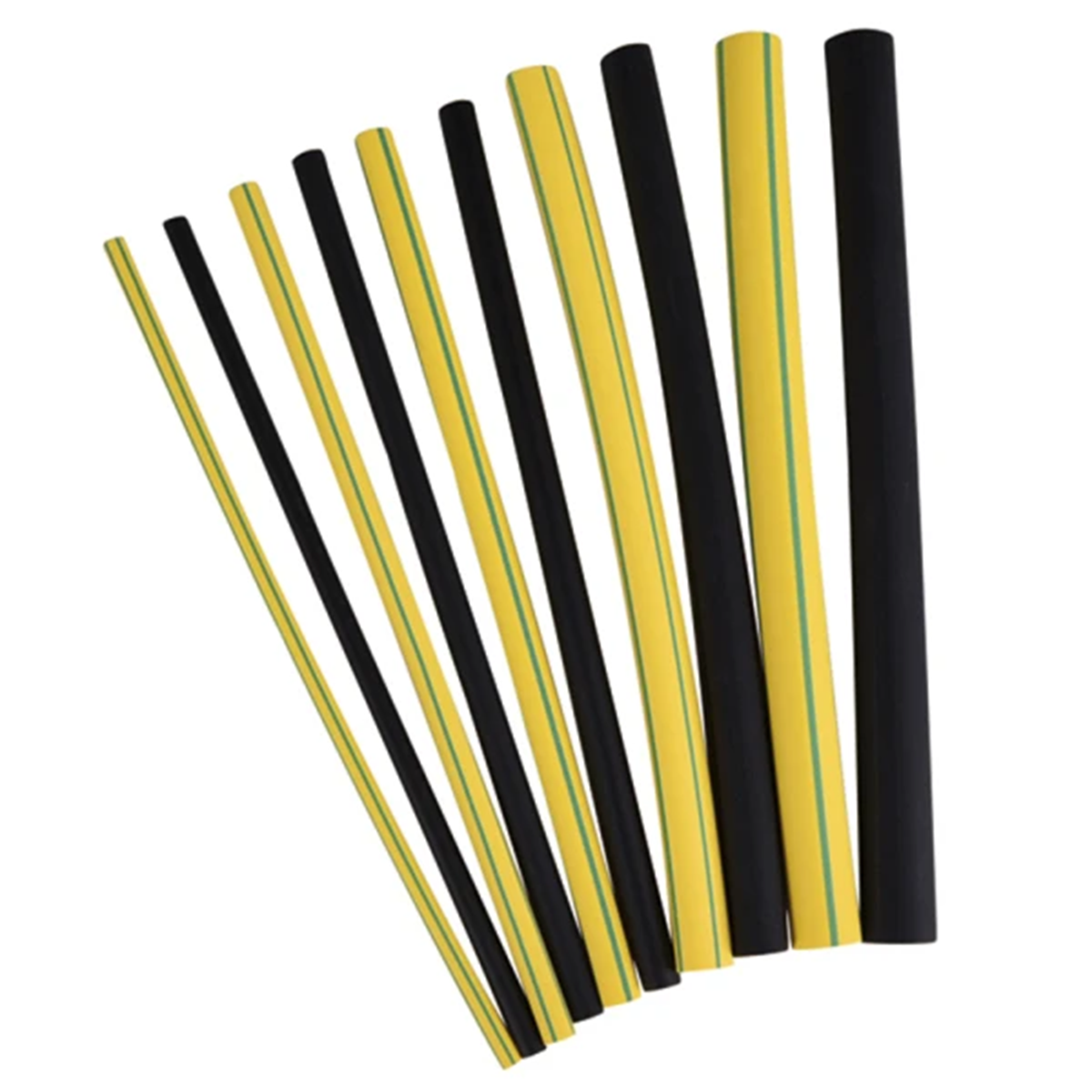

Heat shrink tubing 3:1 3/1mm 1.2m black 267442

local index:
TMR166HAUP
Catalog No:
267442
EAN code:
4011923591441
Manufacturer: HAUPA
Length [m]: 1.2
Wall thickness (after shrinking) [mm]: 3
Wall thickness (before shrinking) [mm]: 1
Price:
1,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

The heat-shrinkable hose HUPshrink31DW is characterized by the following features:

  • double wall,
  • made of radiation-crosslinked polyolefin, self-extinguishing,
  • operating temperature - 55° C to 135° C,
  • packed in PE bags.

Technical data

  • Length [m]
    1.2
  • Wall thickness (before shrinking) [mm]
    1
  • Material
    Polyolefin
  • Shrinkage factor
    3:1
  • Wall thickness (after shrinking) [mm]
    3
  • Color
    Black
  • Shrink temperature [°C]
    >70
  • Diameter before/after shrinkage [mm]
    3/1

Other technical data

  • Type
    Heat-shrink
  • Shrink rate
    3:1
  • Inner diameter after heat-shrink
    1 mm
  • Length
    1.2 m
  • Colour
    Black
  • Halogen free
    Yes
  • UL approval
    Yes
  • Model
    Thick-walled
  • Inner diameter before heat-shrink
    3 mm
  • Wall thickness after shrinking
    1 mm
  • Operating temperature
    -55 ... 135 °C
  • Material
    Crosslinked polyolefin (XLPO)
  • With inner glue
    No
