Heat shrink tube HDT-A 19/6 (length 1000mm) 7100195508

local index:
TMR011TRIM
Catalog No:
7100195508
Manufacturer: 3M
Length [mm]: 1000
Density [g/m3]: 1.35
Wall thickness (after shrinking) [mm]: 2.5
Price:
317,83 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Print

Product description

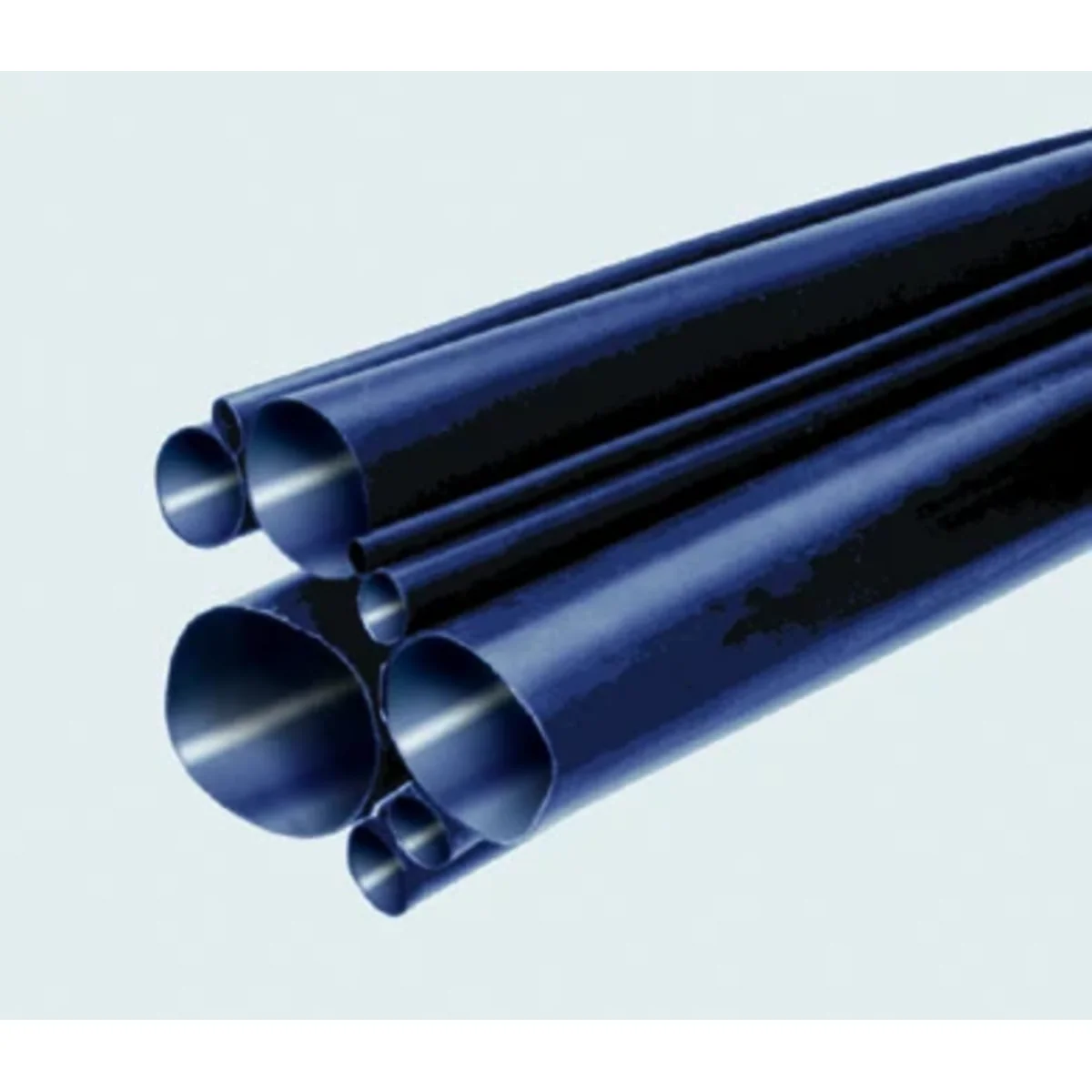

HDT-A series thick-walled heat-shrinkable tubes are made of cross-linked polyolefins. The inner side of the pipes is covered with a layer of thermoplastic glue. This adhesive is applied during the pipe forming process, resulting in a very smooth and uniform layer along the length of the pipe, ensuring a perfect seal. The shrink ratio of up to 4:1 guarantees a wide range of applications, and the thickness of the pipe after shrinking of up to 4 mm ensures very good insulation parameters and high mechanical resistance. The HDT-A series of heat shrink tubing provides a resilient and flexible seal and protection for cable connections. They are used to restore insulation in cables up to 1kV and the outer sheath of LV and MV cables. They are self-extinguishing, resistant to UV, chemicals, and provide excellent tightness. They are designed to work in difficult conditions, requiring increased resistance to mechanical damage. Also available in a version without glue as the HDT type.

Technical data

  • Length [mm]
    1000
  • Wall thickness (after shrinking) [mm]
    2.5
  • Pieces in the package
    25
  • Inner diameter (before shrinking) [mm]
    19
  • Working temperature [°C]
    from -55 to +110
  • Density [g/m3]
    1.35
  • Wall thickness (before shrinking) [mm]
    1.05
  • Inner diameter (after shrinking) [mm]
    6
  • Shrink temperature [°C]
    135
  • Shrinkage factor
    2009-10-14 00:00:00
