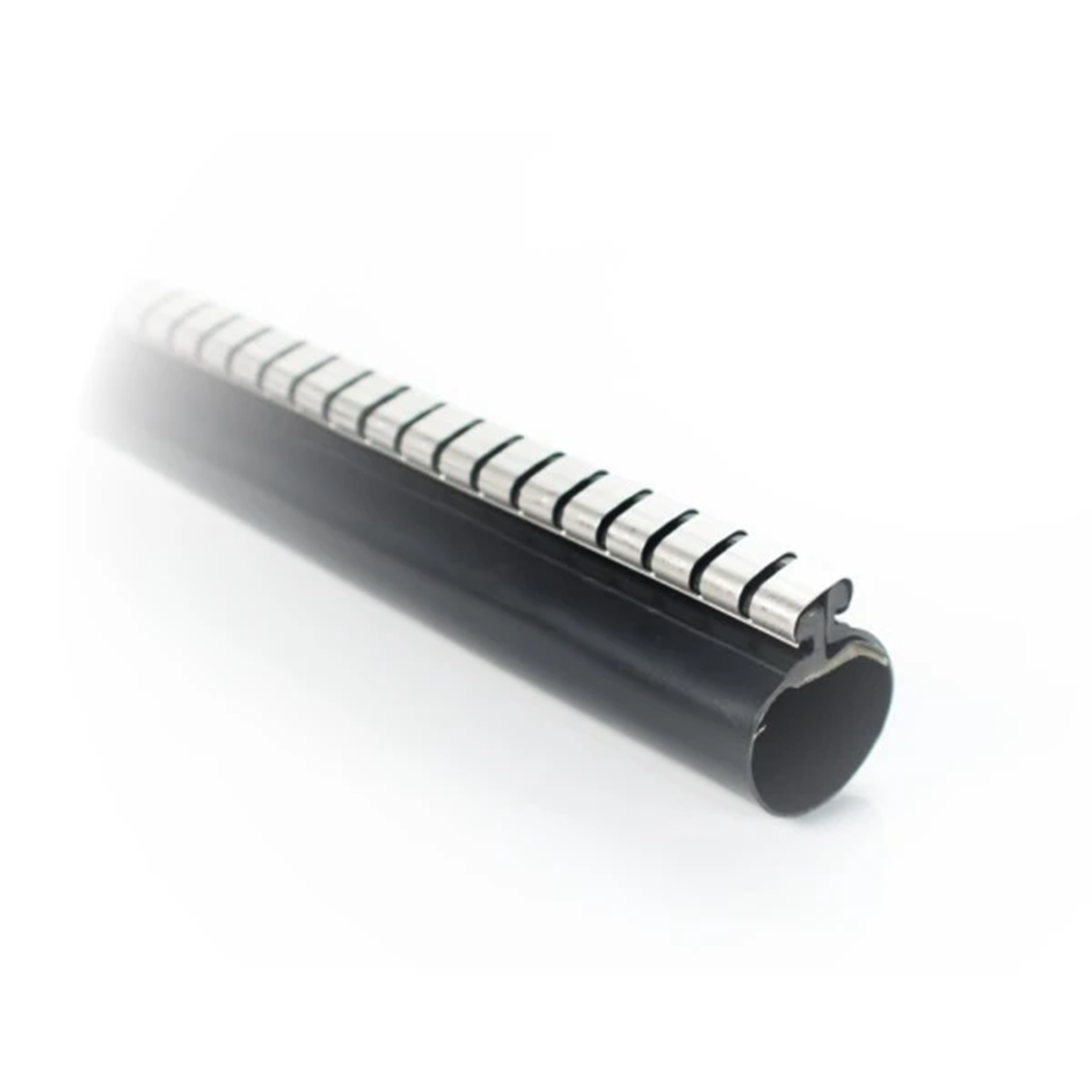

Heat-shrink sheet BPT-75-20-1000 BPT-75/20

local index:
TMN035BORP
Catalog No:
BPT-75/20
EAN code:
8595055715426
Price:
61,55 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,70 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

BPT heat-shrink sheets made of polyolefin and hot-melt adhesive. They are used to reconstruct the insulation of wire cables, as well as to create traditional joints in both the power and telecommunications industries.

BPT heat-shrink sheets, in addition to the highest quality hot-melt adhesive, have a surface dotted with thermal paint, which becomes uniformly black after reaching the optimum temperature for shrinking. The rail that closes/fastens the panel is made of high-quality, resilient stainless steel. The minimum shrink temperature is only 110°C.

Technical data

  • Length [m]
    1
  • Material
    Polyolefin
  • Diameter before/after shrinking [mm]
    75/20
  • Tensile strength [MPa]
    >15
  • Wall thickness (after shrinking) [mm]
    3
  • Type
    Heat shrinkable
  • Dielectric strength [kV/mm]
    12
