Grounding clamp for round conductor 5050073

Name: Grounding clamp for round conductor
Brand: OBO BETTERMANN
SKU: TAP063OBOB
Price: 3.69 PLN
Availability: InStock

local index:

TAP063OBOB

Catalog No:

5050073

EAN code:

4012195386230

Click on the photo to enlarge

Manufacturer: OBO BETTERMANN

Material: steel

Type: 950

Clamping range [mm]: from 20 to 22.5

See full description

Price:

3,69 €

gross / pcs.

(including VAT 23%)

Accessible 200 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

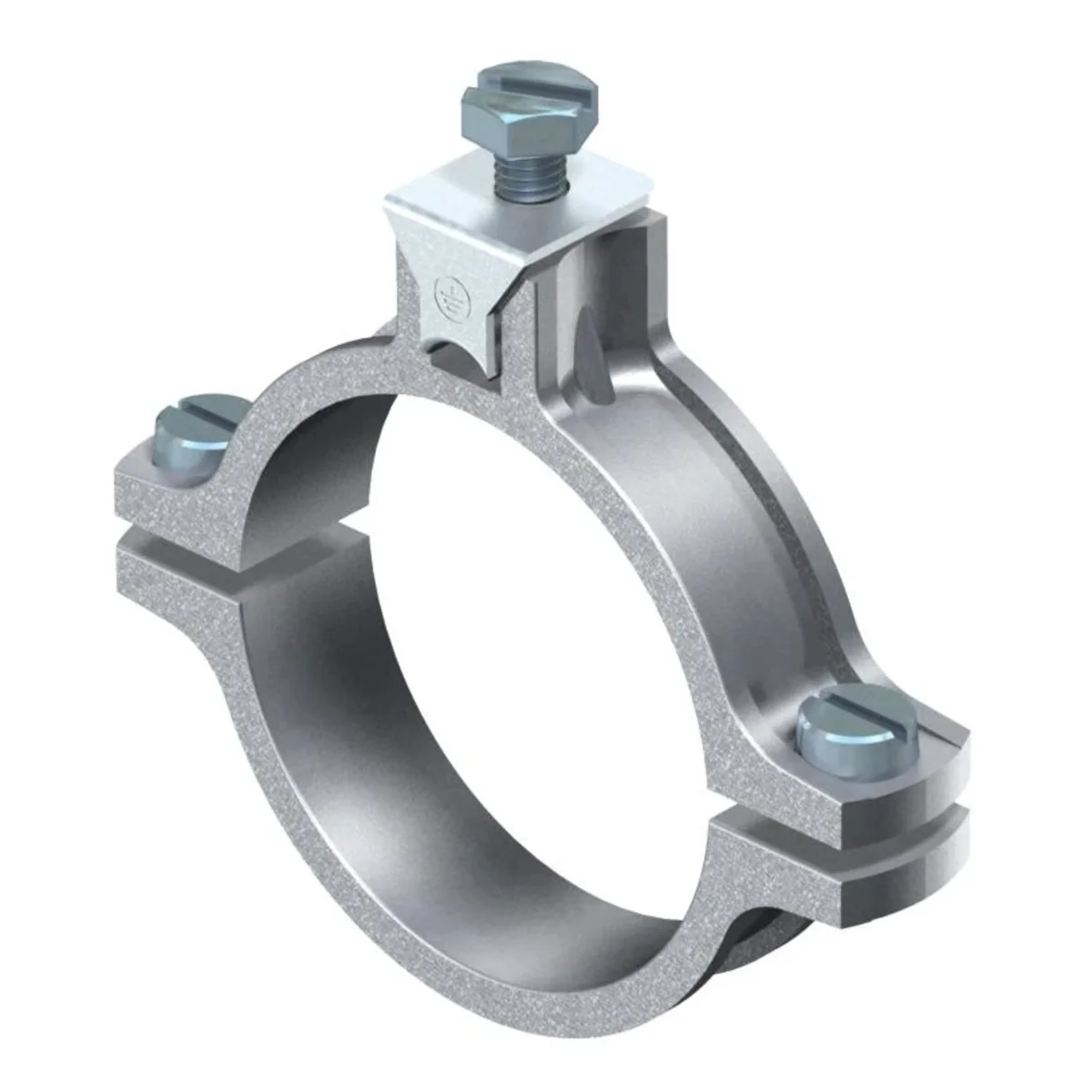

Earth clamp for round cable designed for pipes Ø 1/4 - 2 inches. It has the ability to connect a cable up to 22.5 mm². Clamp made of steel, electro-galvanized.

Technical data

Material

steel
Clamping range [mm]

from 20 to 22.5
PKWIU

25.99.29.0

Type

950
Maximum conductor cross-section [mm²]

35

Bulk packaging

A kind of package	Skrzynia	Karton	Paleta
Quantity	10 pcs.	120 pcs.	7680 pcs.
Weight (kg)	0,739	9,059	602,276
Volume (m3)	0,001	0,010	0,912
Width (m)	0,092	0,185	0,800
Length (m)	0,092	0,295	1,200
Depth (m)	0,077	0,188	0,950
