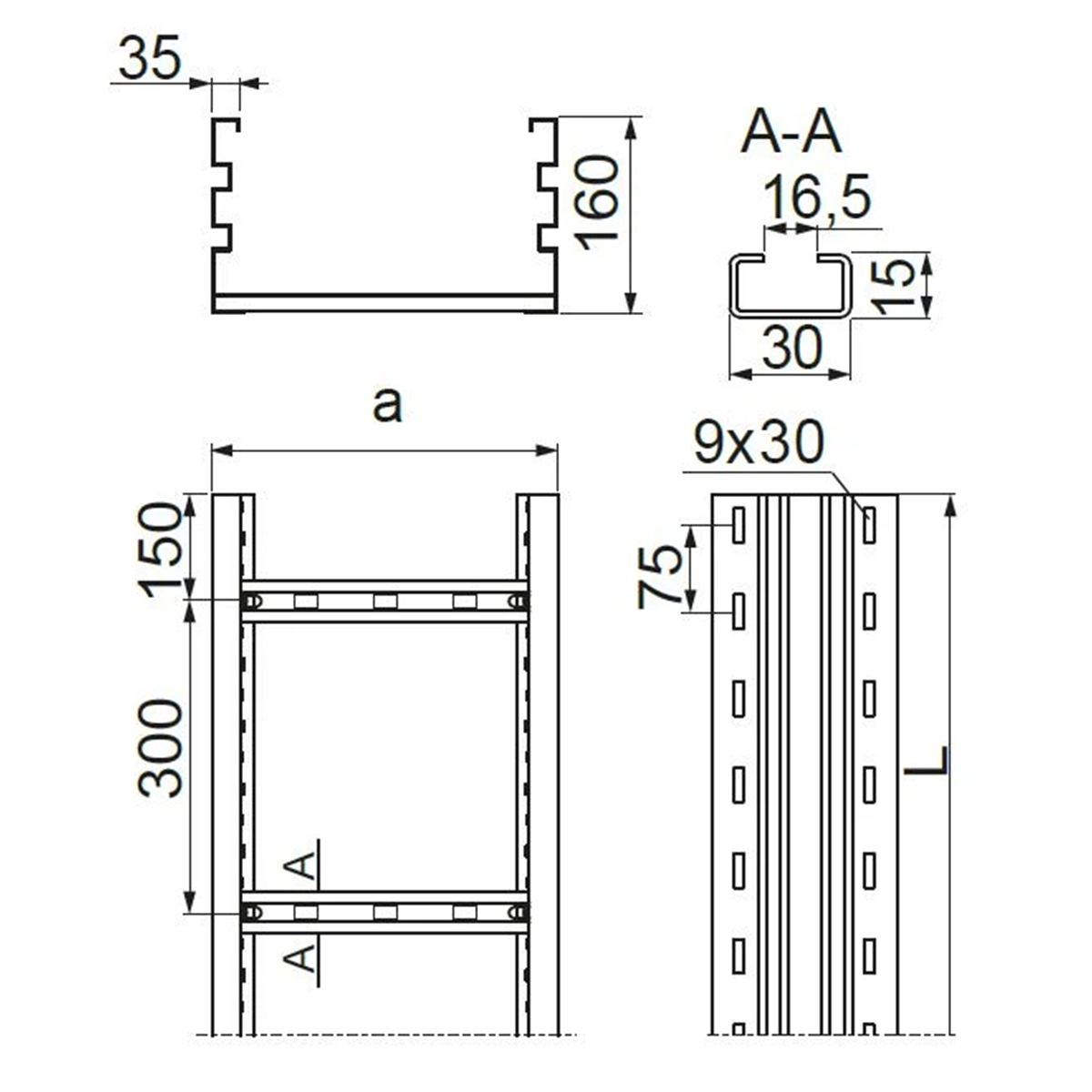

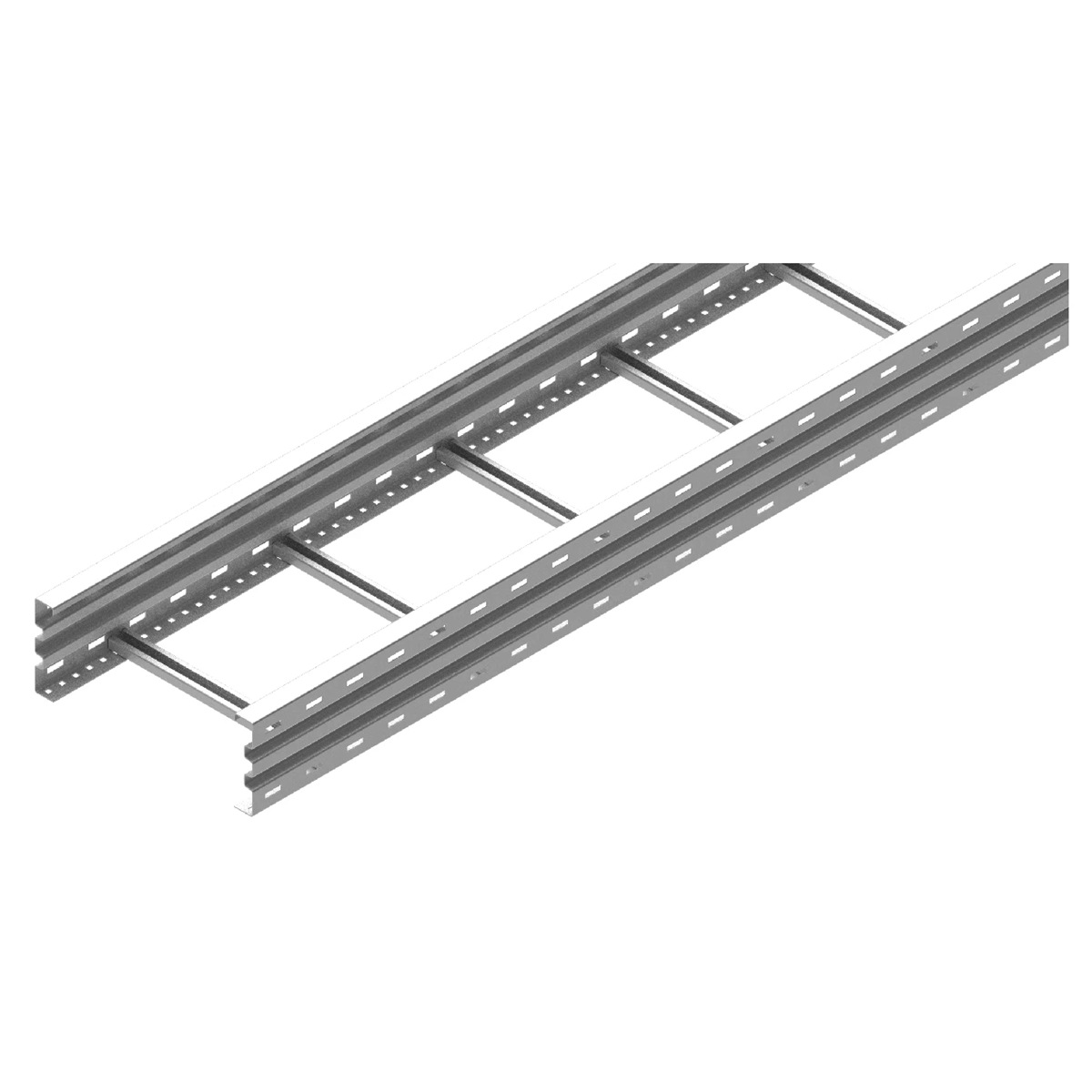

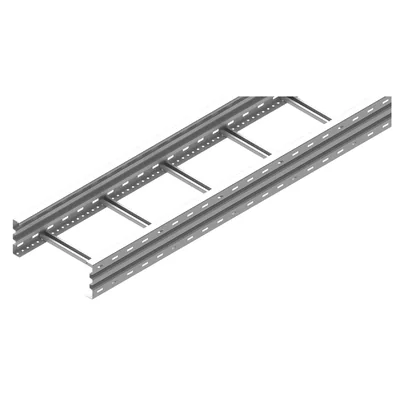

A ladder for running a cable route in halls or places with a limited number of supporting structures. The high strength of the ladders allows the use of supports even every 10 m.
Technical data
Length [m]
6
Material
Hot-dip galvanized steel
Height [mm]
160
PKWIU
25.11.23.0
Thickness [mm]
2
Width [mm]
400
Usable cross-section [mm²]
54,700
Other technical data
Rated permanent current Iu
1250 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
65 kA
Adjustment range short-term delayed short-circuit release
1875 ... 15000 A
Integrated earth fault protection
No
Device construction
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
No
Number of auxiliary contacts as normally open contact
3
With switched-off indicator
No
Number of poles
4
Type of control element
Push button
Motor drive integrated
No
Degree of protection (IP)
IP20
Rated voltage
230 ... 690 V
Overload release current setting
500 ... 1250 A
Adjustment range undelayed short-circuit release
2500 ... 18750 A
Type of electrical connection of main circuit
Bolt connection
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
3
Number of auxiliary contacts as change-over contact
