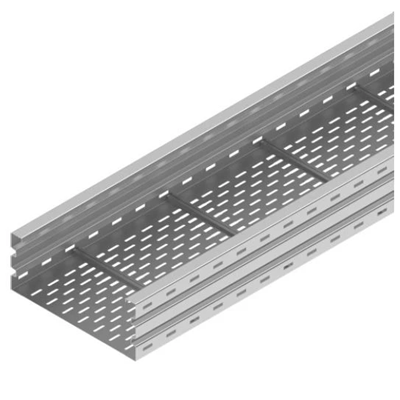

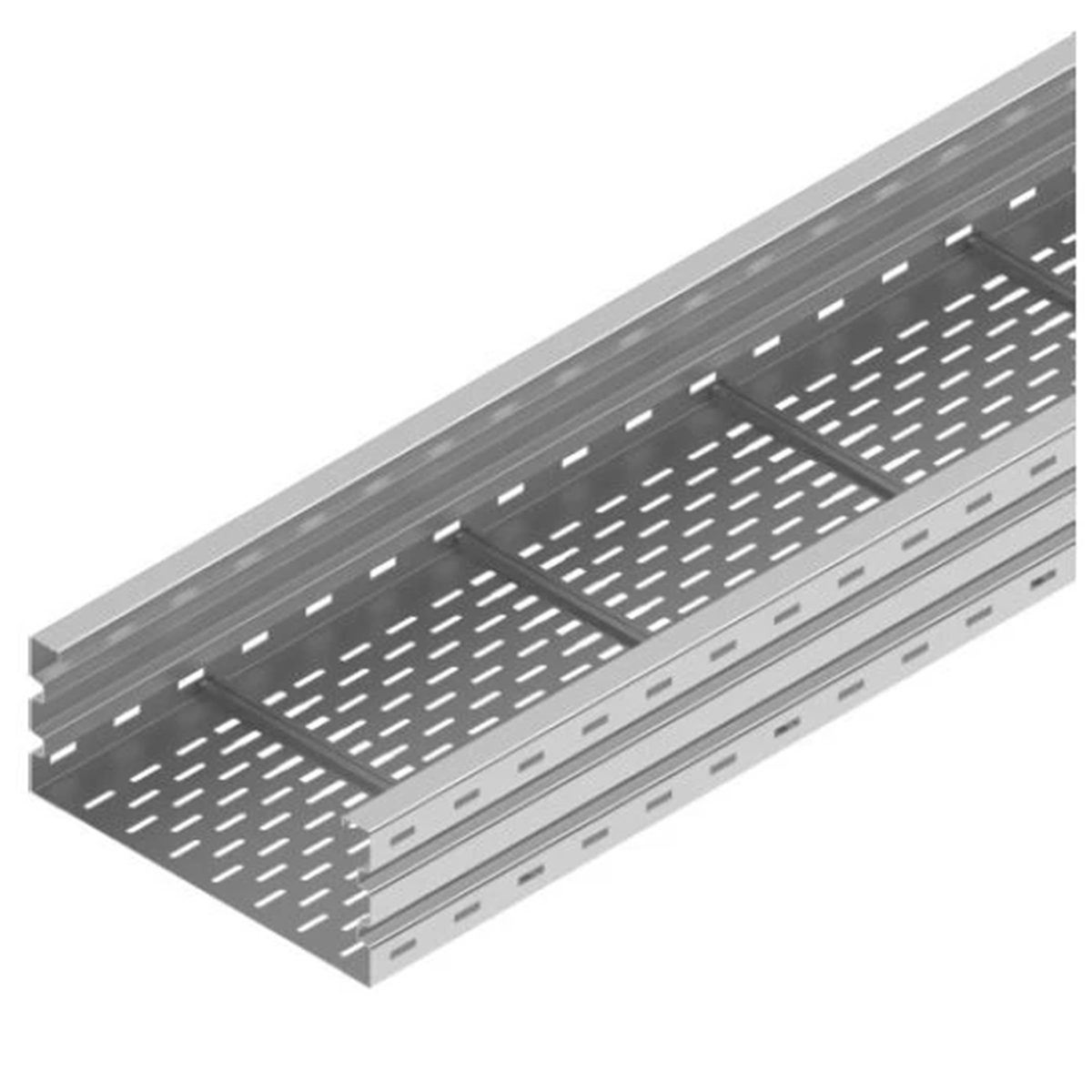

Galvanized channel, width 300mm, length 6m, height 160mm 273016

local index:
TKM825BAKS
Catalog No:
273016
EAN code:
5900993213171
Manufacturer: BAKS
Length [mm]: 6000
Thickness [mm]: 1.5
Material: Hot-dip galvanized steel
Large-size product
Price:
205,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Tray for routing cable routes in halls or places with a limited number of supporting structures. The high strength of the troughs allows the use of supports even every 10 m.

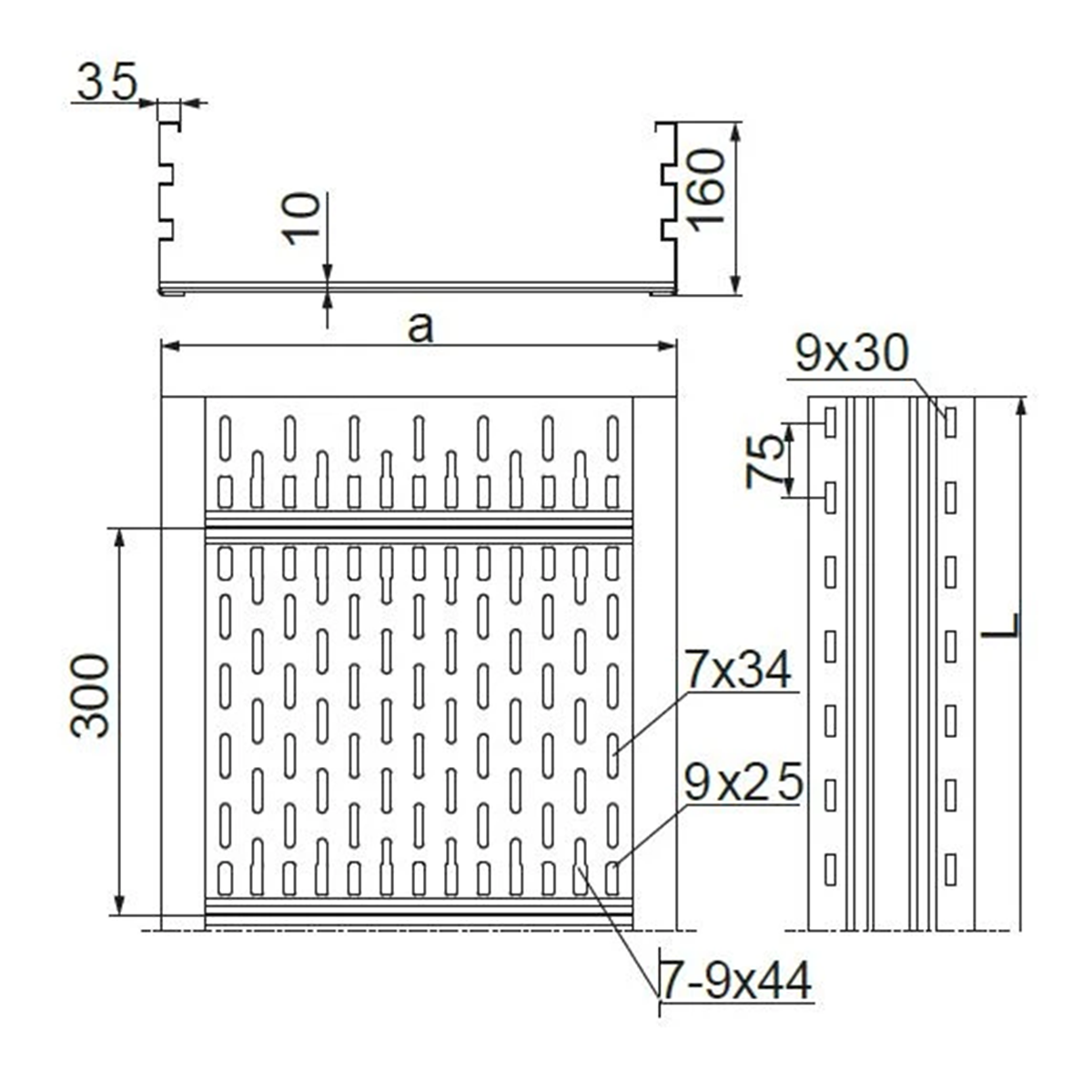

Technical data

  • Length [mm]
    6000
  • Material
    Hot-dip galvanized steel
  • Height [mm]
    160
  • PKWIU
    25.11.23.0
  • Thickness [mm]
    1.5
  • Width [mm]
    300
  • Usable cross-section [mm²]
    40,600

Other technical data

  • Height
    160 mm
  • Material thickness
    1.5 mm
  • Useful cross section
    40600 mm²
  • Side perforation
    yes
  • NATO-mounting holes
    no
  • Model szerokorozpiętościowy
    yes
  • Material
    Steel
  • Material quality
    Other
  • Colour
    Other
  • Width
    300 mm
  • Length
    6000 mm
  • With cover
    no
  • Bottom perforation
    yes
  • Model
    Without connector
  • Suitable for circuit integrity
    no
  • Stainless steel, pickled
    no
  • Surface protection
    Hot-dip galvanized
  • Weight
    9.38 kg/m
