el12 Running cables and wires Channels Metal channels Galvanized channel width 300mm length 3m height 60mm
Galvanized channel width 300mm length 3m height 60mm

Click on the photo to enlarge

Galvanized channel width 300mm length 3m height 60mm
BAKS

Galvanized channel width 300mm length 3m height 60mm 940130

local index:
TKM912BAKS
Catalog No:
940130
EAN code:
5900993155112
Price:
32,90 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
Large-size product
From 65,09 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

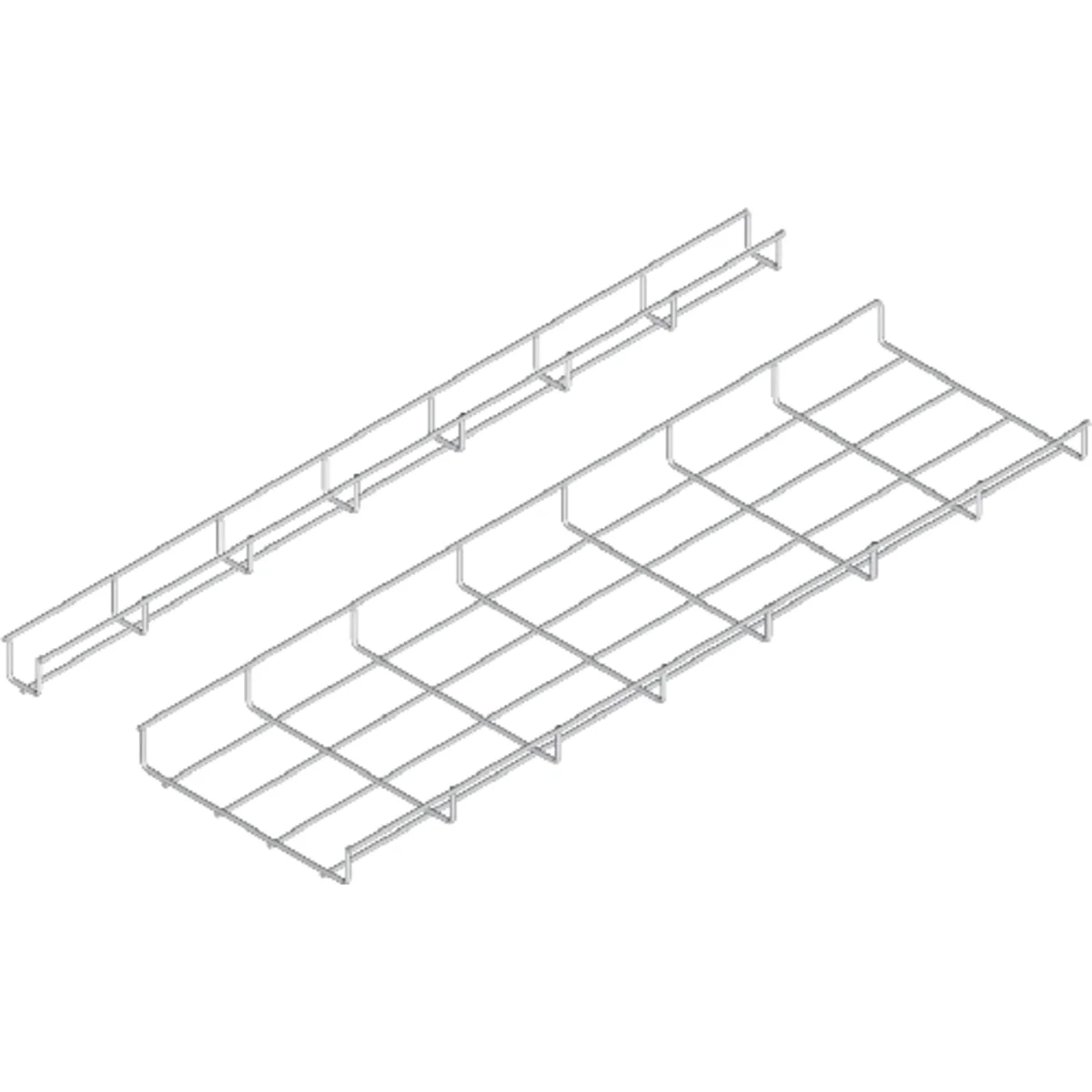

Mesh tray with welded snap fastener
Print the product sheet Report an error

Technical data

  • Length [mm]
    3000
  • Width [mm]
    300
  • Usable cross-section [mm²]
    14600
  • Material
    Galvanized steel
  • Height [mm]
    60

Other technical data

  • Profile shape
    U-shape
  • Width
    300 mm
  • Length
    3000 mm
  • Model
    Integrated connector
  • Integrated partition
    None
  • Suitable for circuit integrity
    yes
  • Material quality
    Other
  • Colour
    Other
  • Height
    60 mm
  • Wire diameter
    4.5 mm
  • Useful cross section
    14600 mm²
  • Połączenie bezśrubowe
    yes
  • Model szerokorozpiętościowy
    no
  • Material
    Steel
  • Surface protection
    Galvanic/electrolytic zinc plated
  • Weight
    1.88 kg/m
