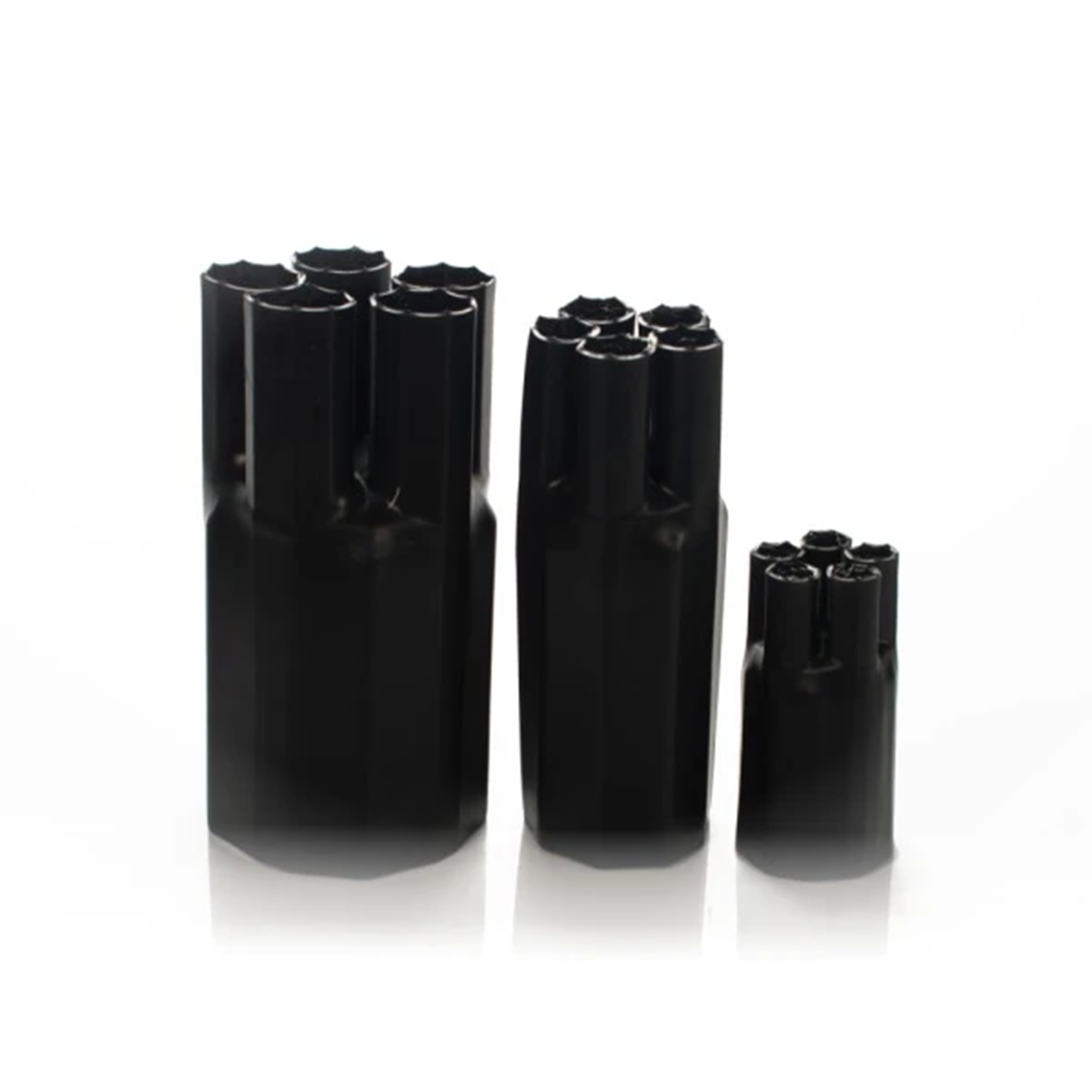

Five-finger heat shrinkable breakout boot Pal5 55/23 PAL5-55/23

local index:
TMN009BORP
Catalog No:
PAL5-55/23
EAN code:
5901924530466
Price:
15,07 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

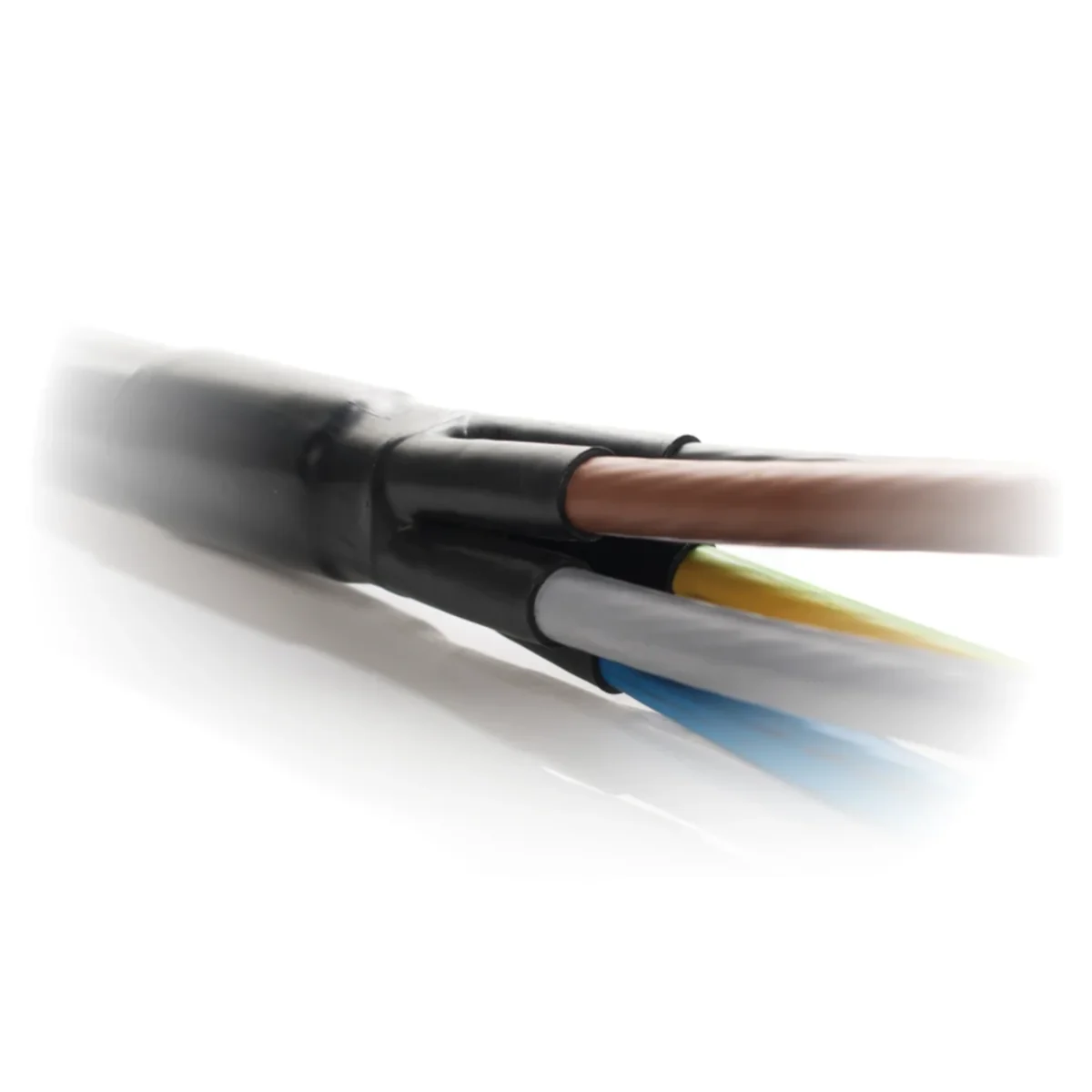

PAL heat shrink breakout boots are made of cross-linked polyolefin. This material is resistant to weather conditions as well as to UV rays, while providing excellent electrical insulation. Its properties enable it to be widely used in the low voltage power industry, both indoors and outdoors. Available types for 2,3,4,5-wire cables.

Technical data

  • Water absorption
    0.01
  • Maximum operating temperature [°C]
    105
  • Type
    Heat shrinkable
  • Body diameter (before shrinking) [mm]
    55
  • Elongation at break [%]
    300
  • Tensile strength [MPa]
    13
  • Accurate color
    Black
  • Color
    Black
  • Combustibility
    Combustible
  • Body diameter (after shrinking) [mm]
    23
  • Shrink temperature [°C]
    110
  • Dielectric strength [kV/mm]
    15
  • Minimum operating temperature [°C]
    -55
