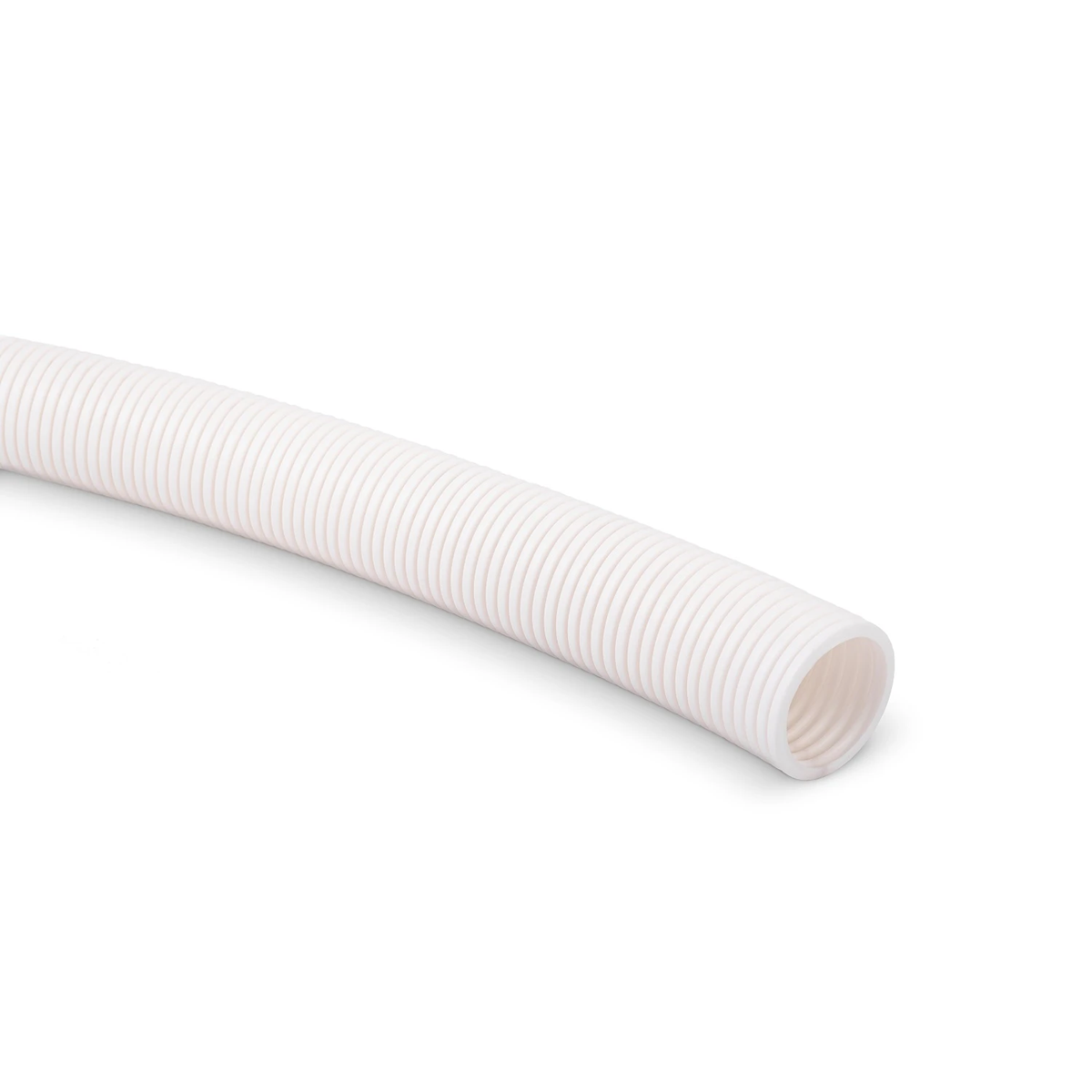

Corrugated pipe 320N size 32/26, 50 m 10091

local index:
TRG432TTPL
Catalog No:
10091
EAN code:
5908312752912
Manufacturer: TT PLAST
Color: Transparent
Compressive strength [N]: 320
Inner diameter [mm]: 26
Only personal collection at the branch
Price:
56,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

The corrugated pipe type RKLSHF is a casing pipe designed for mechanical protection and protection against moisture of cables in electrical installations. It is used in places with a special degree of fire protection (public utility buildings, buildings with a wooden structure, attics, attics). The RKLSHF pipe meets the requirements of the standard regarding the amount of toxic chemicals emitted during combustion (halogen-free product). Thanks to the appropriate cross-section, the pipe is very flexible, while maintaining good mechanical resistance (320N). The shape of the pipe allows it to be used in hard-to-reach places while ensuring the possibility of replacing the cable. The RKLSHF pipe is characterized by high tensile strength and also ensures easy cable entry over longer distances.

Technical data

  • Color
    Transparent
  • Inner diameter [mm]
    26
  • Temperature range [°C]
    -15/90
  • Accurate color
    milk
  • Compressive strength [N]
    320
  • Outer diameter [mm]
    32
  • Package weight [kg]
    0.037
  • PKWIU
    27.32.13.0

Other technical data

  • Nominal diameter
    32 mm
  • Inner diameter
    26 mm
  • Compressive strength
    320 N
  • UV resistant
    No
  • Colour
    White
  • Bending strength
    Pliable
  • Closable (two-part)
    No
  • With draw wire
    No
  • Outer diameter
    32 mm
  • Material
    Polypropylene (PP)
  • Operating temperature
    -5 ... 90 °C
  • Oil resistant
    Yes
  • Flame accelerating
    No
  • Lengthwise slotted
    No
  • Halogen free
    Yes
  • High conducting inner coating
    No

Manufacturer details

  • Manufacturer
    TT PLAST S.A.
  • Address
    32-015 Kłaj Targowisko 476 Polska

Bulk packaging

A kind of package Zwój
Quantity 1 pcs.
Weight (kg) 4,515
Width (m) 0,570
Length (m) 0,570
Depth (m) 0,230
