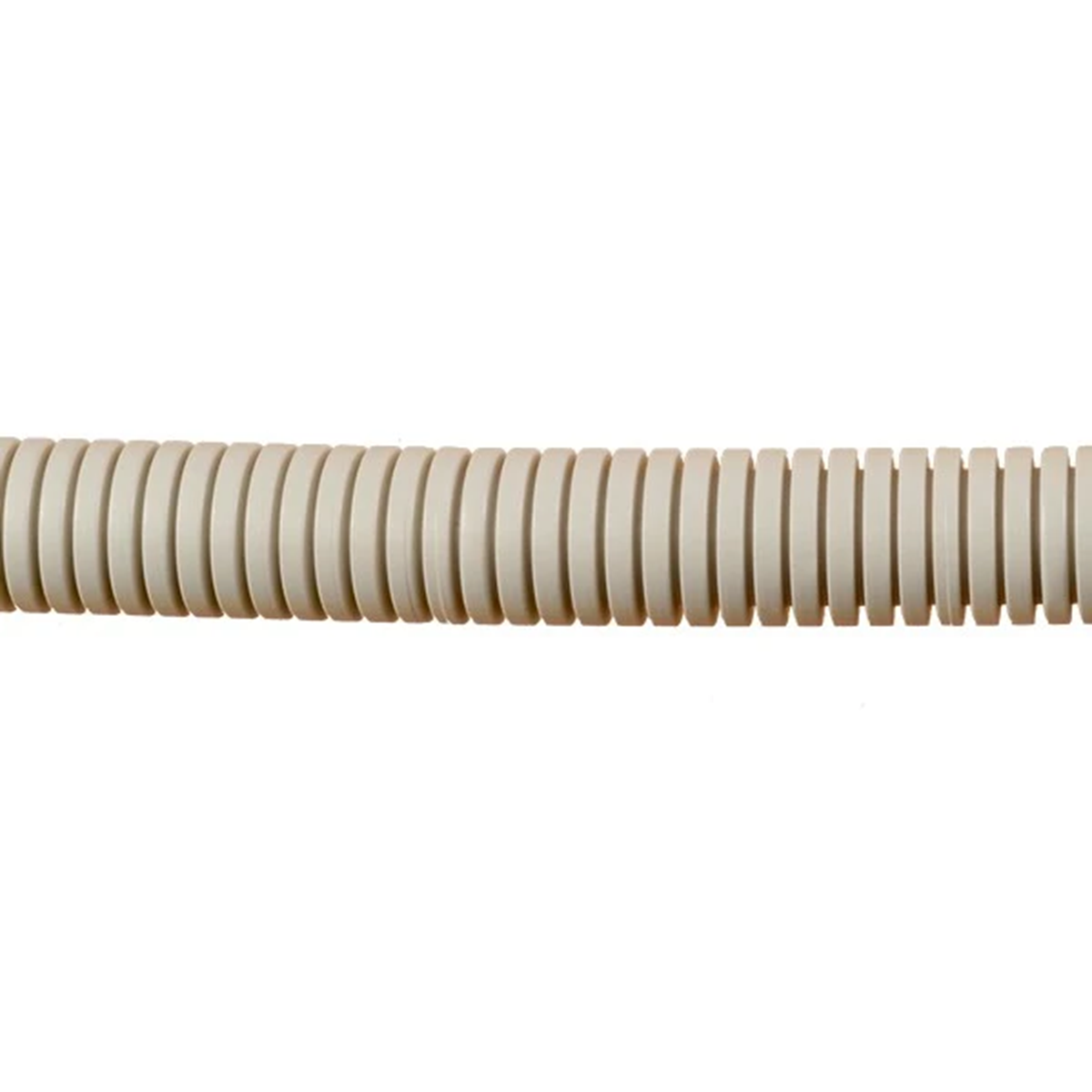

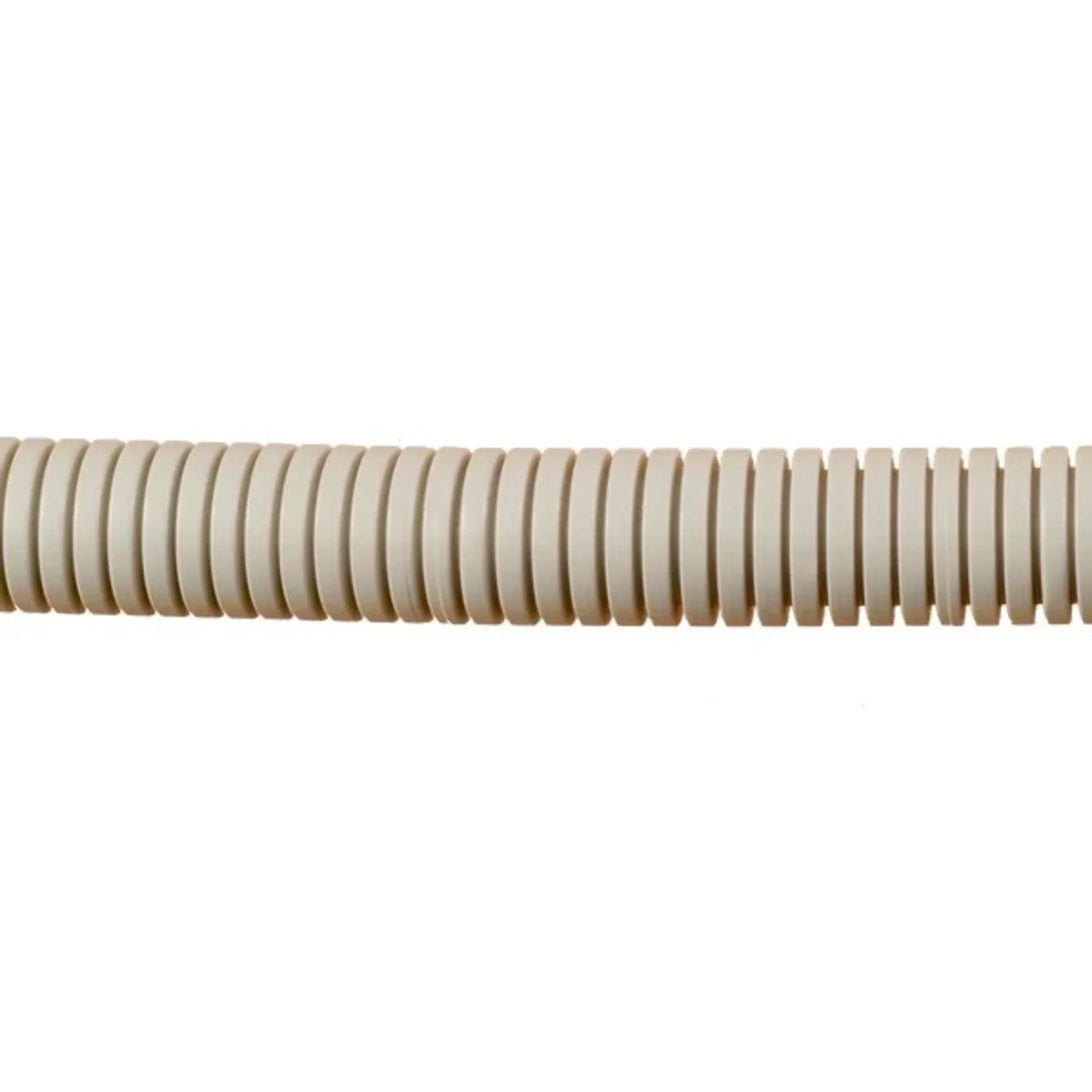

Corrugated installation pipe 320N 24mm 25m grey RKI-32A/25

Index local:
TRG029OSPE
Numéro de catalogue:
RKI-32A/25
Code EAN:
5907577473334
Producteur: OSPEL
Color: Gray
Inner diameter [mm]: 24
Outer diameter [mm]: 32
Prix:
30,31 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Electrical installation pipe necessary for the execution and finishing of the electrical installation.

Données techniques

  • Color
    Gray
  • Outer diameter [mm]
    32
  • Accurate color
    Gray
  • Inner diameter [mm]
    24
  • Compressive strength [N]
    320
  • PKWIU
    22.21.21.0

Autres données techniques

  • Halogen free
    Yes
  • Bending strength
    Pliable
  • Flush-mounted installation
    Yes
  • Suitable for installation on wood
    Yes
  • Suitable for concrete installation
    No
  • Suitable for underfloor installation (screed)
    Yes
  • Inner diameter
    24 mm
  • Operating temperature
    -5 ... 60 °C
  • Colour
    Grey
  • Fire retardant version
    Yes
  • With sleeve
    No
  • Surface mounting
    Yes
  • Suitable for hollow wall installation
    Yes
  • Machine and systems installation
    Yes
  • Suitable for underground installation
    No
  • Outer diameter
    32 mm
  • High conducting inner coating
    No
  • RAL-number
    7003

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska
