Channel, KPR50H42/3 140205
local index:
TKM034BAKS
Catalog No:
140205
EAN code:
5900993029949
Large-size product
Price:
6,94 €
gross / pcs.
(including VAT 23%)
12,62 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

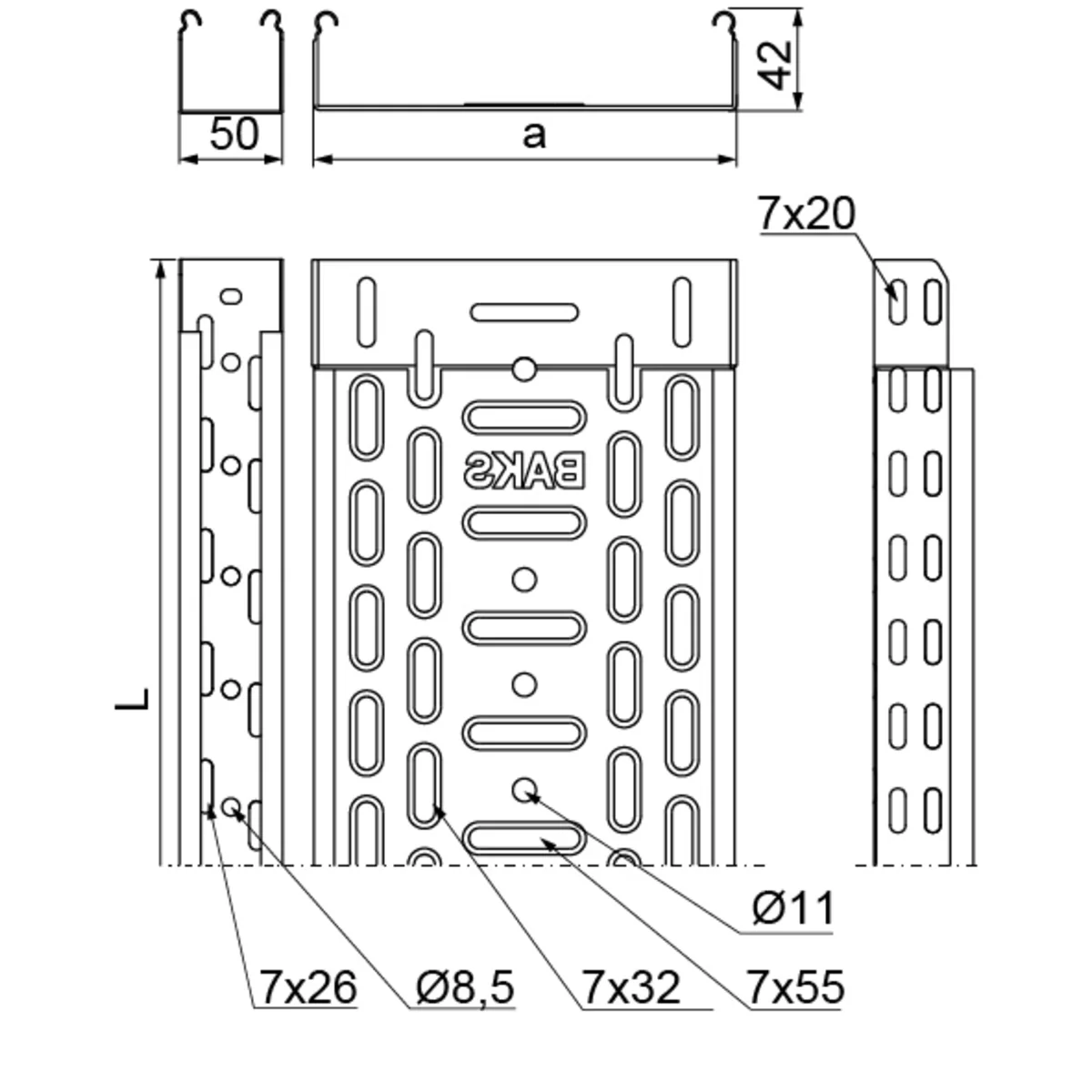

Perforated steel tray for cable routes. Channels with cutouts in the side of the channel can be joined by sliding one into the other, without the use of connectors. Trays without cut-outs can only be connected using connectorsów.
Technical data
-
Length [mm]3000
-
Materialgalvanized steel
-
TypeKPR50H42/3
-
Weight 1m [kg]0.55
-
PKWIU25.11.23.0
-
Sheet thickness [mm]0.5
-
Width [mm]50
-
Weight [g]550
-
Compliance with standardsPN-EN 103462011
Other technical data
-
Height42 mm
-
Material thickness0.5 mm
-
Useful cross section1900 mm²
-
Side perforationYes
-
NATO-mounting holesNo
-
Model szerokorozpiętościowyNo
-
MaterialSteel
-
Material qualityOther
-
ColourOther
-
Width50 mm
-
Length3000 mm
-
With coverNo
-
Bottom perforationYes
-
ModelIntegrated connector
-
Suitable for circuit integrityNo
-
Stainless steel, pickledNo
-
Surface protectionHot-dip galvanized
-
Weight0.55 kg/m
