135729
2
Channel KPR100H42/2 141517
local index:
TKM448BAKS
Catalog No:
141517
EAN code:
5900993179798
Large-size product
Price:
6,10 €
gross / pcs.
(including VAT 23%)
8,36 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

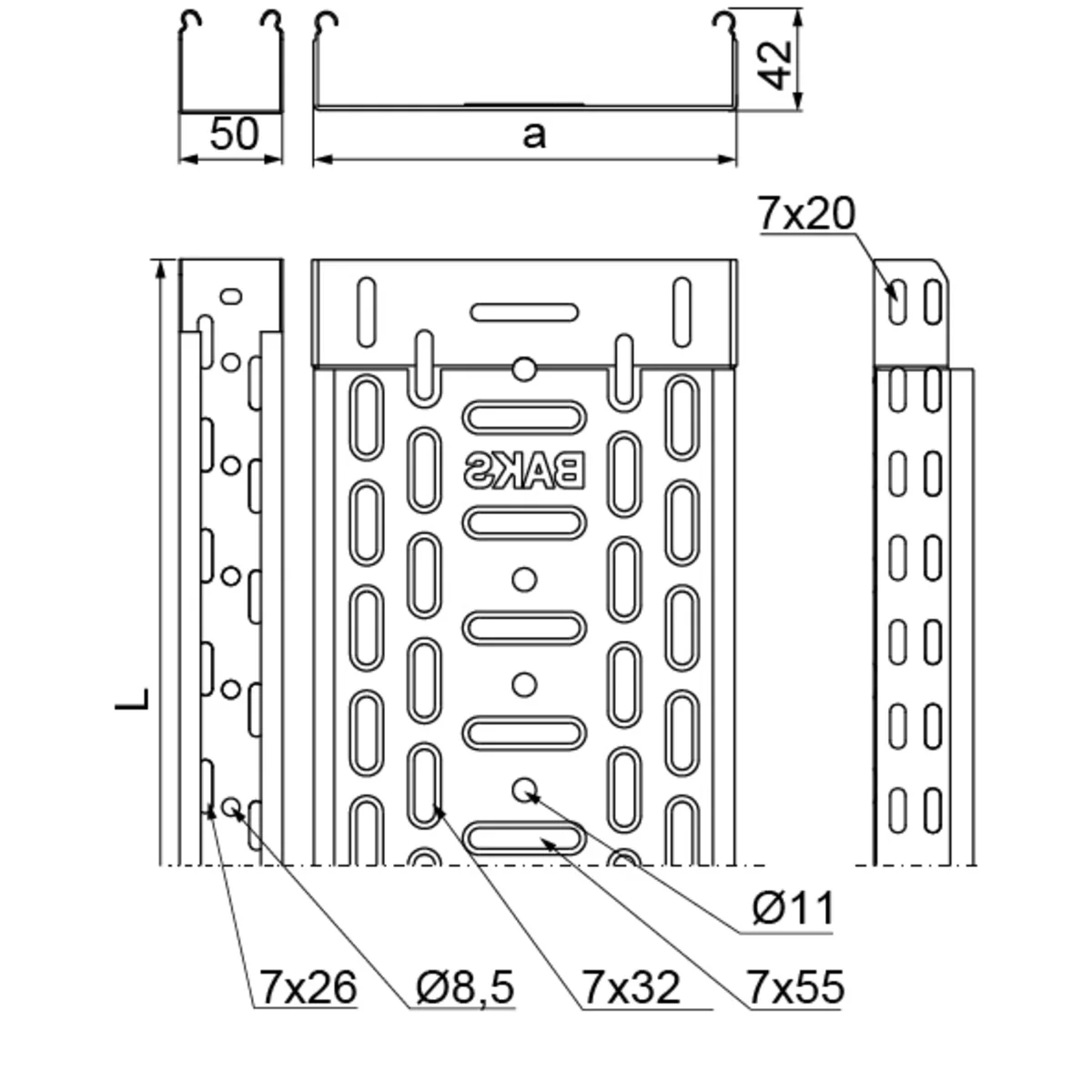

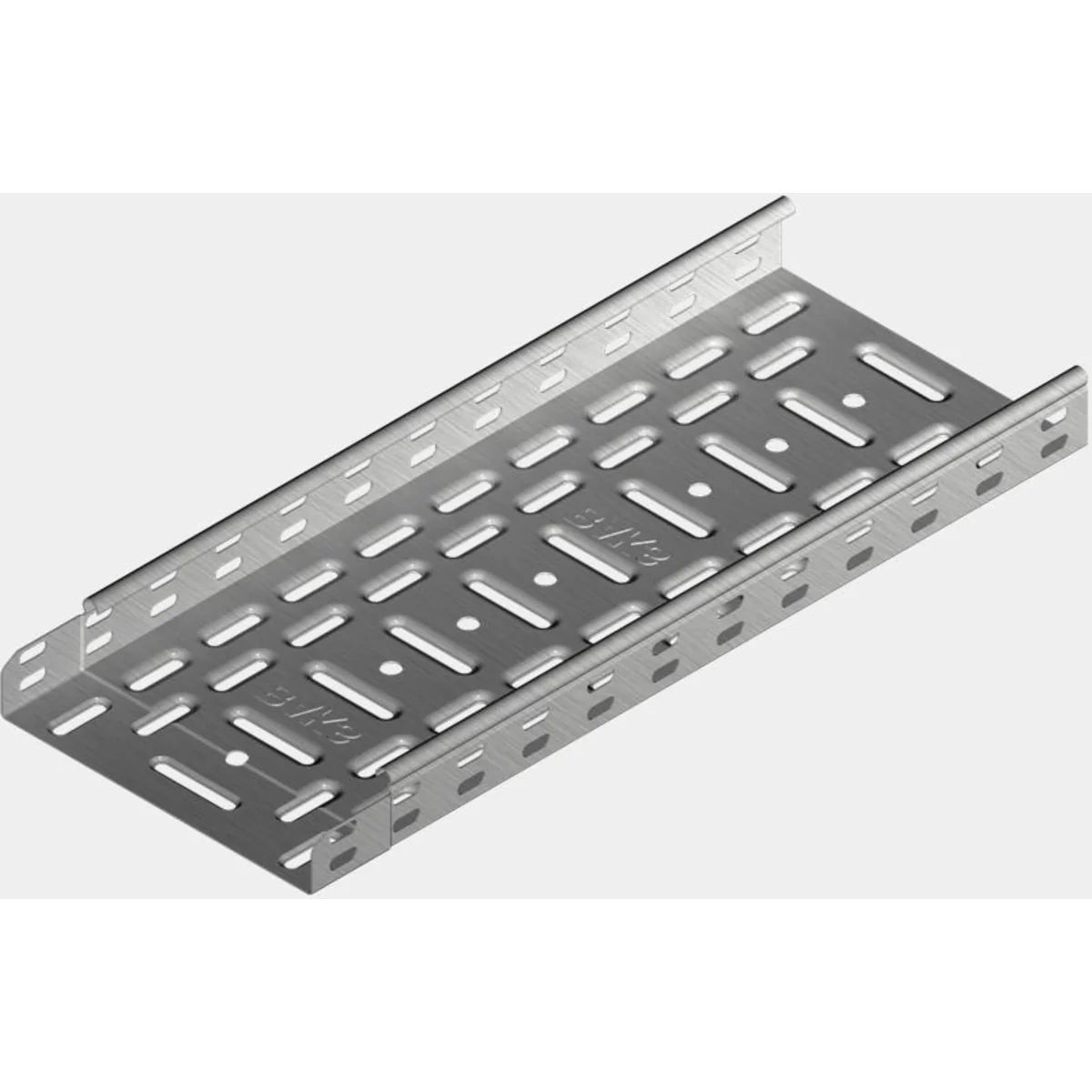

Perforated steel tray for cable routes. Channels with cutouts in the side of the channel can be joined by sliding one into the other, without the use of connectors. Trays without cut-outs can only be connected using connectorsów.
Technical data
-
Length [mm]2000
-
Materialgalvanized steel
-
TypeKPR100H42/2
-
Weight 1m [kg]0.73
-
PKWIU25.11.23.0
-
Sheet thickness [mm]0.5
-
Width [mm]100
-
Weight [g]730
-
Compliance with standardsPN-EN 103462011
Other technical data
-
Height42 mm
-
Material thickness0.5 mm
-
Useful cross section4000 mm²
-
Side perforationYes
-
NATO-mounting holesNo
-
Model szerokorozpiętościowyNo
-
MaterialSteel
-
Material qualityOther
-
ColourOther
-
Width100 mm
-
Length2000 mm
-
With coverNo
-
Bottom perforationYes
-
ModelIntegrated connector
-
Suitable for circuit integrityNo
-
Stainless steel, pickledNo
-
Surface protectionHot-dip galvanized
-
Weight0.74 kg/m
