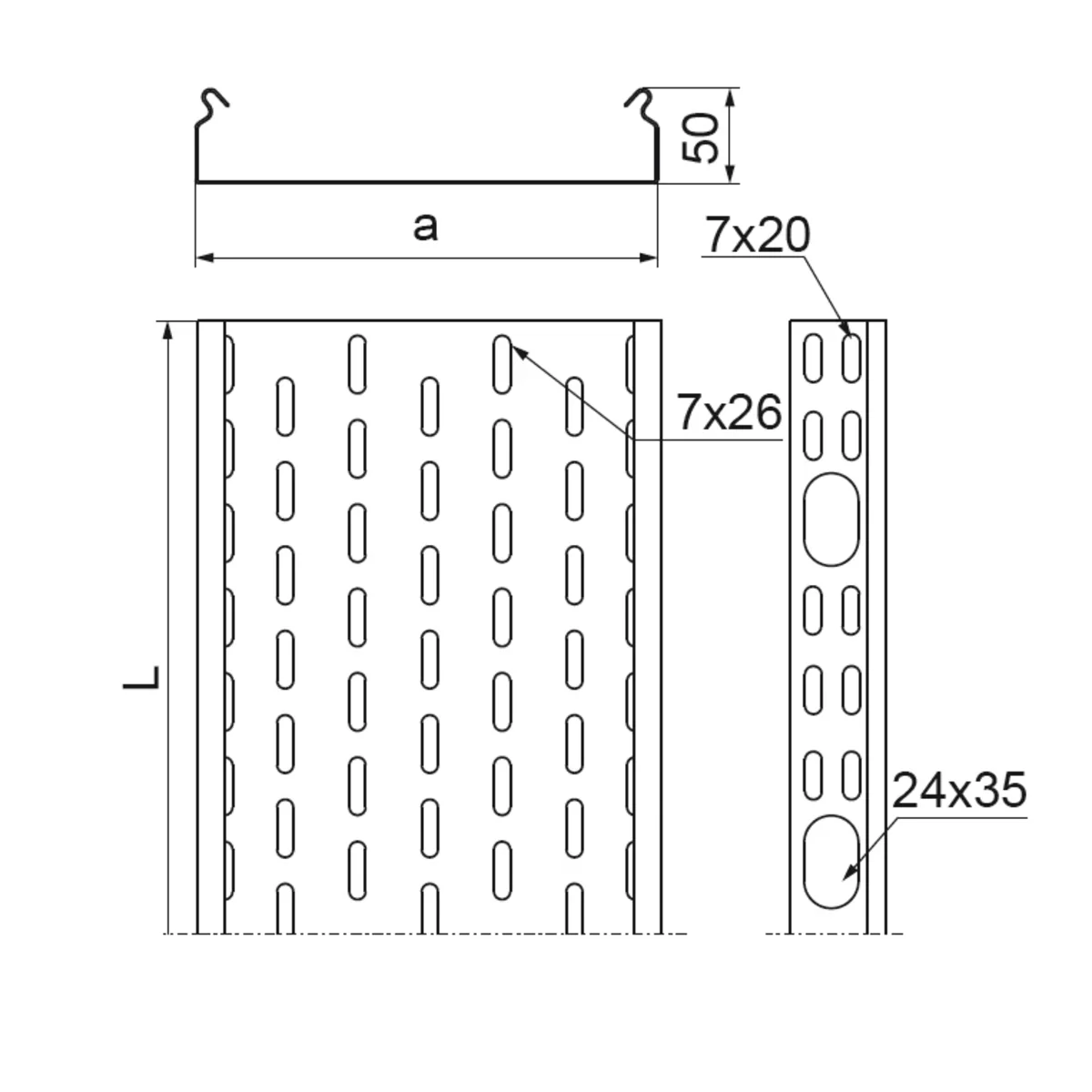

Channel KOP200H50/3 N 151820

local index:
TKM249BAKS
Catalog No:
151820
EAN code:
5900993032666
Manufacturer: BAKS
Sheet thickness [mm]: 1.5
Width [mm]: 200
Large-size product
Price:
37,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Running a cable route.
For assembly, screw sets SGK M6x10 or SG M6x10 should be used.

Technical data

  • Sheet thickness [mm]
    1.5
  • PKWIU
    25.11.23.0
  • Width [mm]
    200

Other technical data

  • Height
    50 mm
  • Material thickness
    1.5 mm
  • Useful cross section
    9800 mm²
  • Side perforation
    yes
  • NATO-mounting holes
    no
  • Model szerokorozpiętościowy
    no
  • Material
    Steel
  • Material quality
    Other
  • Colour
    Other
  • Width
    200 mm
  • Length
    3000 mm
  • With cover
    no
  • Bottom perforation
    yes
  • Model
    Without connector
  • Suitable for circuit integrity
    no
  • Stainless steel, pickled
    no
  • Surface protection
    Hot-dip galvanized
  • Weight
    3.28 kg/m
