Channel, KGR200H30/3 131116
local index:
TKM519BAKS
Catalog No:
131116
EAN code:
5900993106152
Large-size product
Price:
13,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

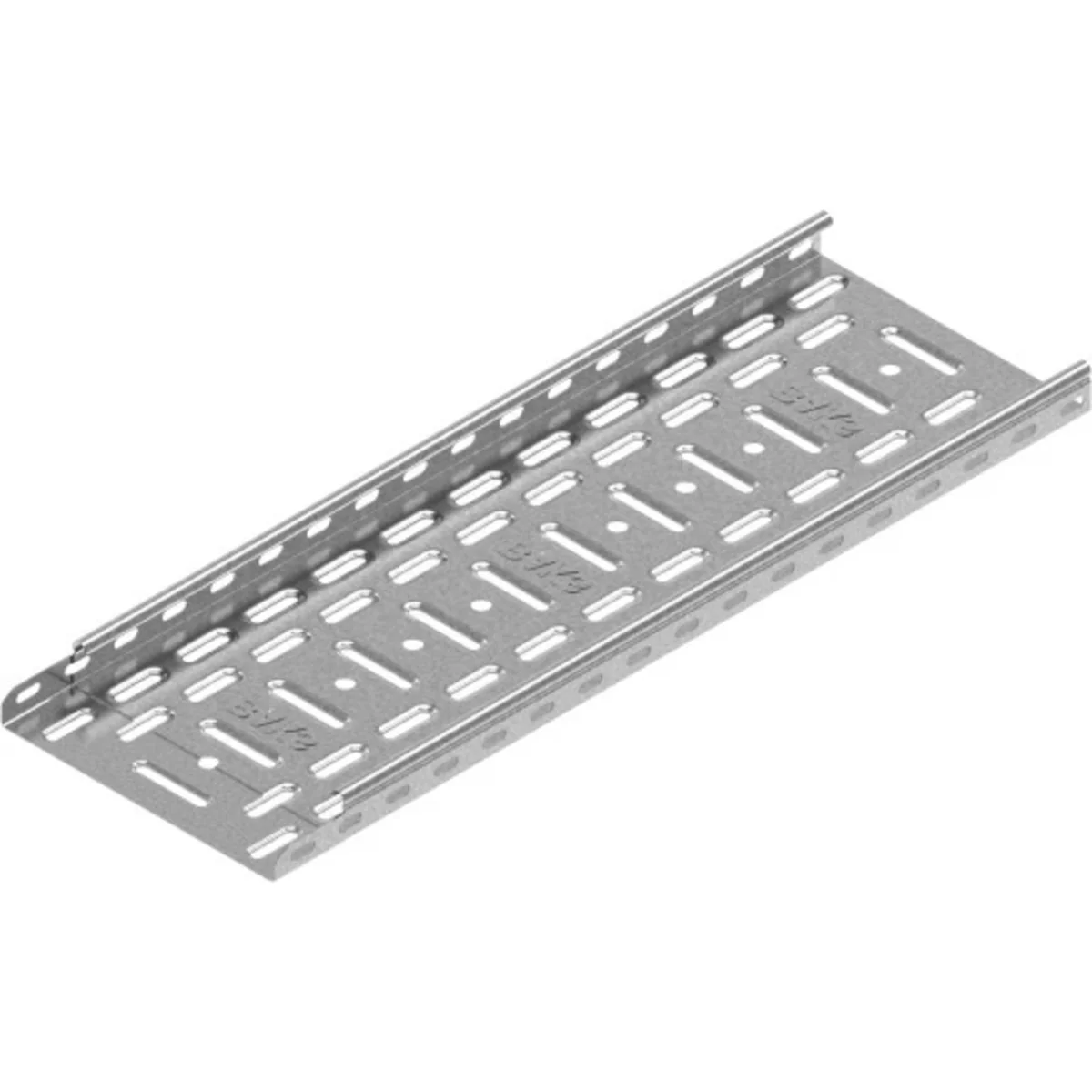

Perforated steel tray for cable routes. Channels with cutouts in the side of the channel can be joined by sliding one into the other, without the use of connectors. Trays without cut-outs can only be connected using connectorsów.
Technical data
-
Length [mm]3000
-
Materialgalvanized steel
-
TypeKGR200H30/3
-
Compliance with standardsPN-EN 103462011
-
Sheet thickness [mm]0.5
-
Width [mm]200
-
Weight 1m [kg]1.04
-
PKWIU25.11.23.0
Other technical data
-
Height30 mm
-
Material thickness0.5 mm
-
Useful cross section5800 mm²
-
Side perforationYes
-
NATO-mounting holesNo
-
Model szerokorozpiętościowyNo
-
MaterialSteel
-
Material qualityOther
-
ColourOther
-
Width200 mm
-
Length3000 mm
-
With coverNo
-
Bottom perforationYes
-
ModelIntegrated connector
-
Suitable for circuit integrityNo
-
Stainless steel, pickledNo
-
Surface protectionHot-dip galvanized
-
Weight1.04 kg/m
