Running cables and wires
Channels
Metal channels

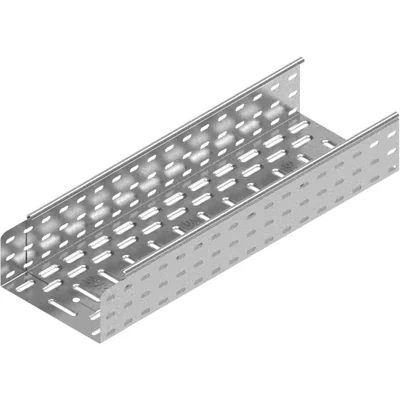

Channel, KGJ500H100/3 111316
local index:
TKM522BAKS
Catalog No:
111316
EAN code:
5900993109122
Click on the photo to enlarge
Manufacturer:
BAKS
Length [mm]:
3000
Sheet thickness [mm]:
1
Material:
galvanized steel
See full description
Large-size product
Price:
55,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
The possibility of connecting the trays by sliding one into the other and assembly without connectors. Screw sets SGK M6x12 or SG M6x12 should be used for assembly.

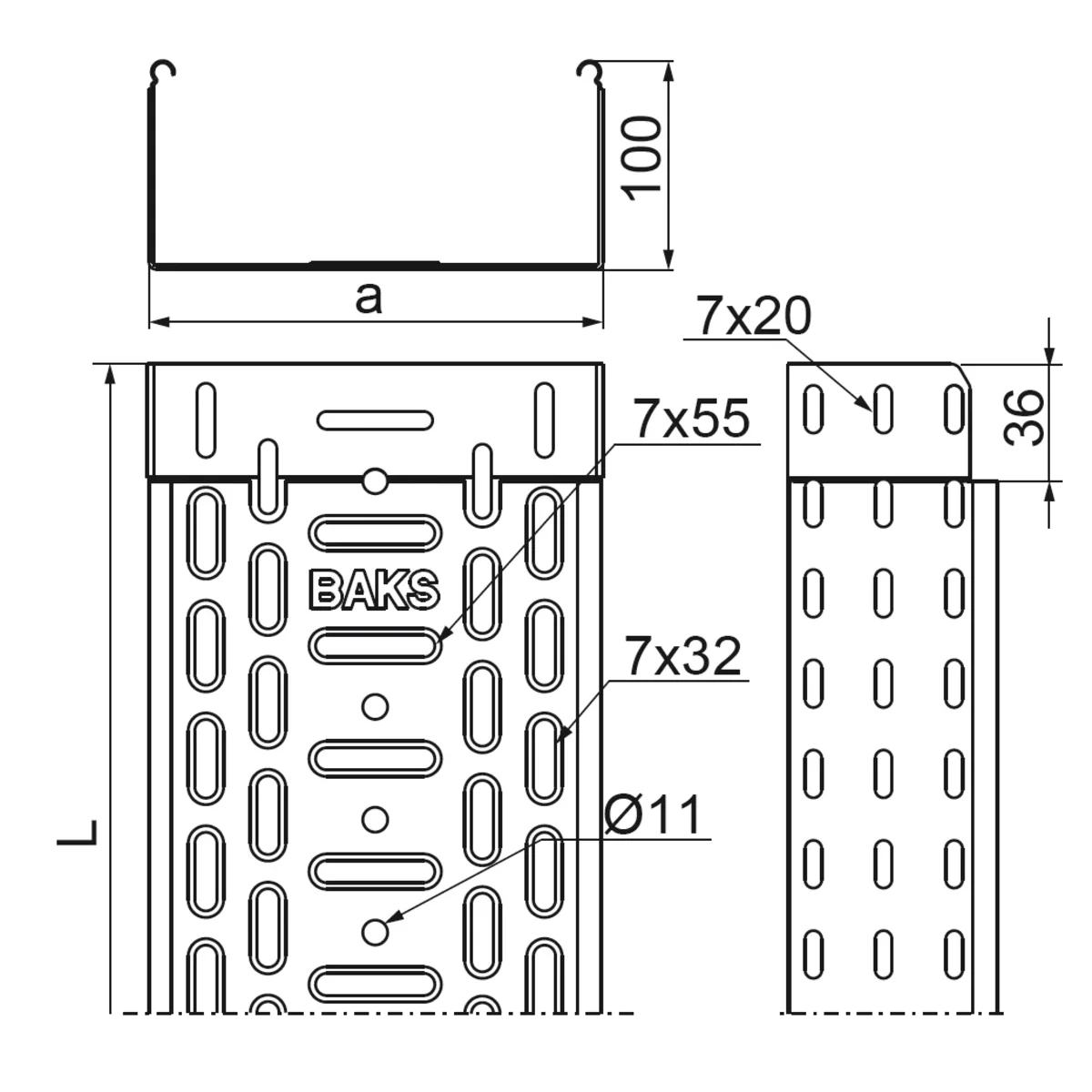

Technical data
Length [mm]
3000
Material
galvanized steel
Type
KGJ500H100/3
Compliance with standards
PN-EN 103462011
Sheet thickness [mm]
1
Width [mm]
500
Weight 1m [kg]
4.85
PKWIU
25.11.23.0
Other technical data
Height
100 mm
Material thickness
1 mm
Useful cross section
49800 mm²
Side perforation
Yes
NATO-mounting holes
No
Model szerokorozpiętościowy
No
Material
Steel
Material quality
Other
Colour
Other
Width
500 mm
Length
3000 mm
With cover
No
Bottom perforation
Yes
Model
Integrated connector
Suitable for circuit integrity
No
Stainless steel, pickled
No
Surface protection
Hot-dip galvanized
Weight
4.46 kg/m
Files to download
BAKS-TM-BS-EN.pdf
Certyfikat-i-raport-VDE-ciągłość-elektryczna-koryt-drabin-i-ceowników-EN_DE.pdf
iso_pl.pdf
iso2_pl.pdf
Rekomendacja-Techniczna-ITB-RT1082_2012.pdf
SKM_C284e19060514120.pdf
Atest-Higieniczny.pdf
Deklaracja-Zgodności-CE-2020.10.16-standard.pdf
Atest-Higieniczny.pdf
BAKS-TM-BS-EN.pdf
Certyfikat-i-raport-VDE-ciągłość-elektryczna-koryt-drabin-i-ceowników-EN_DE.pdf
