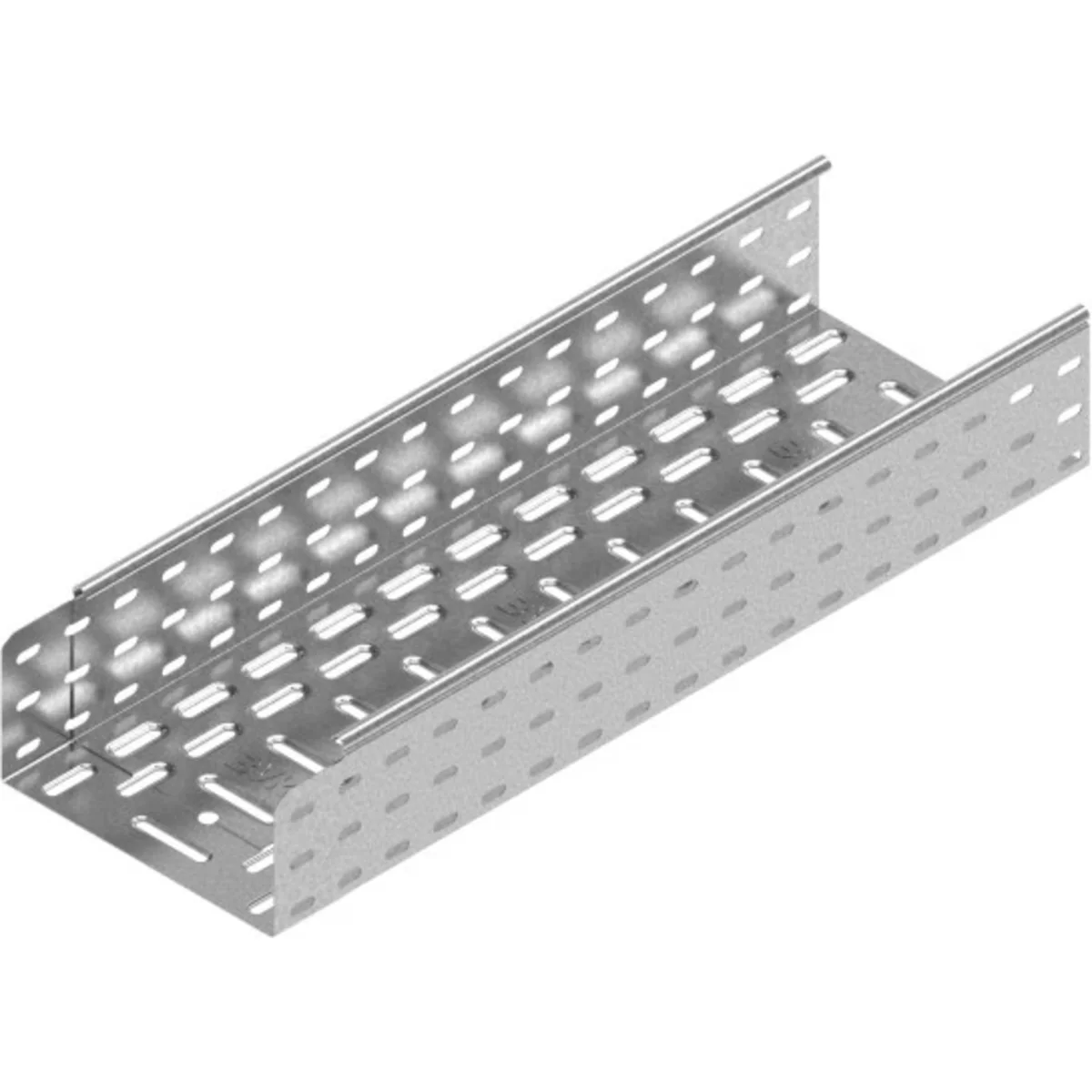

Channel, KGJ400H100/3 111216
local index:
TKM526BAKS
Catalog No:
111216
EAN code:
5900993109115
Large-size product
Price:
48,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The possibility of connecting the trays by sliding one into the other and assembly without connectors. Screw sets SGK M6x12 or SG M6x12 should be used for assembly.
Technical data
-
Length [mm]3000
-
Materialgalvanized steel
-
TypeKGJ400H100/3
-
Compliance with standardsPN-EN 103462011
-
Sheet thickness [mm]1
-
Width [mm]400
-
Weight 1m [kg]4.19
-
PKWIU25.11.23.0
Other technical data
-
Height100 mm
-
Material thickness1 mm
-
Useful cross section39800 mm²
-
Side perforationYes
-
NATO-mounting holesNo
-
Model szerokorozpiętościowyNo
-
MaterialSteel
-
Material qualityOther
-
ColourOther
-
Width400 mm
-
Length3000 mm
-
With coverNo
-
Bottom perforationYes
-
ModelIntegrated connector
-
Suitable for circuit integrityNo
-
Stainless steel, pickledNo
-
Surface protectionHot-dip galvanized
-
Weight4.03 kg/m
