BAKS

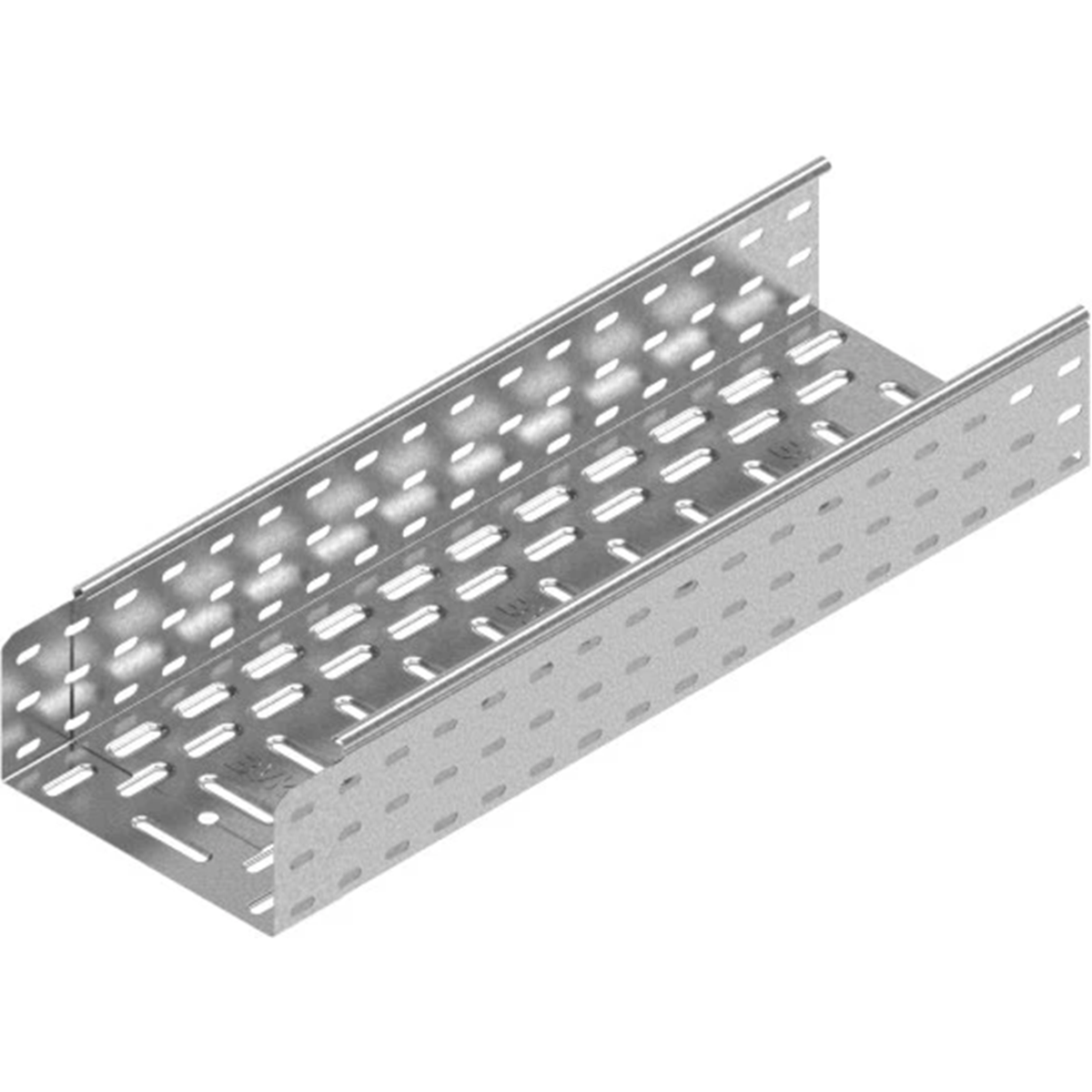

Channel, KGJ300H100/3 111116

local index:
TKM017BAKS
Catalog No:
111116
EAN code:
5900993109108
Price:
41,99 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
Large-size product
From 68,97 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

The possibility of connecting the trays by sliding one into the other and assembly without connectors. Screw sets SGK M6x12 or SG M6x12 should be used for assembly.

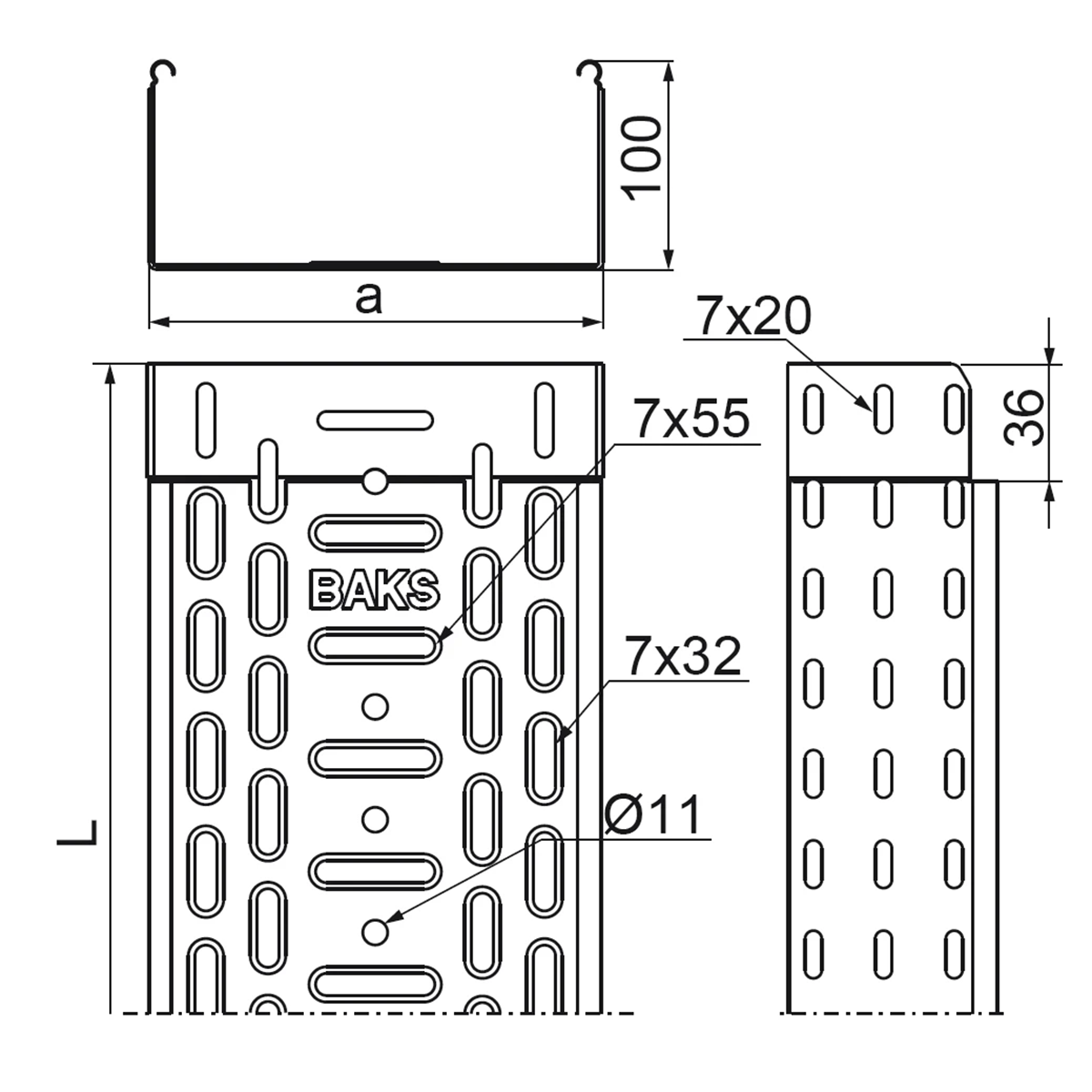

Technical data

  • Length [mm]
    3000
  • Material
    galvanized steel
  • Type
    KGJ300H100/3
  • Compliance with standards
    PN-EN 103462011
  • Sheet thickness [mm]
    1
  • Width [mm]
    300
  • Weight 1m [kg]
    3.52

Other technical data

  • Height
    100 mm
  • Material thickness
    1 mm
  • Useful cross section
    29800 mm²
  • Side perforation
    yes
  • NATO-mounting holes
    no
  • Model szerokorozpiętościowy
    no
  • Material
    Steel
  • Material quality
    Other
  • Colour
    Other
  • Width
    300 mm
  • Length
    3000 mm
  • With cover
    no
  • Bottom perforation
    yes
  • Model
    Integrated connector
  • Suitable for circuit integrity
    no
  • Stainless steel, pickled
    no
  • Surface protection
    Hot-dip galvanized
  • Weight
    3.38 kg/m
