135692
2

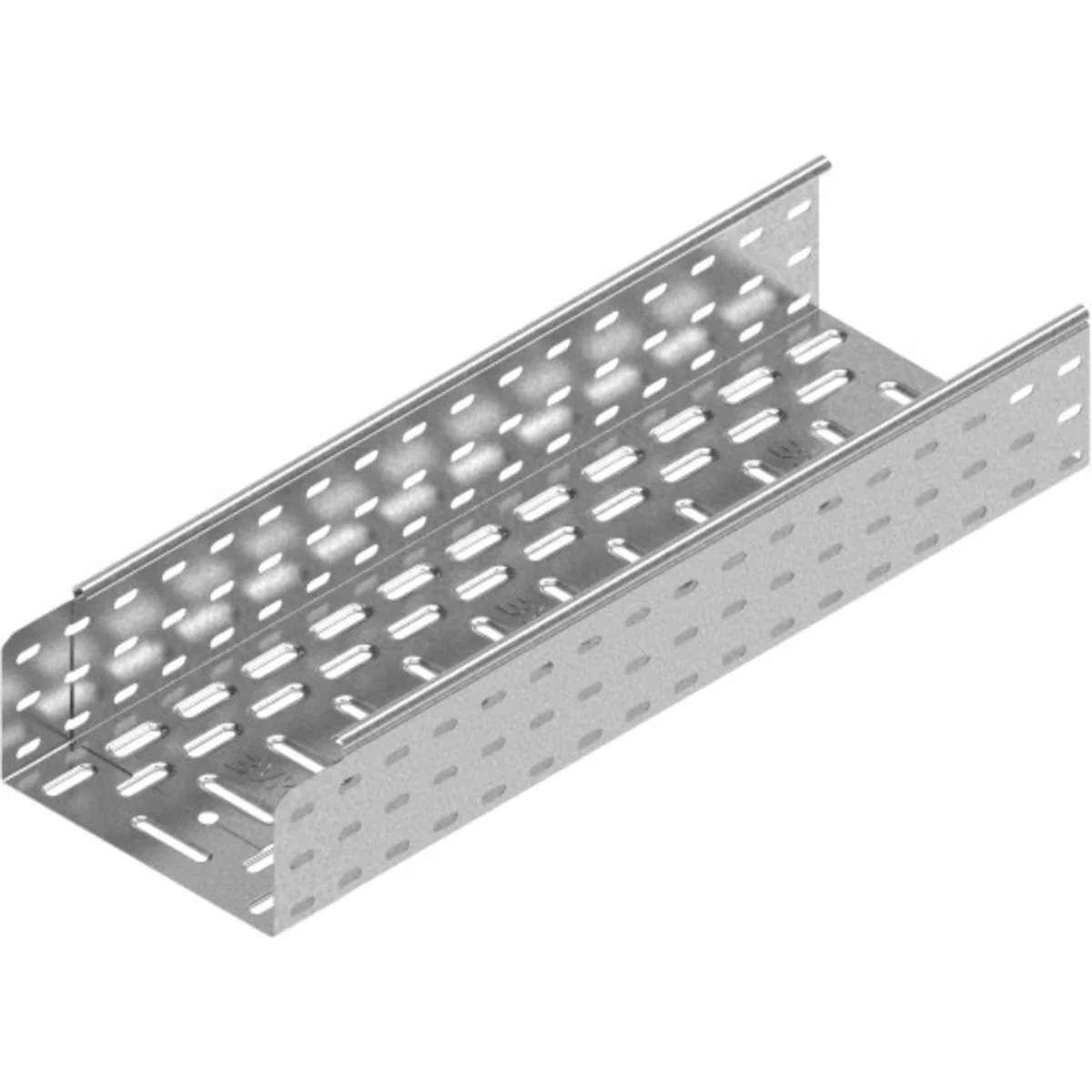

Channel, KGJ200H100/3 111016
local index:
TKM517BAKS
Catalog No:
111016
EAN code:
5900993109092
Large-size product
Price:
34,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The possibility of connecting the trays by sliding one into the other and assembly without connectors. Screw sets SGK M6x12 or SG M6x12 should be used for assembly.

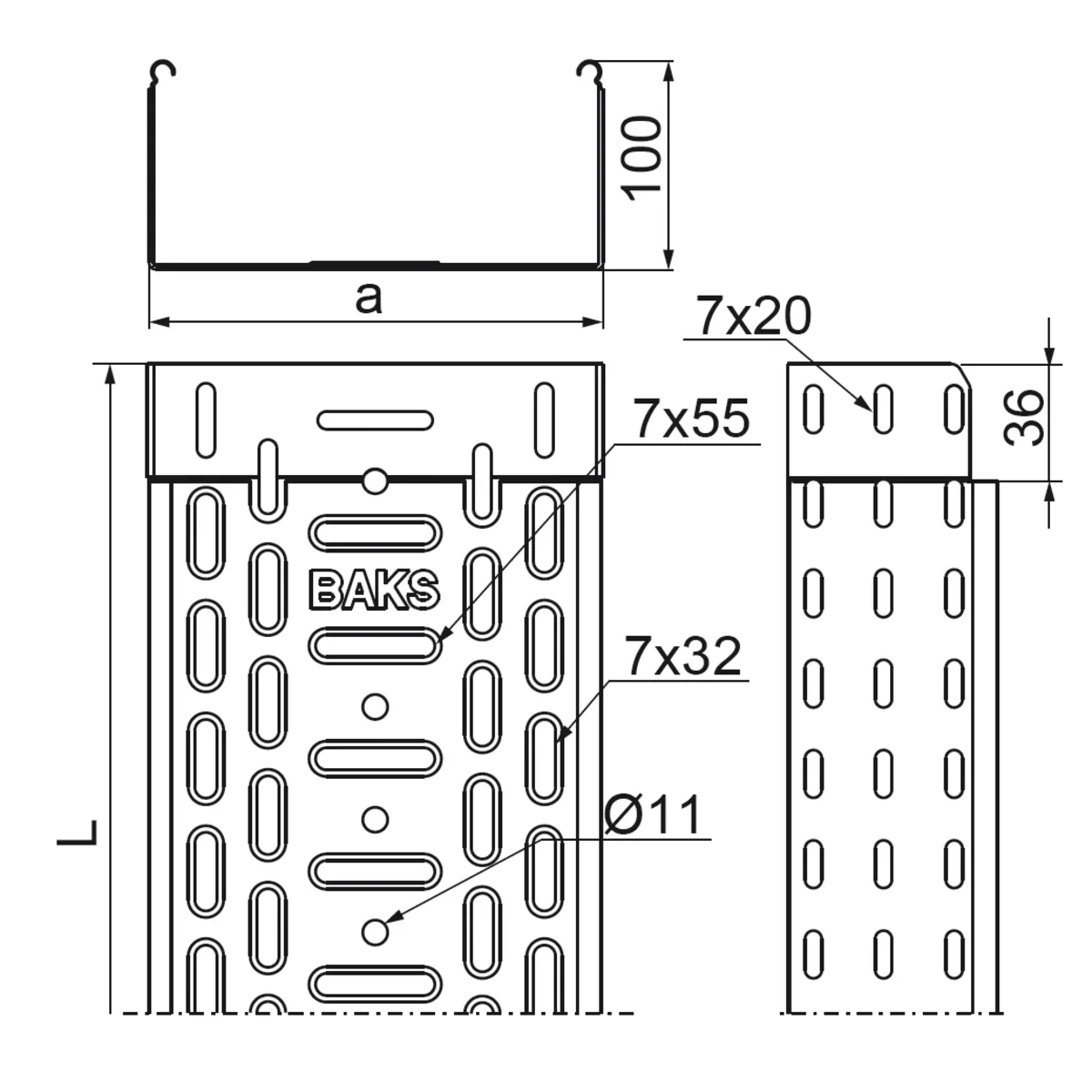

Technical data
-
Length [mm]3000
-
Materialgalvanized steel
-
TypeKGJ200H100/3
-
Compliance with standardsPN-EN 103462011
-
Sheet thickness [mm]1
-
Width [mm]200
-
Weight 1m [kg]2.85
-
PKWIU25.11.23.0
Other technical data
-
Height100 mm
-
Material thickness1 mm
-
Useful cross section19800 mm²
-
Side perforationYes
-
NATO-mounting holesNo
-
Model szerokorozpiętościowyNo
-
MaterialSteel
-
Material qualityOther
-
ColourOther
-
Width200 mm
-
Length3000 mm
-
With coverNo
-
Bottom perforationYes
-
ModelIntegrated connector
-
Suitable for circuit integrityNo
-
Stainless steel, pickledNo
-
Surface protectionHot-dip galvanized
-
Weight2.56 kg/m
Manufacturer details
-
ManufacturerBAKS Kazimierz Sielski
-
Address05-480 KARCZEW JAGODNE 5
-
Phone number
-
E-mail
-
Tax identification number5320102041
-
GLN5909000679306
