135390
2

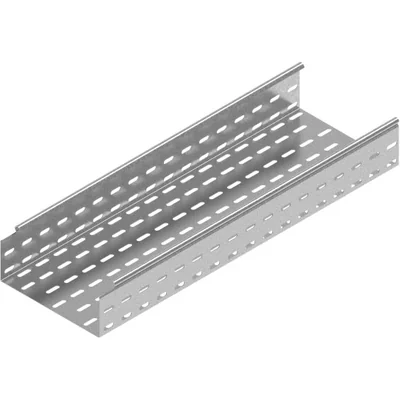

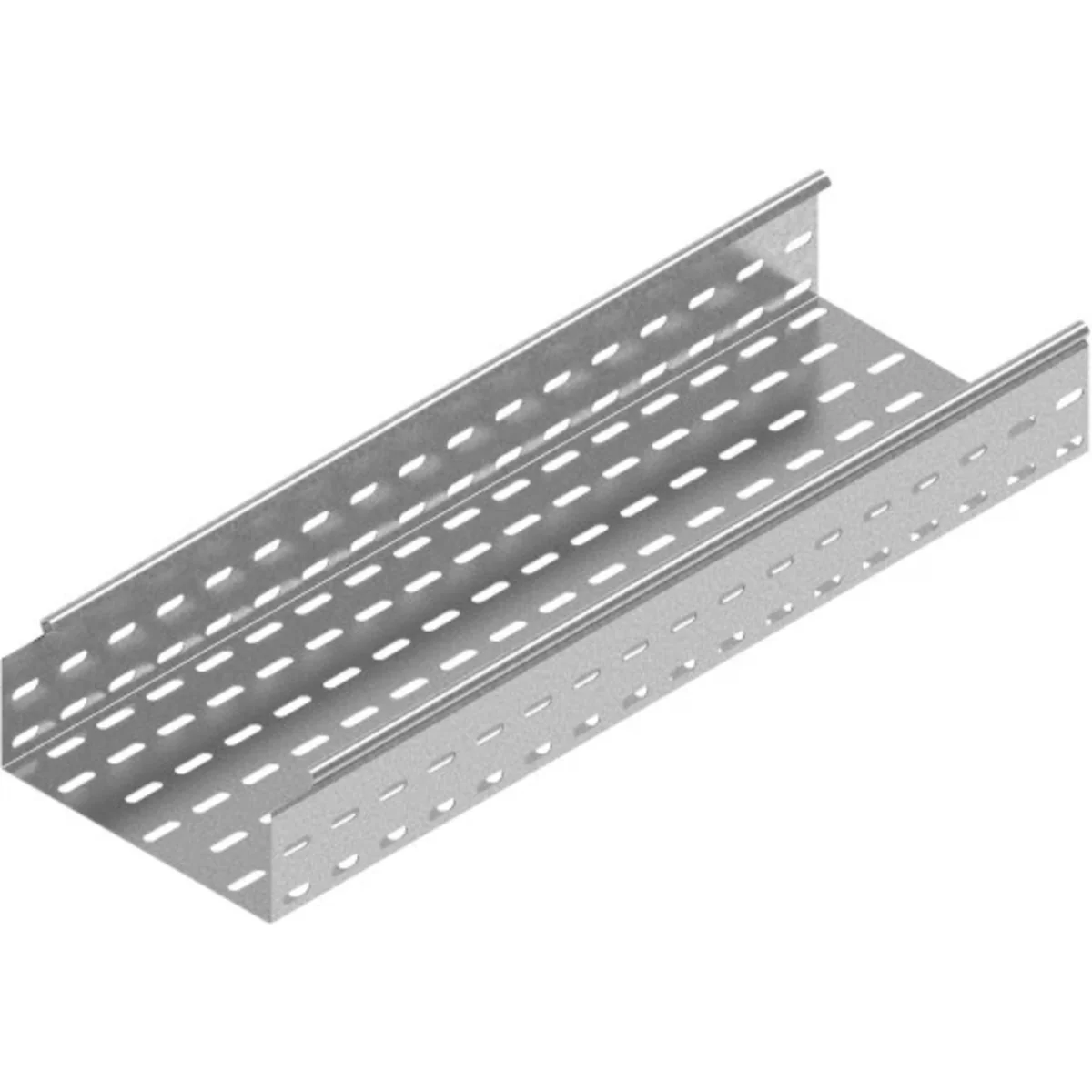

Channel KCL100H80/3 N 180210
local index:
TKM205BAKS
Catalog No:
180210
EAN code:
5900993035285
Large-size product
Price:
19,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Running a cable route.
The possibility of connecting the trays by sliding
one into the other and assembly without connectors.
Trays with a length of 6 m for large orders.
For assembly, use screw sets
SGK M6x12 or SG M6x12
The possibility of connecting the trays by sliding
one into the other and assembly without connectors.
Trays with a length of 6 m for large orders.
For assembly, use screw sets
SGK M6x12 or SG M6x12

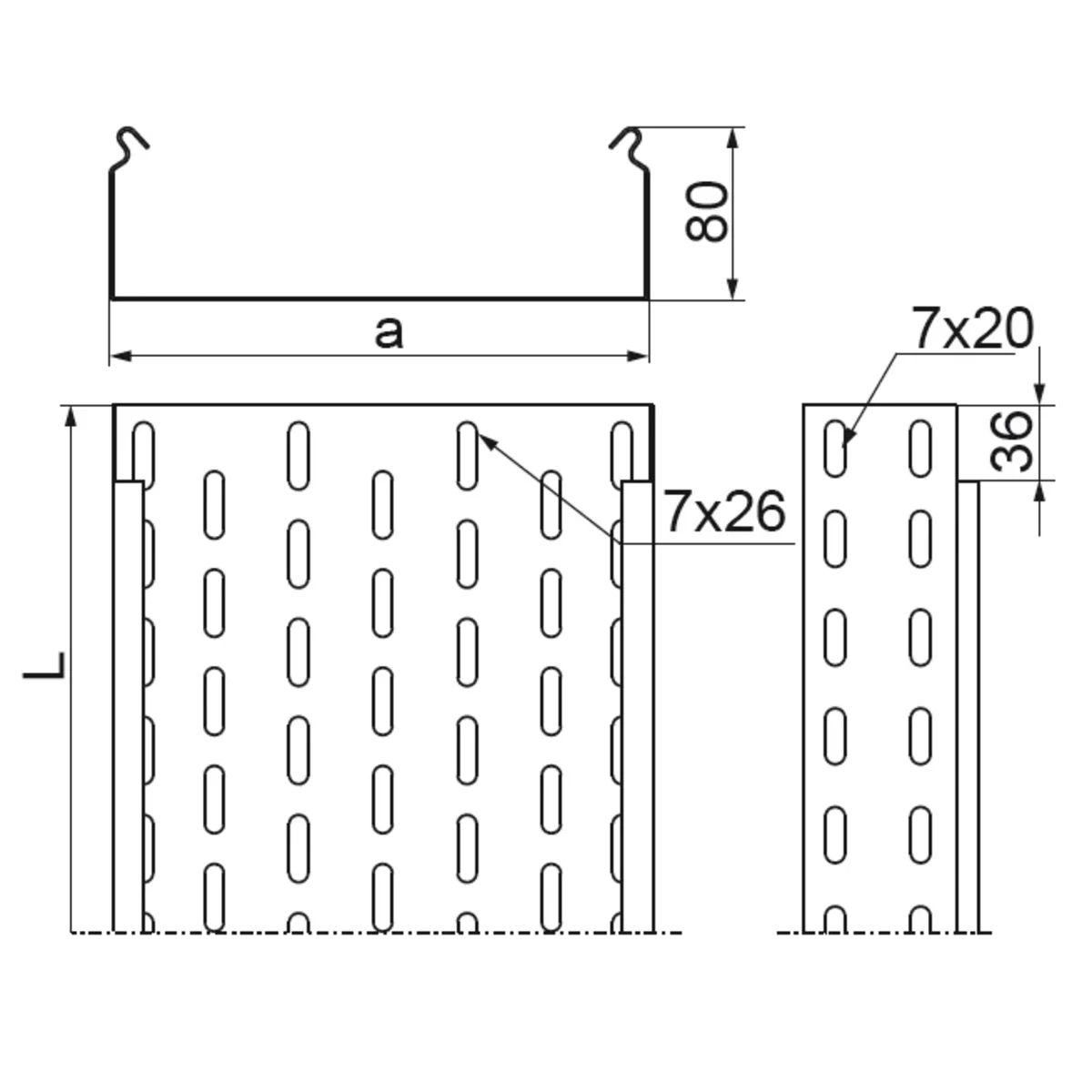

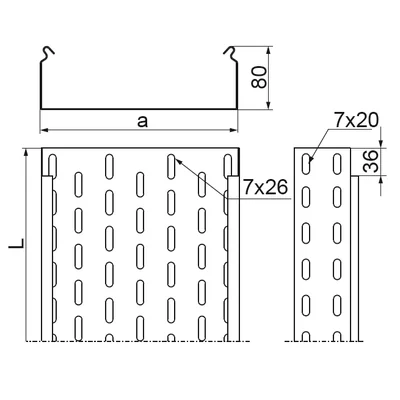

Technical data
-
Length [mm]3000
-
PKWIU25.11.23.0
-
Width [mm]100
Other technical data
-
Height80 mm
-
Material thickness0.7 mm
-
Useful cross section7800 mm²
-
Side perforationYes
-
NATO-mounting holesNo
-
Model szerokorozpiętościowyNo
-
MaterialSteel
-
Material qualityOther
-
ColourOther
-
Width100 mm
-
Length3000 mm
-
With coverNo
-
Bottom perforationYes
-
ModelIntegrated connector
-
Suitable for circuit integrityNo
-
Stainless steel, pickledNo
-
Surface protectionHot-dip galvanized
-
Weight1.4 kg/m
