el12 Running cables and wires Channels Metal channels Channel, KBJ50H50/3
Channel, KBJ50H50/3

Click on the photo to enlarge

Channel, KBJ50H50/3
BAKS

Channel, KBJ50H50/3 152205

local index:
TKM488BAKS
Catalog No:
152205
EAN code:
5900993032925
Price:
13,27 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 30 pcs.
Delivery:
Large-size product
From 65,01 € (prepaid courier) Details
Estimated delivery time:
DHL 1-3 business days

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

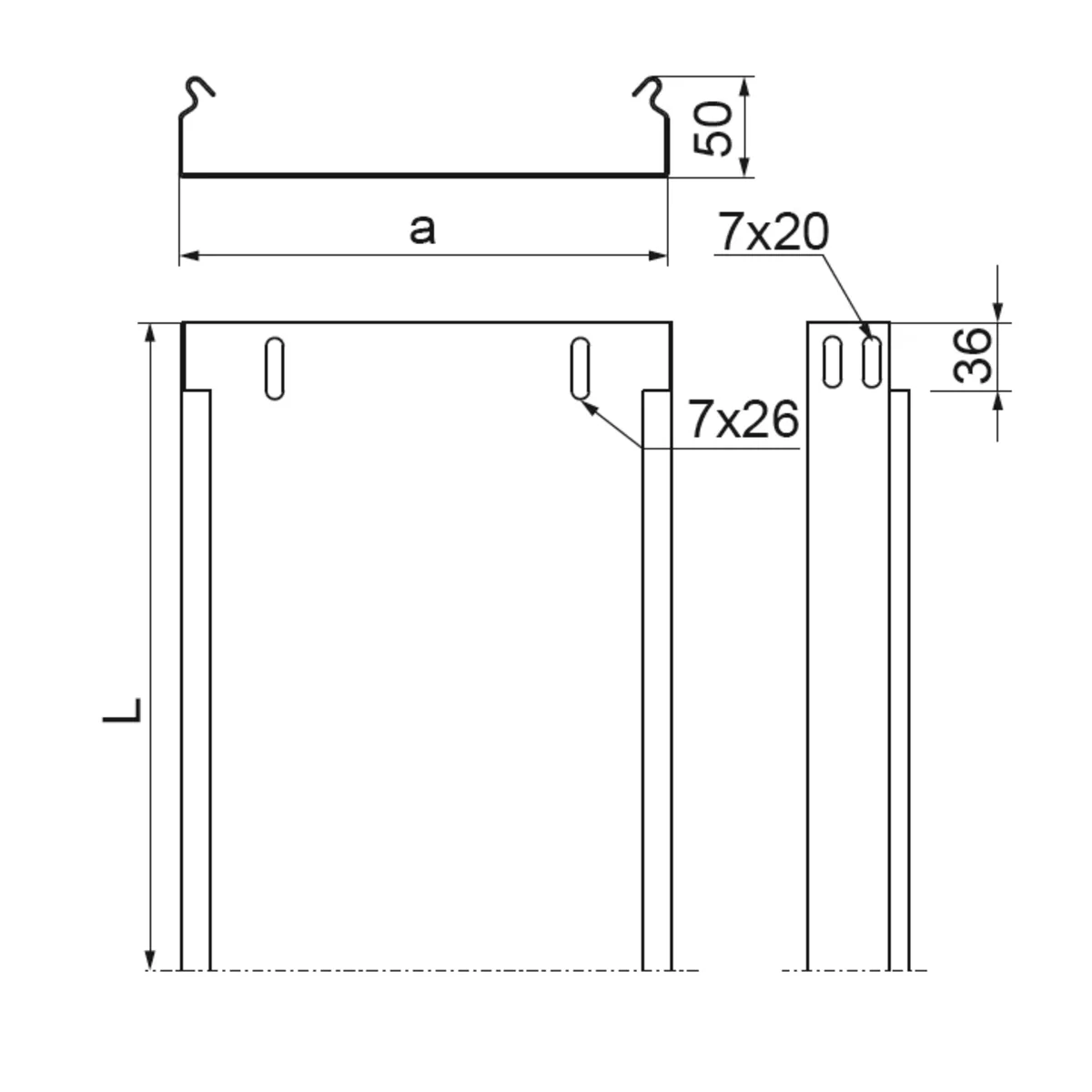

Perforated steel tray for  cable routes. Channels with cutouts in the side of the channel can be joined by sliding one into the other, without the use of connectors. Trays without cut-outs can only be connected using connectorsów.

Print the product sheet Report an error

Technical data

  • Length [mm]
    3000
  • Material
    galvanized steel
  • Type
    KBJ50H50/3
  • Compliance with standards
    PN-EN 103462011
  • Sheet thickness [mm]
    1
  • Width [mm]
    50
  • Weight 1m [kg]
    1.44

Other technical data

  • Height
    50 mm
  • Material thickness
    1 mm
  • Useful cross section
    2300 mm²
  • Side perforation
    no
  • NATO-mounting holes
    no
  • Model szerokorozpiętościowy
    no
  • Material
    Steel
  • Material quality
    Other
  • Colour
    Other
  • Width
    50 mm
  • Length
    3000 mm
  • With cover
    no
  • Bottom perforation
    no
  • Model
    Integrated connector
  • Suitable for circuit integrity
    no
  • Stainless steel, pickled
    no
  • Surface protection
    Hot-dip galvanized
  • Weight
    1.41 kg/m
