Channel, KBJ100H50/3 152210
local index:
TKM492BAKS
Catalog No:
152210
EAN code:
5900993032949
Large-size product
Price:
18,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

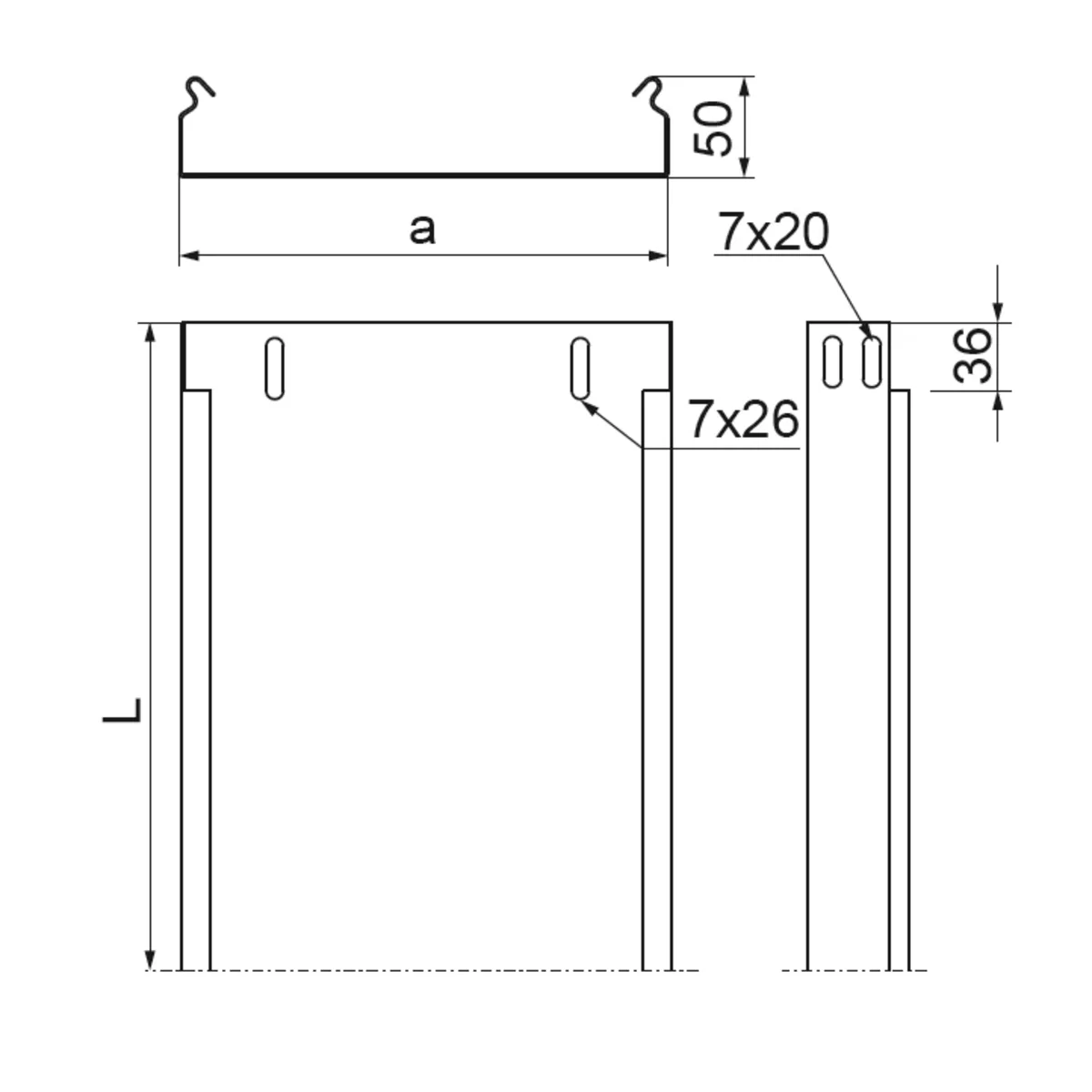

Perforated steel tray for cable routes. Channels with cutouts in the side of the channel can be joined by sliding one into the other, without the use of connectors. Trays without cut-outs can only be connected using connectorsów.
Technical data
-
Length [mm]3000
-
Materialgalvanized steel
-
TypeKBJ100H50/3
-
Compliance with standardsPN-EN 103462011
-
Sheet thickness [mm]1
-
Width [mm]100
-
Weight 1m [kg]1.84
-
PKWIU25.11.23.0
Other technical data
-
Height50 mm
-
Material thickness1 mm
-
Useful cross section4800 mm²
-
Side perforationNo
-
NATO-mounting holesNo
-
Model szerokorozpiętościowyNo
-
MaterialSteel
-
Material qualityOther
-
ColourOther
-
Width100 mm
-
Length3000 mm
-
With coverNo
-
Bottom perforationNo
-
ModelIntegrated connector
-
Suitable for circuit integrityNo
-
Stainless steel, pickledNo
-
Surface protectionHot-dip galvanized
-
Weight1.63 kg/m
Manufacturer details
-
ManufacturerBAKS Kazimierz Sielski
-
Address05-480 KARCZEW JAGODNE 5
-
Phone number
-
E-mail
-
Tax identification number5320102041
-
GLN5909000679306
