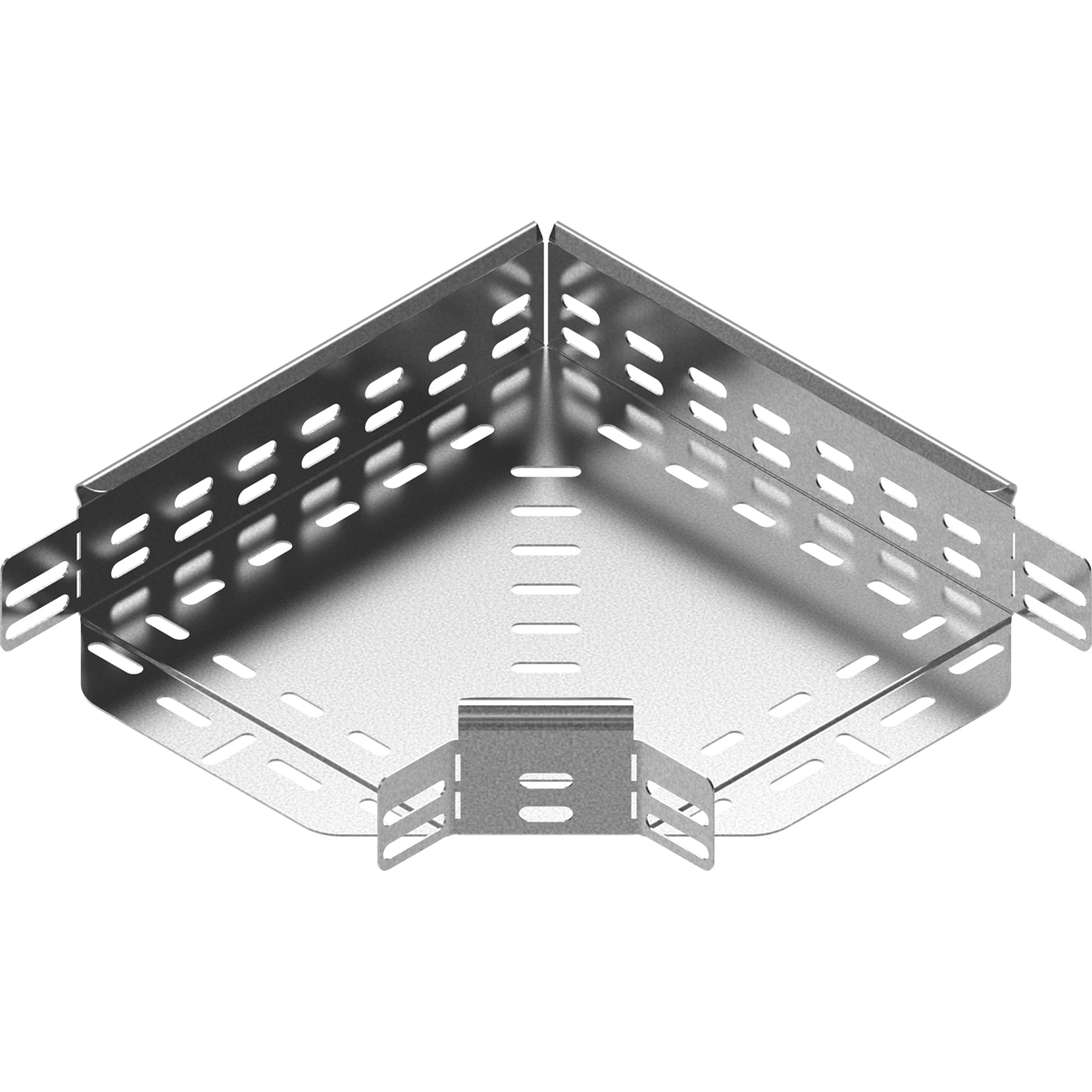

90° elbow, KKJ200H60 166220

local index:
TAK340BAKS
Catalog No:
166220
EAN code:
5900993022919
Manufacturer: BAKS
Sheet thickness [mm]: 1
Material: galvanized steel
Width [mm]: 200
Price:
9,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Elbow to change the direction of the cable route

Technical data

  • Sheet thickness [mm]
    1
  • Width [mm]
    200
  • Weight 1 piece [kg]
    0.79
  • PKWIU
    25.11.23.0
  • Material
    galvanized steel
  • Type
    KKJ200H60
  • Compliance with standards
    PN-EN 103462011

Other technical data

  • Modular spacing
    12.5 mm
  • Suitable for enclosure building depth
    0 mm
  • Height
    58.5 mm
  • Surface finishing
    Galvanized
  • RAL-number
    0
  • Number of height units
    0
  • Construction type
    Individual part
  • For internal separation form 2b
    yes
  • For internal separation form 3b
    yes
  • For internal separation form 4b
    yes
  • Suitable for enclosure building width
    600 mm
  • Width
    509 mm
  • Material
    Steel
  • Colour
    Stainless steel
  • With cable entry
    no
  • With lock
    no
  • For internal separation form 2a
    yes
  • For internal separation form 3a
    yes
  • For internal separation form 4a
    yes
