2-pole residual current device P312 B 20A 30mA AC 410922

local index:
TAK673BAKS
Catalog No:
410922
EAN code:
5900993132335
Manufacturer: BAKS
Material: galvanized steel
Width [mm]: 200

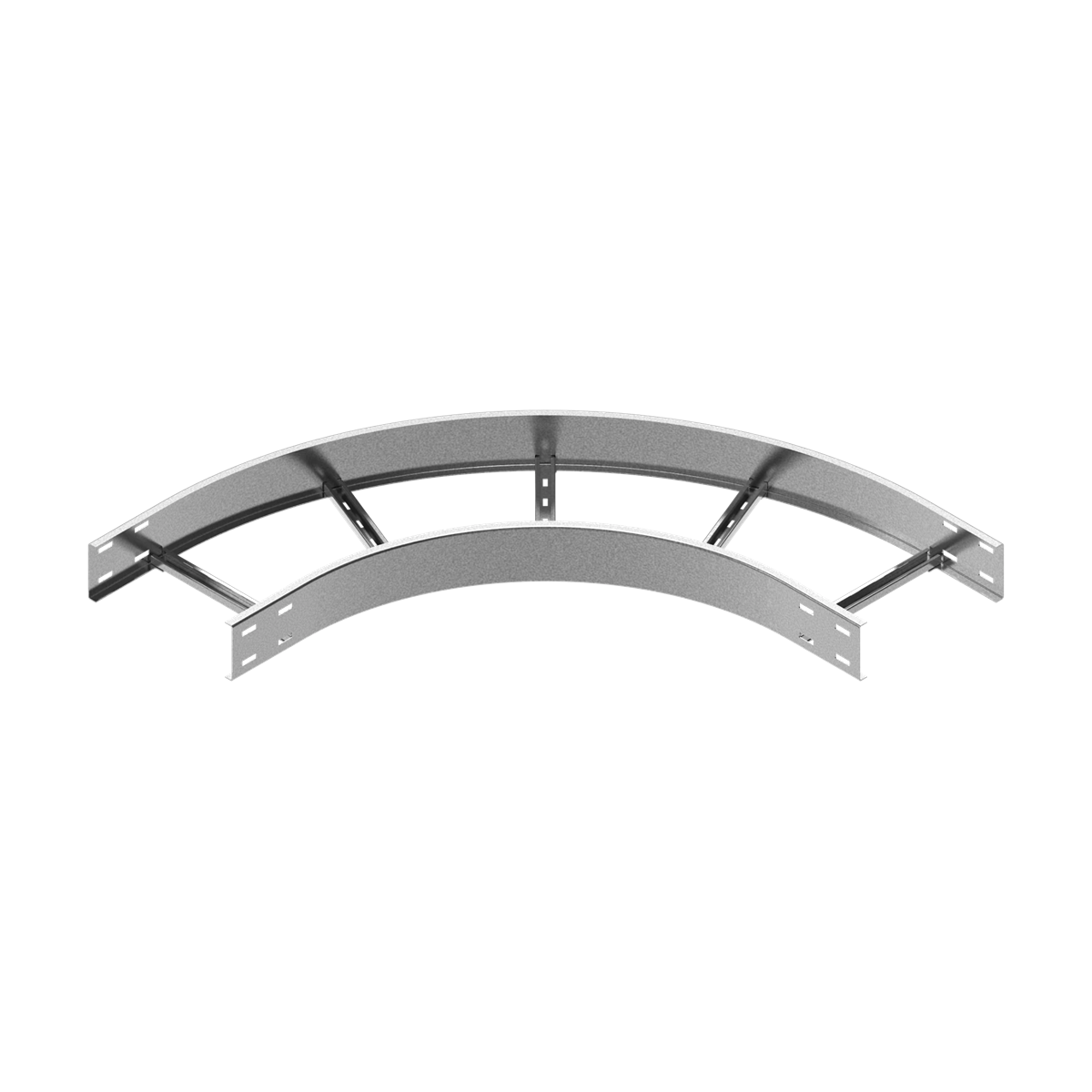

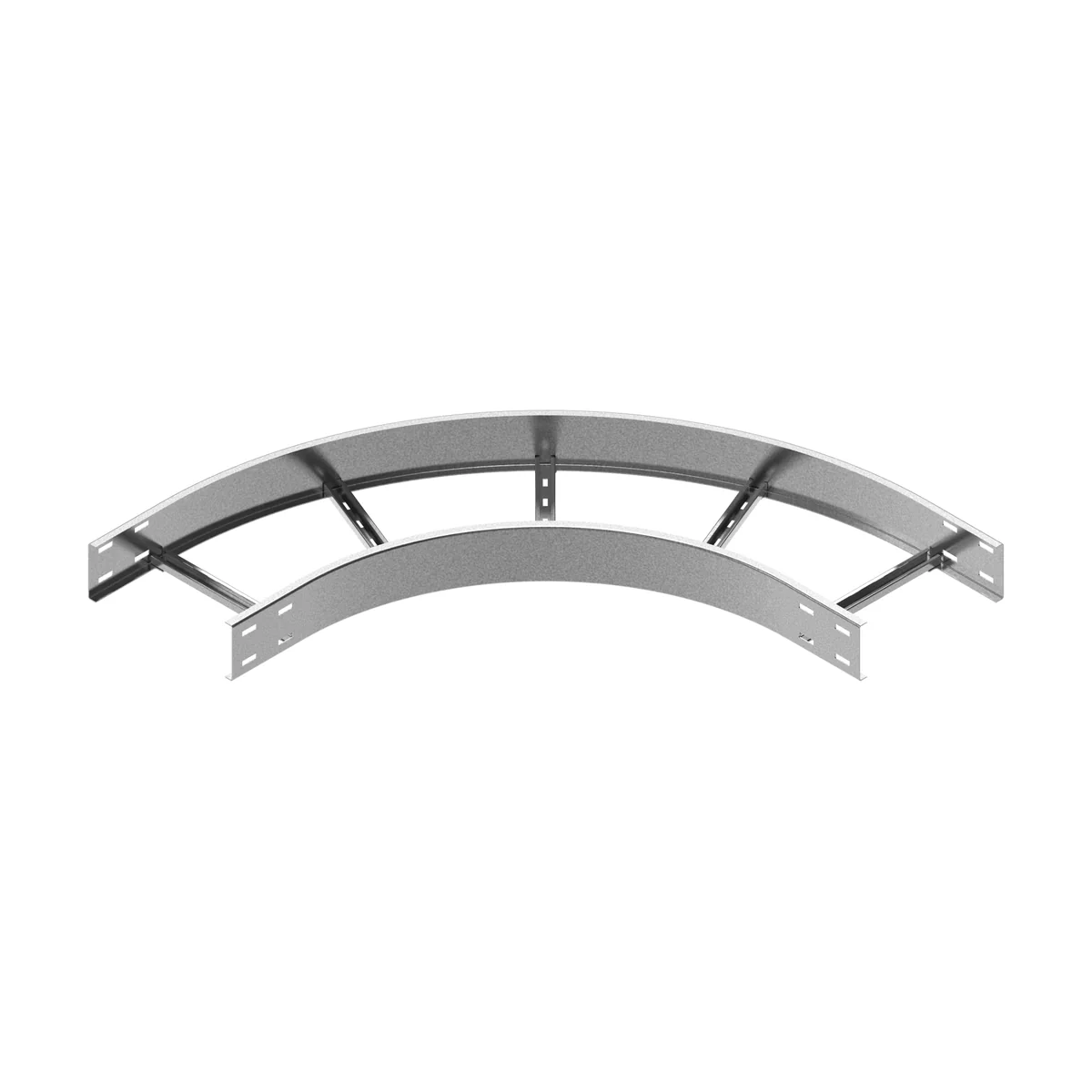

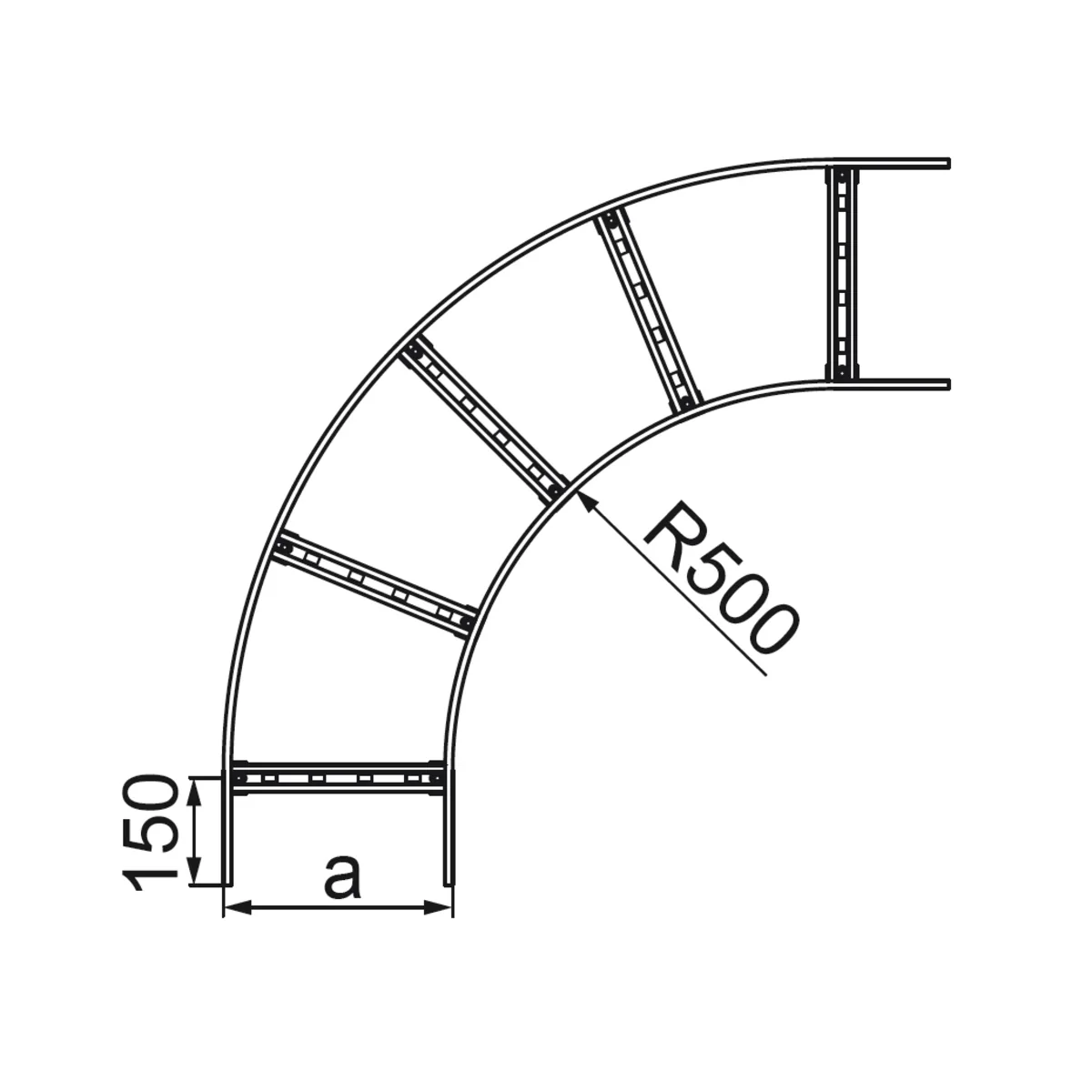

Type: LDSC200H100
Price:
48,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

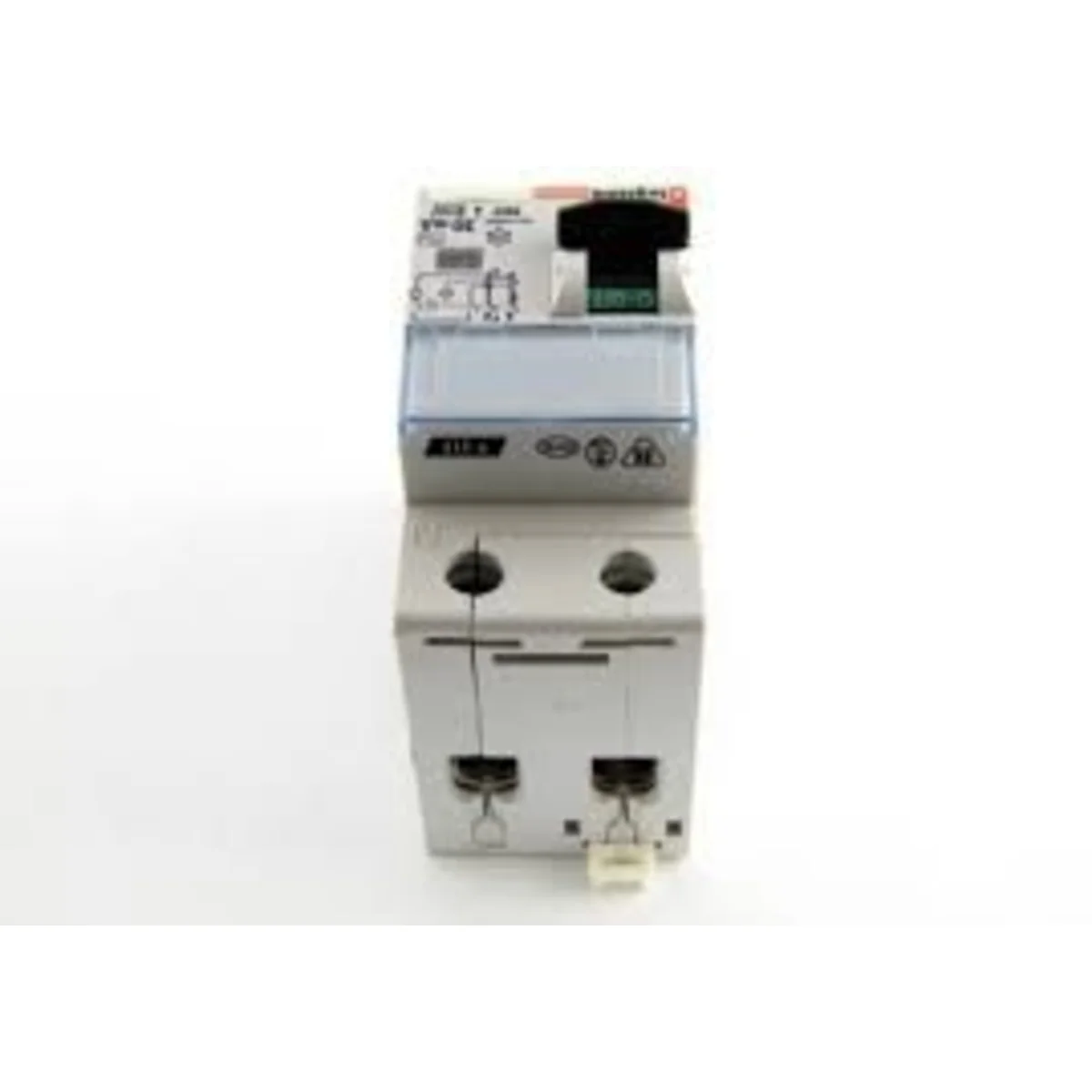

Legrand Residual Overcurrent Circuit Breaker P312 B 20A/30mA AC

< tr>
Rated current In:20A
Rated residual current In:30 mA
Width in modules:2
Number of poles:2
Rated voltage Un:230V~
Security grade:IP 2x
Minimum operating temperature:-25oC
Maximum operating temperature:+40oC
Execution:AC
Connective and mechanical durability:4000 operations
Rated short-circuit current Inc:6000 A
Rated short-circuit differential current Ic:6000A
Cable cross-section connections:1.5...35 mm²
Type of clamps:Sleeve type, with the possibility of connecting busbars at the same time and cables.
Mounting:On mounting brackets TH 35-2 acc. to PN-EN 60715 with two bistable hooks.
Housing:Colour: gray, RAL 7035
Compliance with standard: EN 61009



Technical data

  • Material
    galvanized steel
  • Type
    LDSC200H100
  • PKWIU
    25.11.23.0
  • Width [mm]
    200
  • Compliance with standards
    PN-EN 103462011
