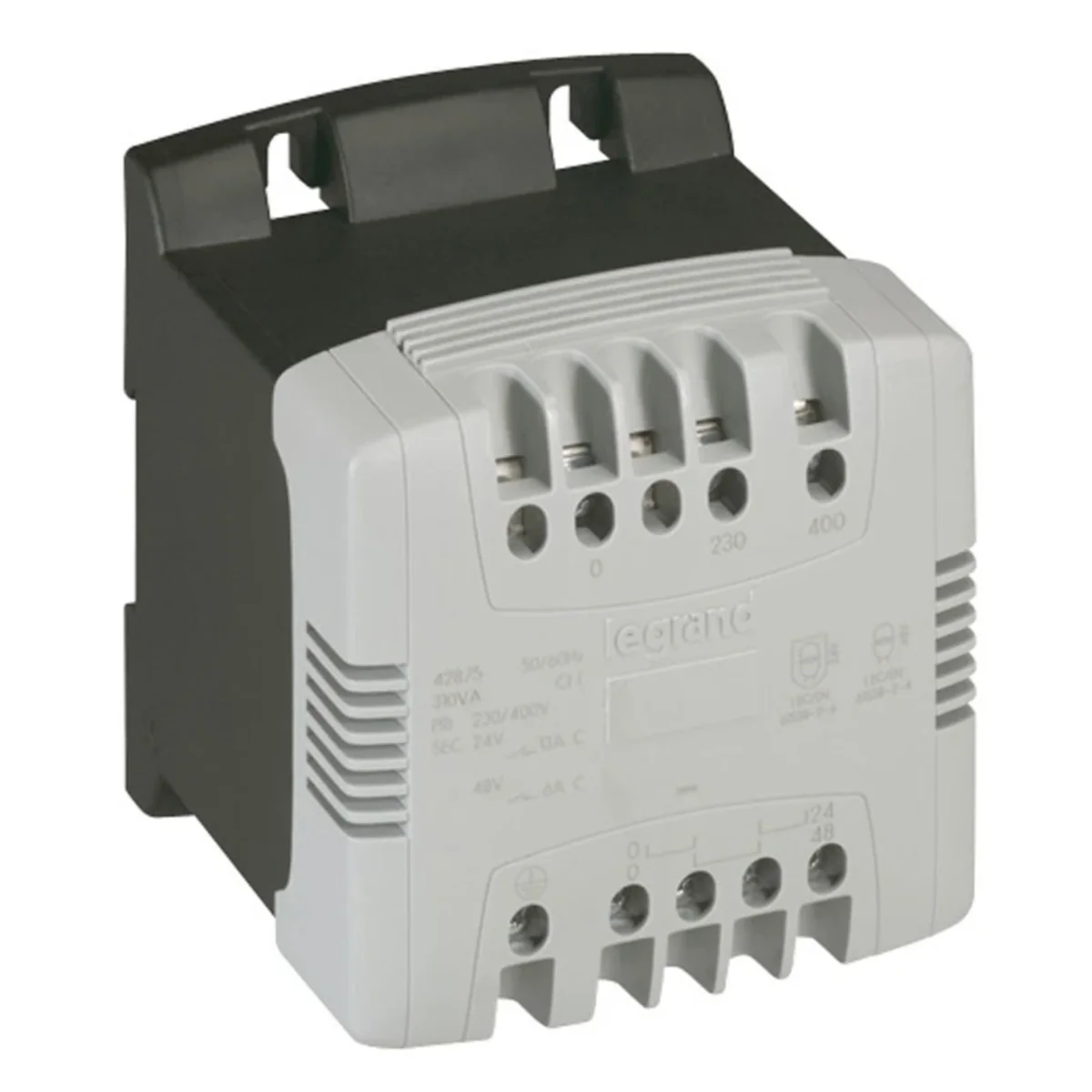

Transformer 230-400/24V 450VA 042861

IP 2X for transformers up to 450 VA (310 VA for 12-24 V secondary transformers)
Transformers up to 160 VA can be fixed on the TH35 mounting bracket using 2 brackets Ref. 0044 16 or insert ref. 428 99
Transformer with selectable secondary voltage via the included connecting bus
Transformers up to 450 VA supplied with earthing terminal (except ref. 428 46)
Rated frequency: 50 - 60 Hz, class I
According to the PN-EN 61558-2-6 standard for the secondary voltage of 12 V and 24 V
and compliant with the PN-EN 61558-2-4 standard for the secondary voltage of 48 V, 115 V and 230 V
Transformers meet the standards for building equipment PN-EN 61131-2, PN-EN 60204-1 PN-EN 60439-1


Product parameters

Safety
12 - 24 V
230-400 V (primary winding) / 24 V (secondary winding)
Power: 450 VA
Permissible momentary load at cosφ = 0.5: 1100 VA
Primary wire diameter: 1 to 4 mm2
Secondary wire diameter: 1 to 16 mm2
