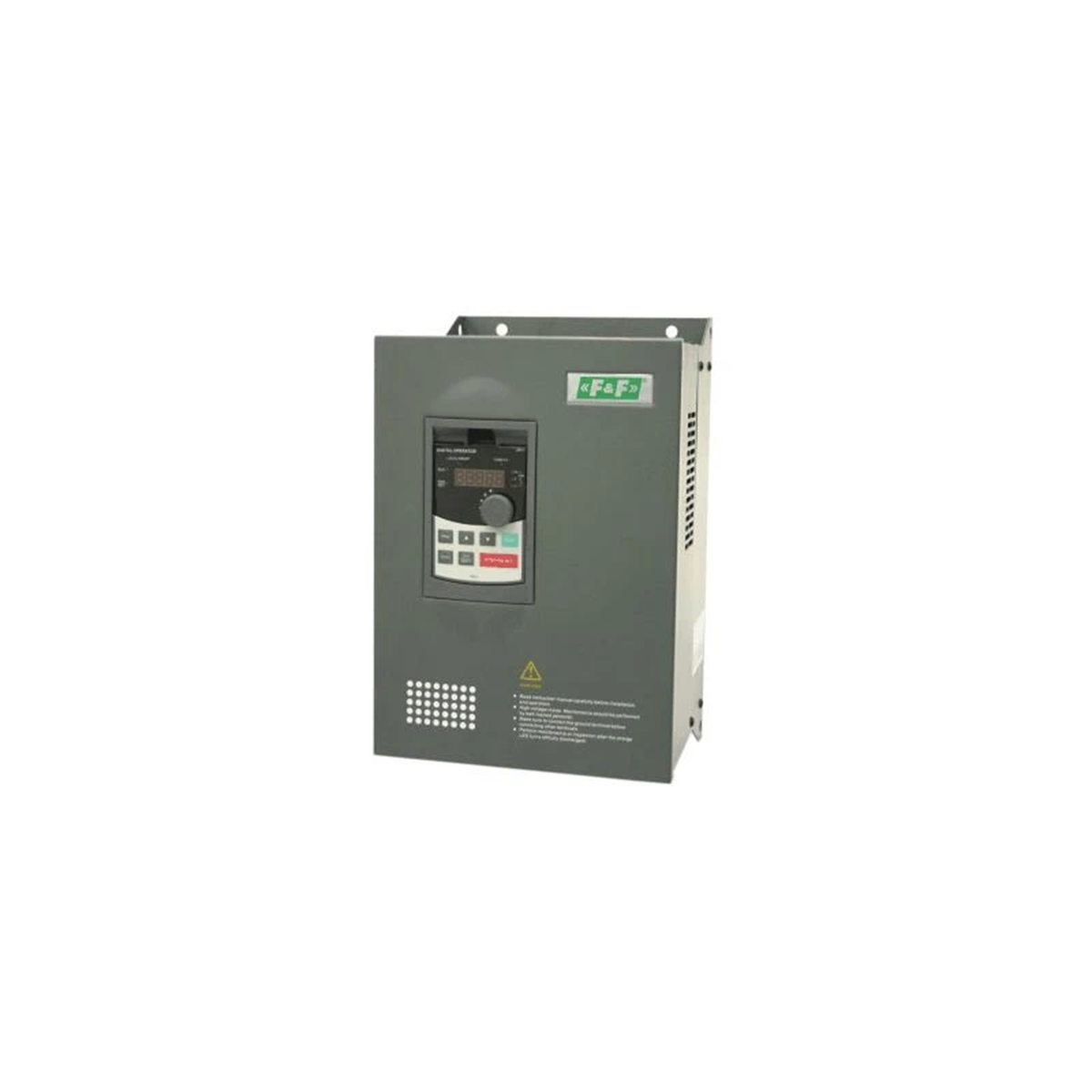

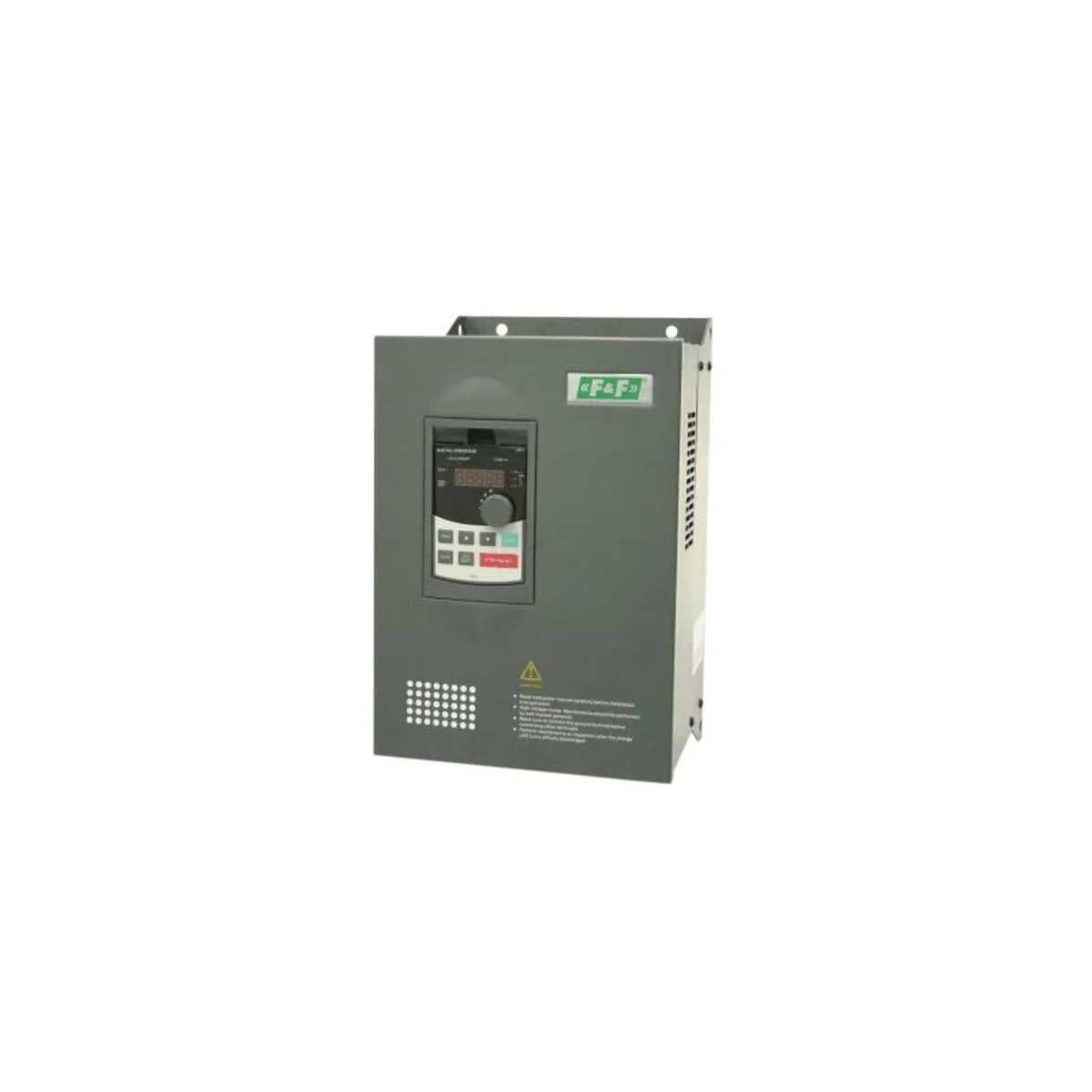

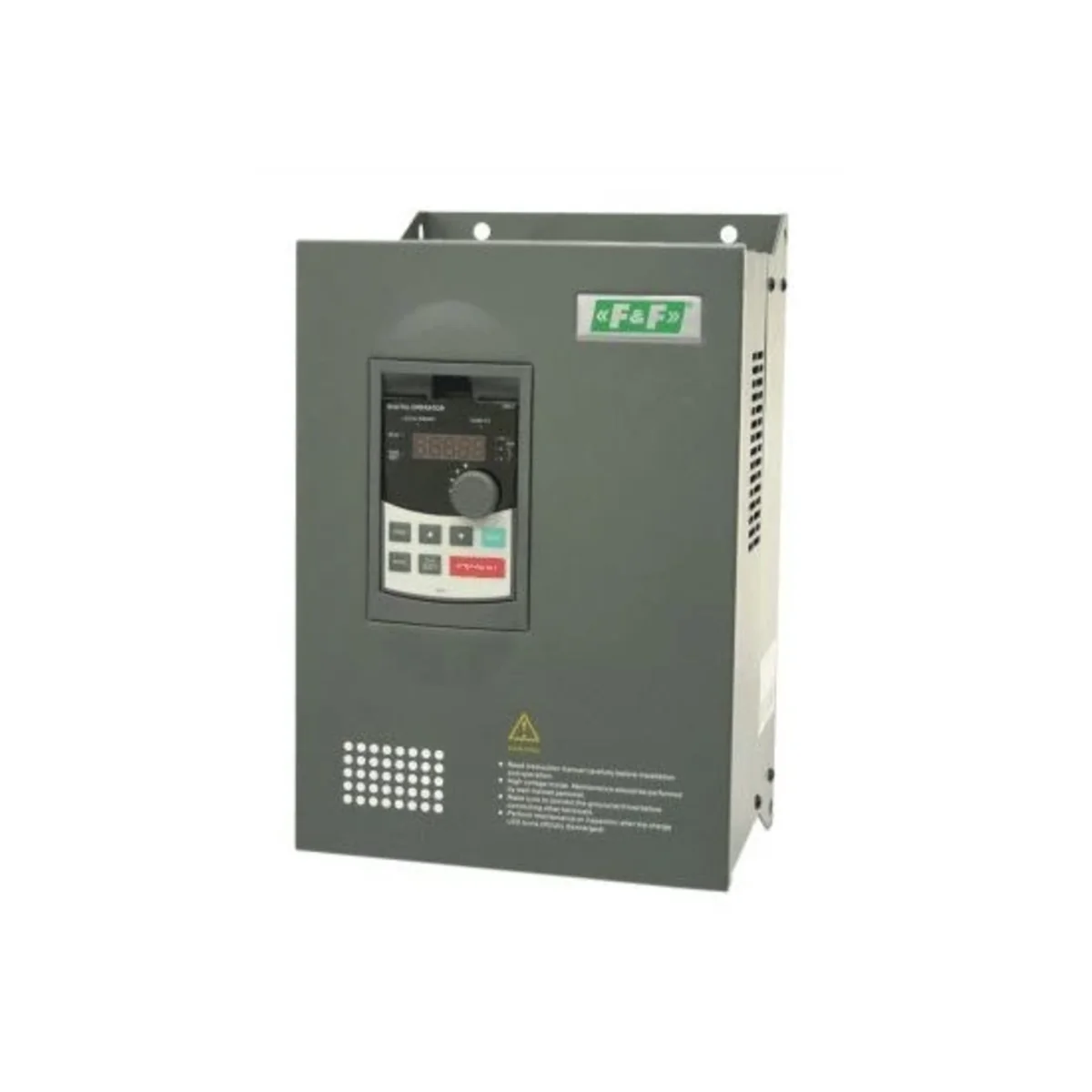

Three-phase inverter Uin=3x400V AC Iin=26A Uout=3x400V AC Iout=25A Pmax=11kW FA-3X110

local index:
AUF014FIFQ
Catalog No:
FA-3X110
EAN code:
5908312598404
Manufacturer: F&F
Power [kW]: 11
Maximum power [kW]: 11
Input Current [A]: 26
Price:
908,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Inverters belong to the group of electronic frequency converters and are designed for smooth regulation of rotational speed of asynchronous three-phase motors.

The most important functions

  • Construction of the inverter based on a powerful 32-bit DSP processor ensures fast and  effective implementation of advanced algorithms for controlling an asynchronous three-phase motor
  • Opportunity to work in speed control or torque control mode
  • Motor control based on sensorless vector control  and control based on freely programmable V/F characteristics.
  • Automatic slip compensation function and high starting torque (up to 180% at 0.5 Hz).
  • PLC mode – possibility to program up to sixteen steps performed once or cyclically by the inverter.
  • For each step, you can specify the speed, acceleration time and duration.
  • Very flexible programming of inputs and outputs both analog and digital.

Technical data

  • Power [kW]
    11
  • Input Current [A]
    26
  • Level of security
    IP20
  • Package width [mm]
    220
  • Output current [A]
    25
  • PKWIU
    27.11.50.0
  • Maximum power [kW]
    11
  • Output current [A]
    25
  • Package height [mm]
    360
  • Package weight [kg]
    3
  • Mains voltage [V]
    380-415

Other technical data

  • Mains voltage
    400 ... 400 V
  • Number of phases input
    1
  • Max. output frequency
    320 Hz
  • Max. output at quadratic load at rated output voltage
    11 kW
  • Relative symmetric net frequency tolerance
    5 %
  • With control element
    yes
  • Application in domestic- and commercial area permitted
    yes
  • Supporting protocol for PROFIBUS
    no
  • Supporting protocol for INTERBUS
    no
  • Supporting protocol for KNX
    no
  • Supporting protocol for Data-Highway
    no
  • Supporting protocol for SUCONET
    no
  • Supporting protocol for PROFINET IO
    no
  • Supporting protocol for SERCOS
    no
  • Supporting protocol for EtherNet/IP
    no
  • Supporting protocol for DeviceNet Safety
    no
  • Supporting protocol for PROFIsafe
    no
  • Supporting protocol for other bus systems
    no
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces parallel
    0
  • With optical interface
    no
  • Integrated breaking resistance
    yes
  • Type of converter
    U converter
  • Height
    210 mm
  • Depth
    360 mm
  • Mains frequency
    50/60 Hz
  • Number of phases output
    3
  • Nominal output current I2N
    25 A
  • Max. output at linear load at rated output voltage
    11 kW
  • Relative symmetric net voltage tolerance
    10 %
  • Application in industrial area permitted
    yes
  • Supporting protocol for TCP/IP
    no
  • Supporting protocol for CAN
    no
  • Supporting protocol for ASI
    no
  • Supporting protocol for Modbus
    yes
  • Supporting protocol for DeviceNet
    no
  • Supporting protocol for LON
    no
  • Supporting protocol for PROFINET CBA
    no
  • Supporting protocol for Foundation Fieldbus
    no
  • Supporting protocol for AS-Interface Safety at Work
    no
  • Supporting protocol for INTERBUS-Safety
    no
  • Supporting protocol for SafetyBUS p
    no
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces USB
    0
  • Number of HW-interfaces other
    0
  • With PC connection
    no
  • 4-quadrant operation possible
    no
  • Degree of protection (IP)
    IP20
  • Width
    220 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,300
Length (m) 0,460
Depth (m) 0,295
