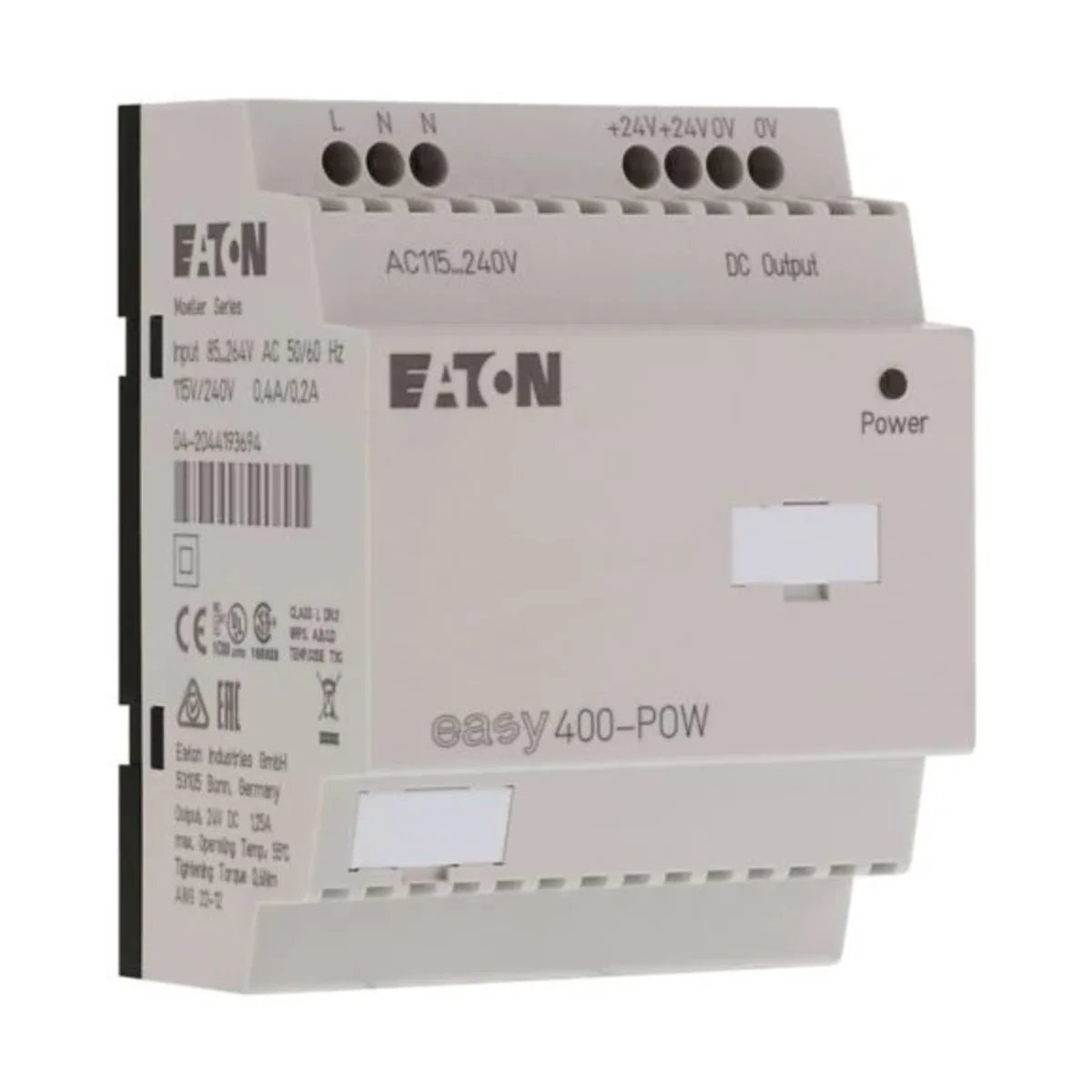

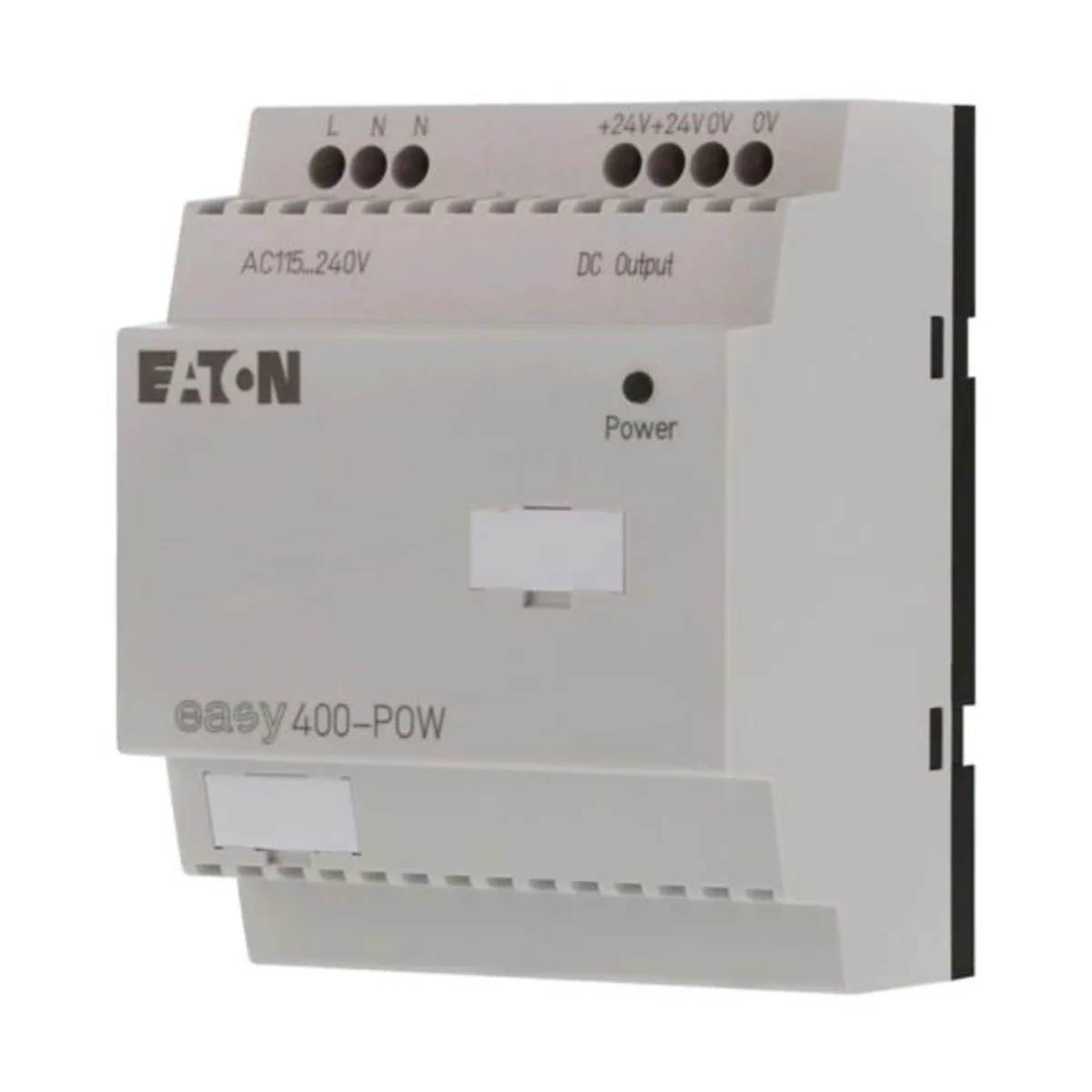

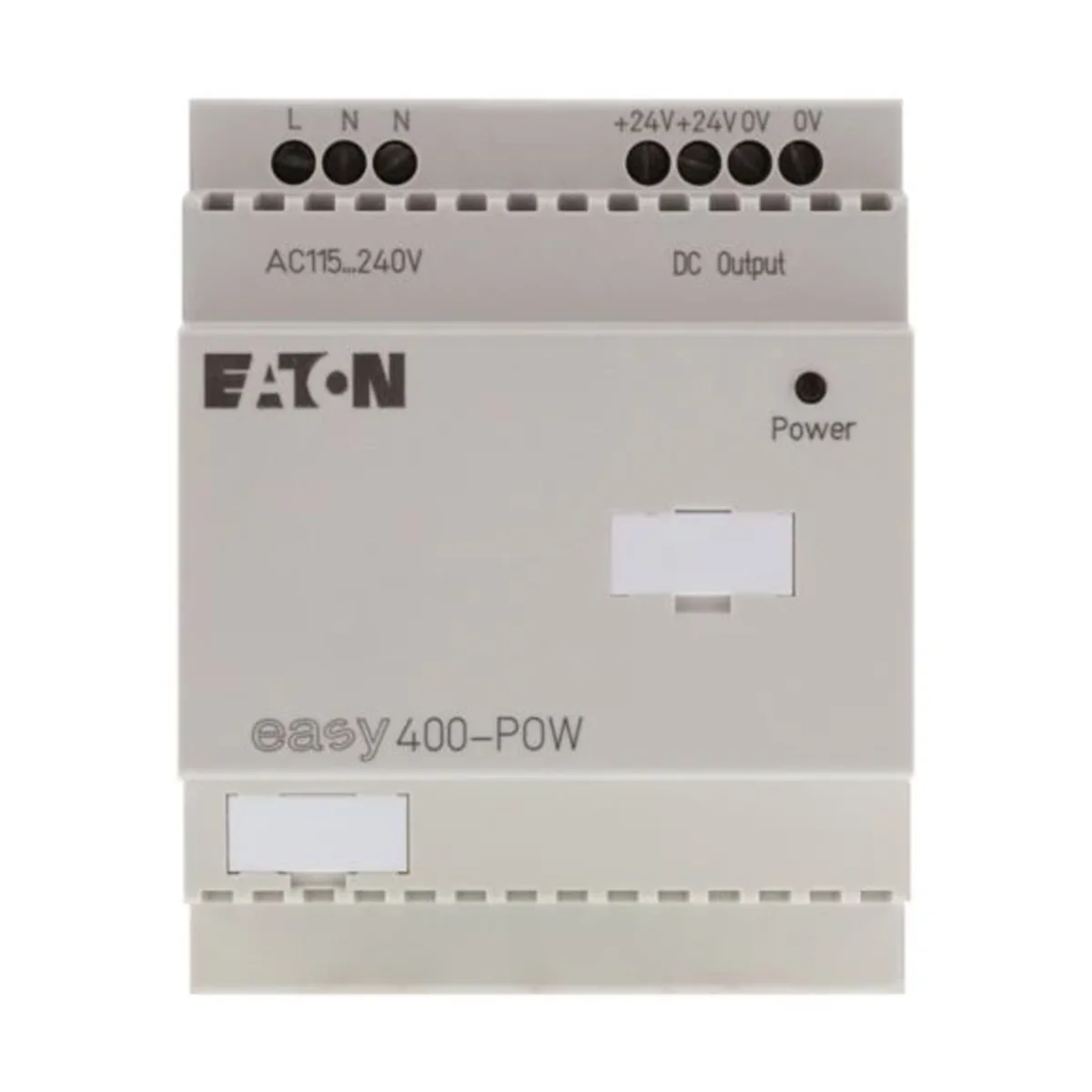

Stabilized power supply 24VDC, 1.25A, EASY400-POW 212319

local index:
AUU007MOEL
Catalog No:
212319
EAN code:
4015082123192
Price:
125,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switch-mode power supply, stabilized - 50/60 Hz: 100–240 V AC.

Technical data

Other technical data

  • Input voltage AC 50 Hz
    85 ... 264 V
  • Input voltage DC
    0 ... 0 V
  • Max. input current AC 50 Hz
    0.6 A
  • Max. input current DC
    0 A
  • Output voltage AC 50 Hz
    0 ... 18 V
  • Output voltage DC
    0 ... 24 V
  • Max. output current AC 60 Hz
    0 A
  • Power output
    30 W
  • Suitable for safety functions
    No
  • Height
    90 mm
  • Input voltage AC 60 Hz
    85 ... 264 V
  • Type of voltage (input voltage)
    AC
  • Max. input current AC 60 Hz
    0.6 A
  • Type of output voltage
    AC
  • Output voltage AC 60 Hz
    0 ... 0 V
  • Max. output current AC 50 Hz
    1.25 A
  • Max. output current DC
    1.25 A
  • Redundancy
    No
  • Width
    72 mm
  • Depth
    58 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,203
Volume (m3) 0,000
Width (m) 0,078
Length (m) 0,094
Depth (m) 0,065
