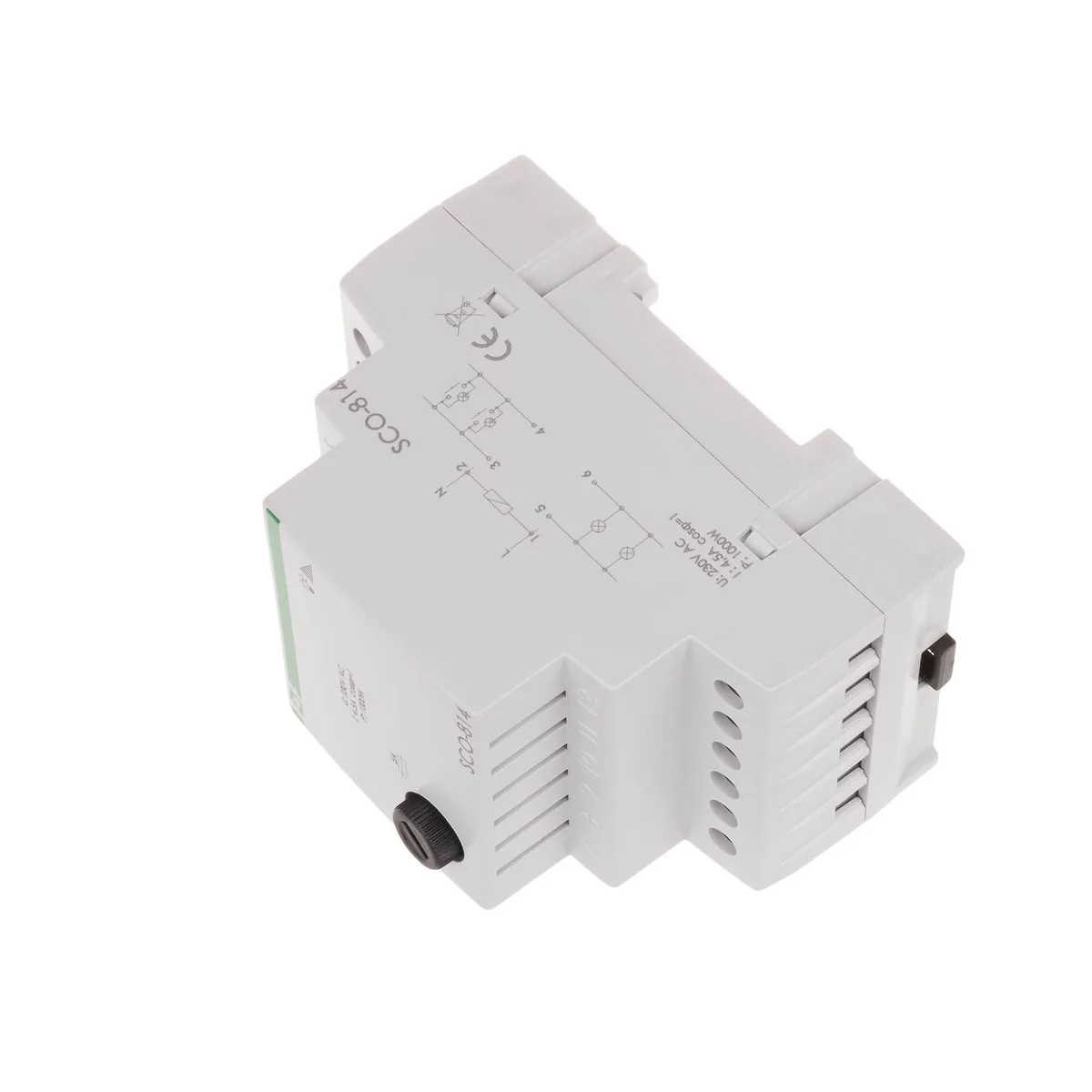

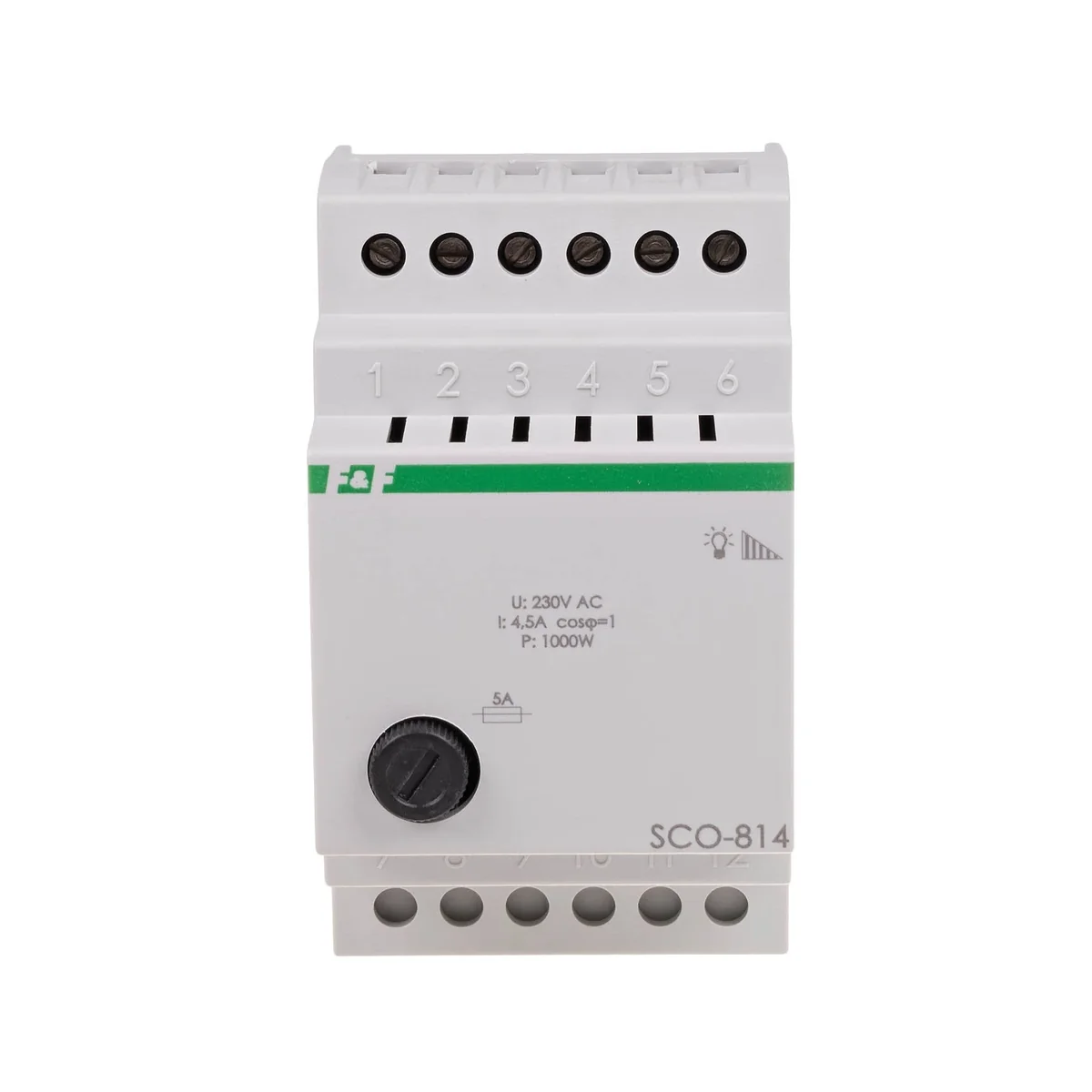

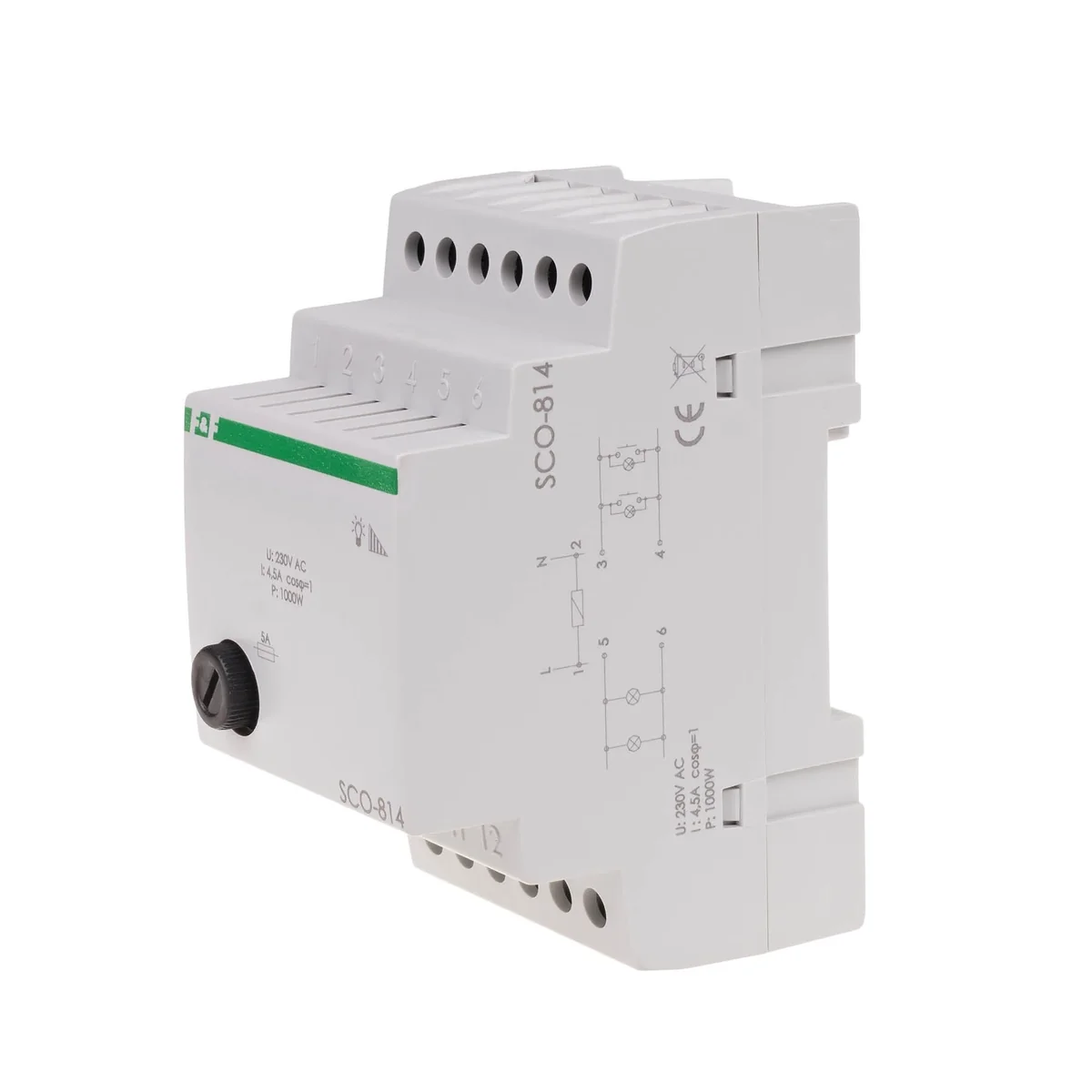

SCO-814 lighting dimmer SCO-814

local index:
AUU017FIFQ
Catalog No:
SCO-814
EAN code:
5908312592518
Manufacturer: F&F
Power [W]: 1000
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
44,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Use
The lighting dimmer is used to switch on and off incandescent and halogen lighting with the possibility of adjusting the intensity of this lighting with any momentary (bell) switch. Operation
The lighting is switched on after  impulse of current caused by pressing the momentary (bell) switch connected to the relay. The lighting will be turned off after the next pulse. Holding down the button >1sec. allows you to set the desired lighting intensity (smooth pulsation of lighting in a loop BRIGHTER→DARKER→BRIGHTER). NOTE!
SCO can be used for halogen lamps, also powered by a transformer or electronic power supply adapted to work with dimmers.
Dimmers may work incorrectly with some electronic power supplies (e.g. lighting flickering) . Someótypesóneed  halogen lamps with a total power of min. 50% of the nominal power of the power supply.
Before final assembly, it is recommended to perform tests.

Technical data

  • Power [W]
    1000
  • Rated voltage [V]
    230
  • load current [A]
    <4.5
  • Working temperature [°C]
    -25-50
  • Overcurrent protection
    WTA 5×20 2A fuse-link
  • Package width [mm]
    60
  • Control impulse
    <1sec
  • Installation
    On the TH-35 rail
  • Power consumption [W]
    0.3
  • connection
    2.5mm screw terminals
  • Dimensions
    3 modules (52.5mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.13
  • PKWIU
    27.12.24.0

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,137
Width (m) 0,056
Length (m) 0,095
Depth (m) 0,070
