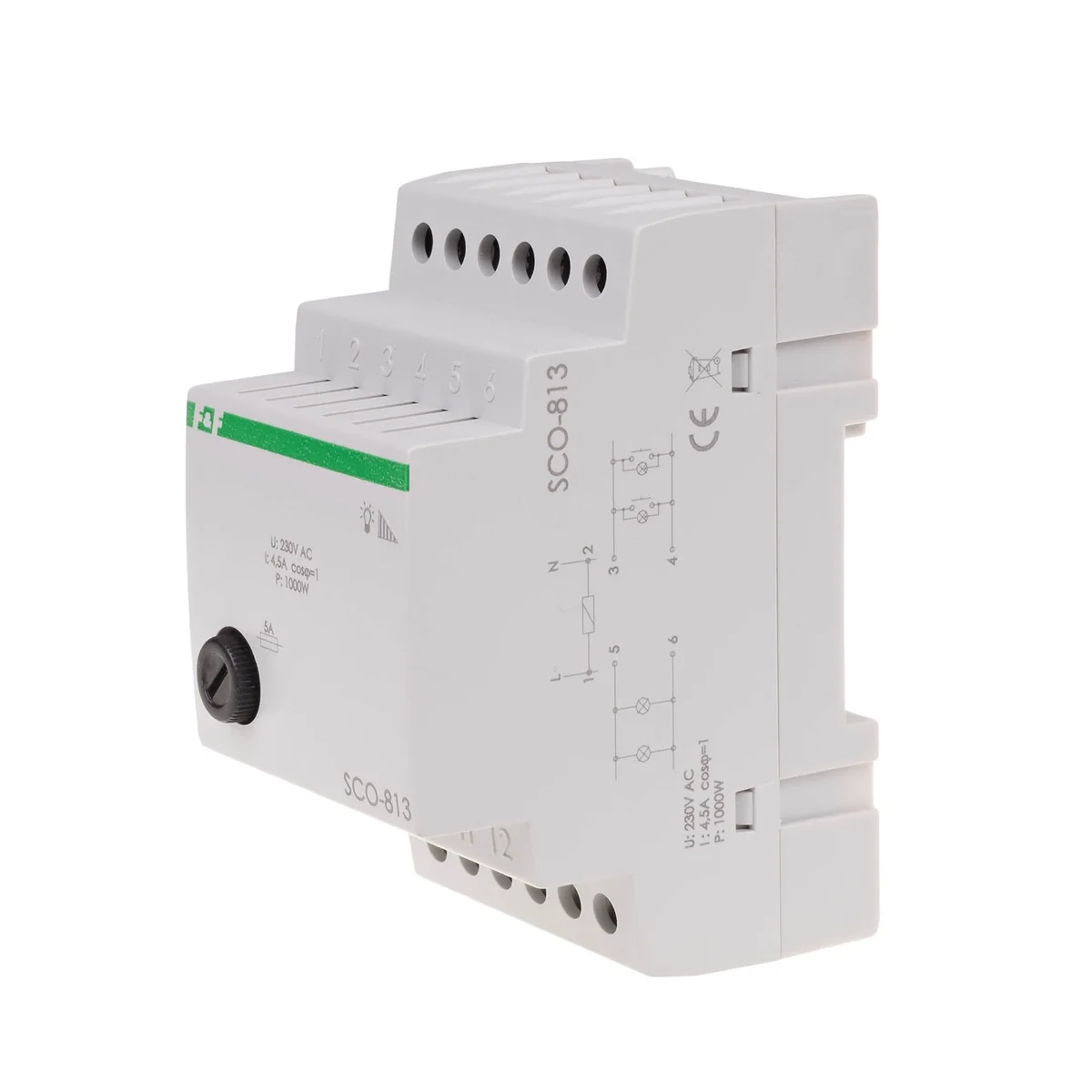

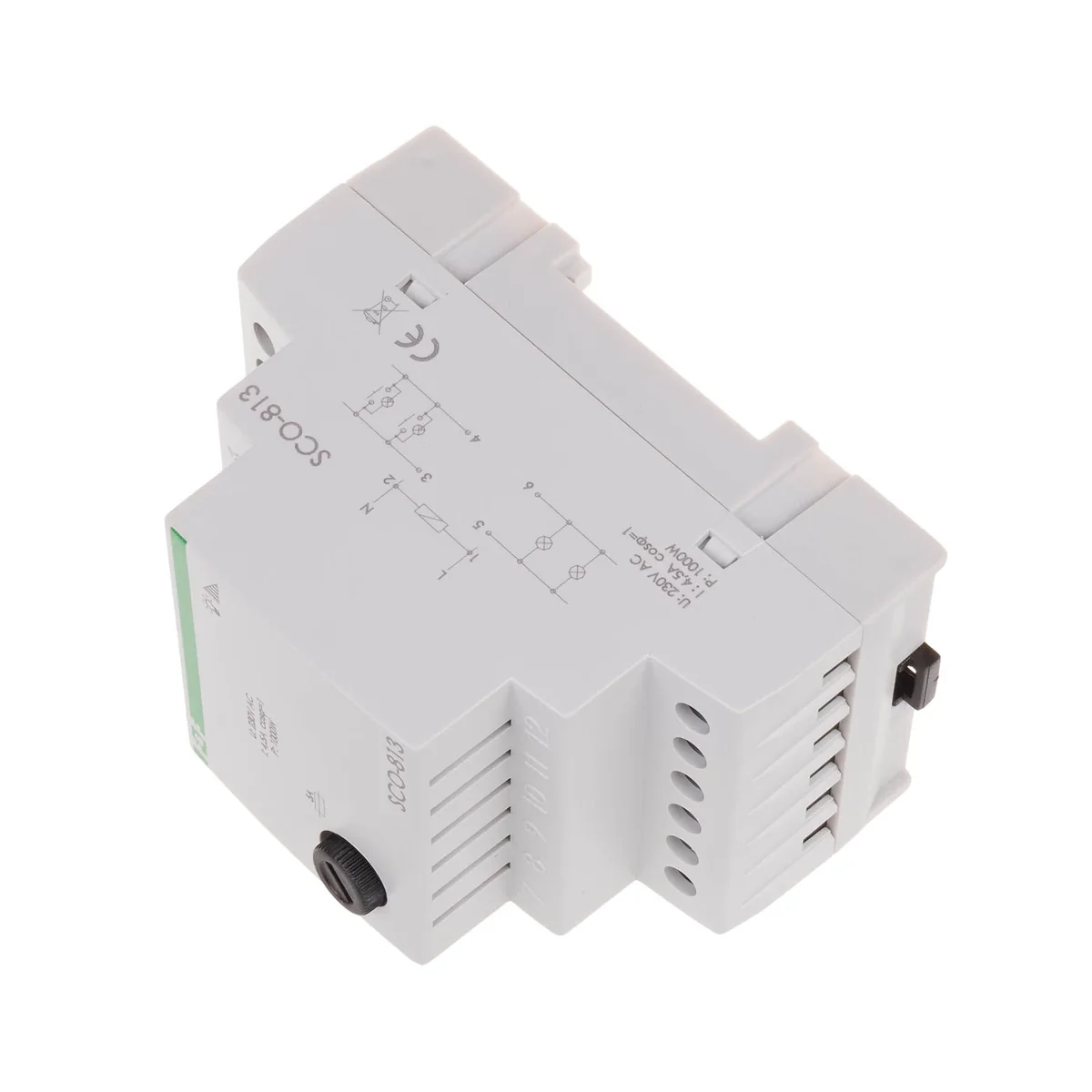

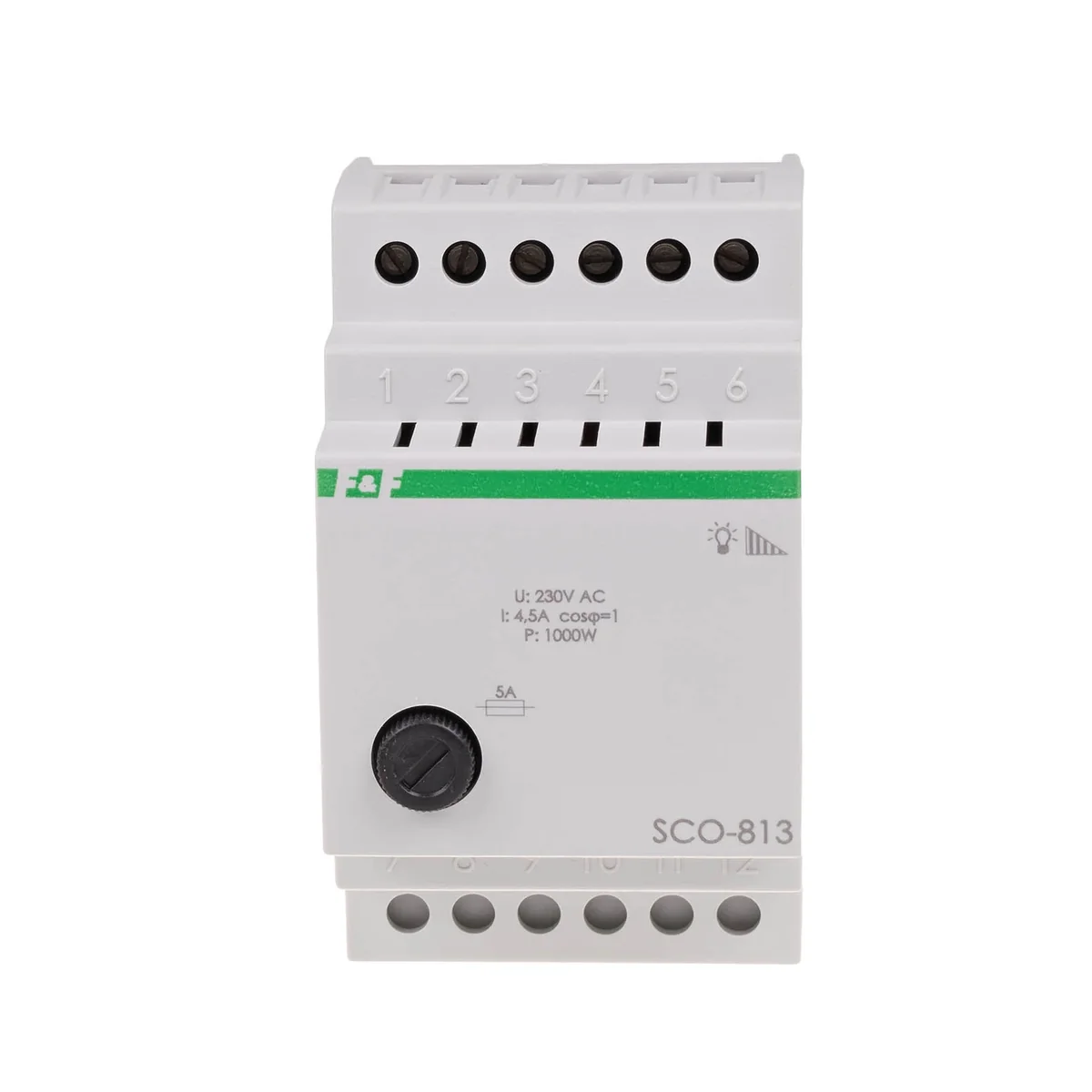

SCO-813 lighting dimmer SCO-813

Use
The lighting dimmer is used to switch on and off incandescent and halogen lighting with the possibility of adjusting the intensity of this lighting with any momentary (bell) switch. Operation
The lighting is switched on after  impulse of current caused by pressing the momentary (bell) switch connected to the relay. The lighting will be turned off after the next pulse. Holding down the button >1sec. allows you to set the desired lighting intensity (smooth pulsation of lighting in a loop BRIGHTER→DARKER→BRIGHTER). NOTE!
SCO can be used for halogen lamps, also powered by a transformer or electronic power supply adapted to work with dimmers.
Dimmers may work incorrectly with some electronic power supplies (e.g. lighting flickering) . Someótypesóneed  halogen lamps with a total power of min. 50% of the nominal power of the power supply.
Before final assembly, it is recommended to perform tests.
