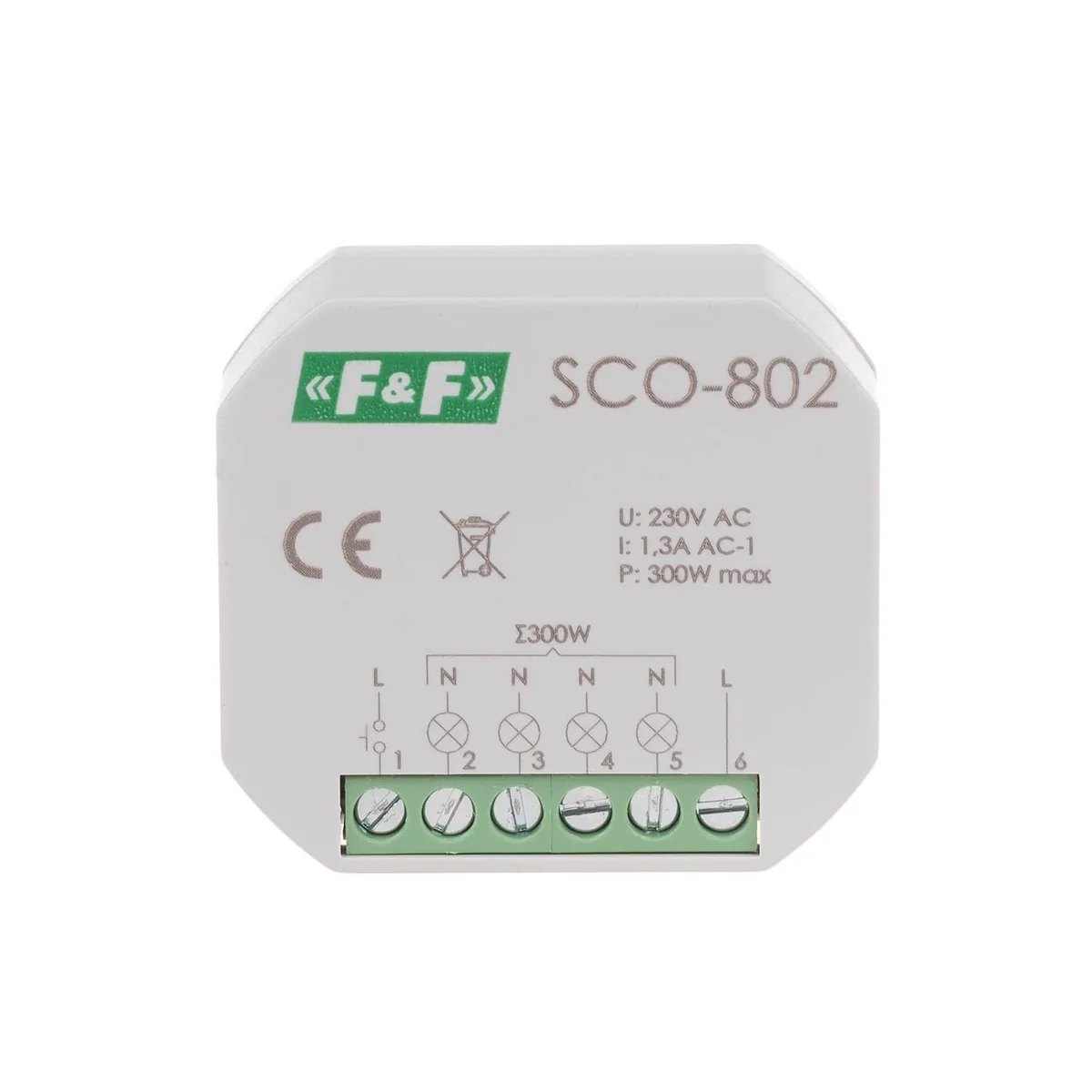

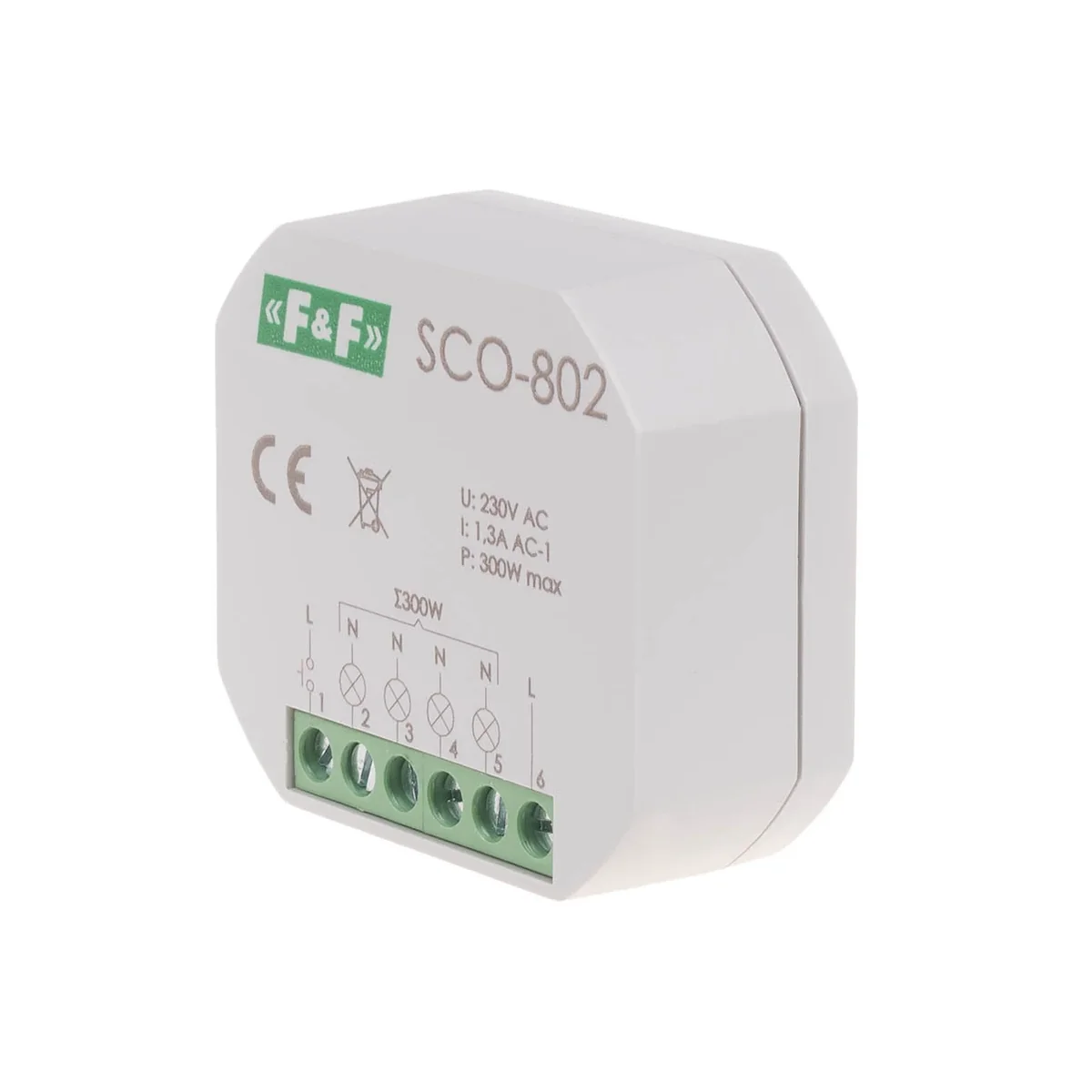

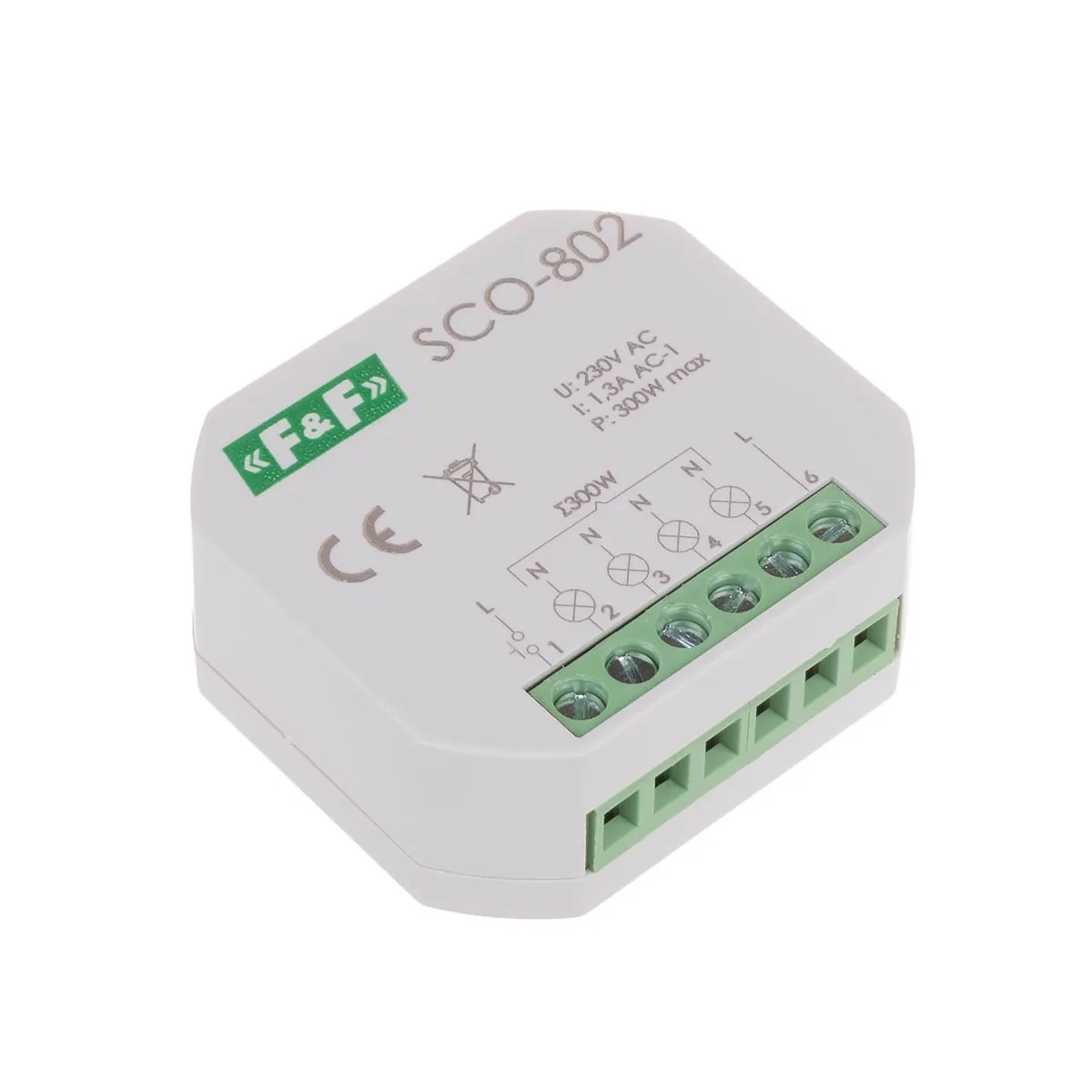

SCO-802 lighting dimmer SCO-802

local index:
AUU015FIFQ
Catalog No:
SCO-802
EAN code:
5908312591139
Manufacturer: F&F
Power [W]: 350
Installation: Flush-mounted
Rated voltage [V]: 230
Price:
20,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Use
The lighting dimmer is used to switch on and off incandescent and halogen lighting with the possibility of adjusting the intensity of this lighting with any momentary (bell) switch. Operation
The lighting is switched on after  impulse of current caused by pressing the momentary (bell) switch connected to the relay. The lighting will be turned off after the next pulse. Holding down the button >1sec. allows you to set the desired lighting intensity (smooth pulsation of lighting in a loop BRIGHTER→DARKER→BRIGHTER). NOTE!
SCO can be used for halogen lamps, also powered by a transformer or electronic power supply adapted to work with dimmers.
Dimmers may work incorrectly with some electronic power supplies (e.g. lighting flickering) . Someótypesóneed  halogen lamps with a total power of min. 50% of the nominal power of the power supply.
Before final assembly, it is recommended to perform tests.

Technical data

  • Power [W]
    350
  • Rated voltage [V]
    230
  • load current [A]
    <1.5
  • Diameter [mm]
    55
  • Height [mm]
    13
  • Package height [mm]
    13
  • Packaging diameter [mm]
    55
  • PKWIU
    27.12.24.0
  • Installation
    Flush-mounted
  • Power consumption [W]
    0.1
  • connection
    3×DY 1mm, l=10cm
  • Working temperature [°C]
    -25-50
  • Overcurrent protection
    WTA 5×20 2A fuse-link
  • Package weight [kg]
    0.1
  • Control impulse
    <1sec

Other technical data

  • Assembly arrangement
    Basic element
  • Serial dimmer
    Yes
  • Substation input
    No
  • Applicable with button
    Yes
  • Applicable with presence indicator
    No
  • Applicable with transmission button
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    48 mm
  • Device depth
    20 mm
  • Method of operation
    Push button
  • Type of load
    Resistive load
  • Light value memory
    Yes
  • Applicable with movement sensor
    No
  • Applicable with time switch/timer
    No
  • Applicable with infrared button
    No
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Transparent
    No
  • Frequency
    50 ... 50 Hz
  • Device height
    43 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,045
Width (m) 0,026
Length (m) 0,095
Depth (m) 0,070
