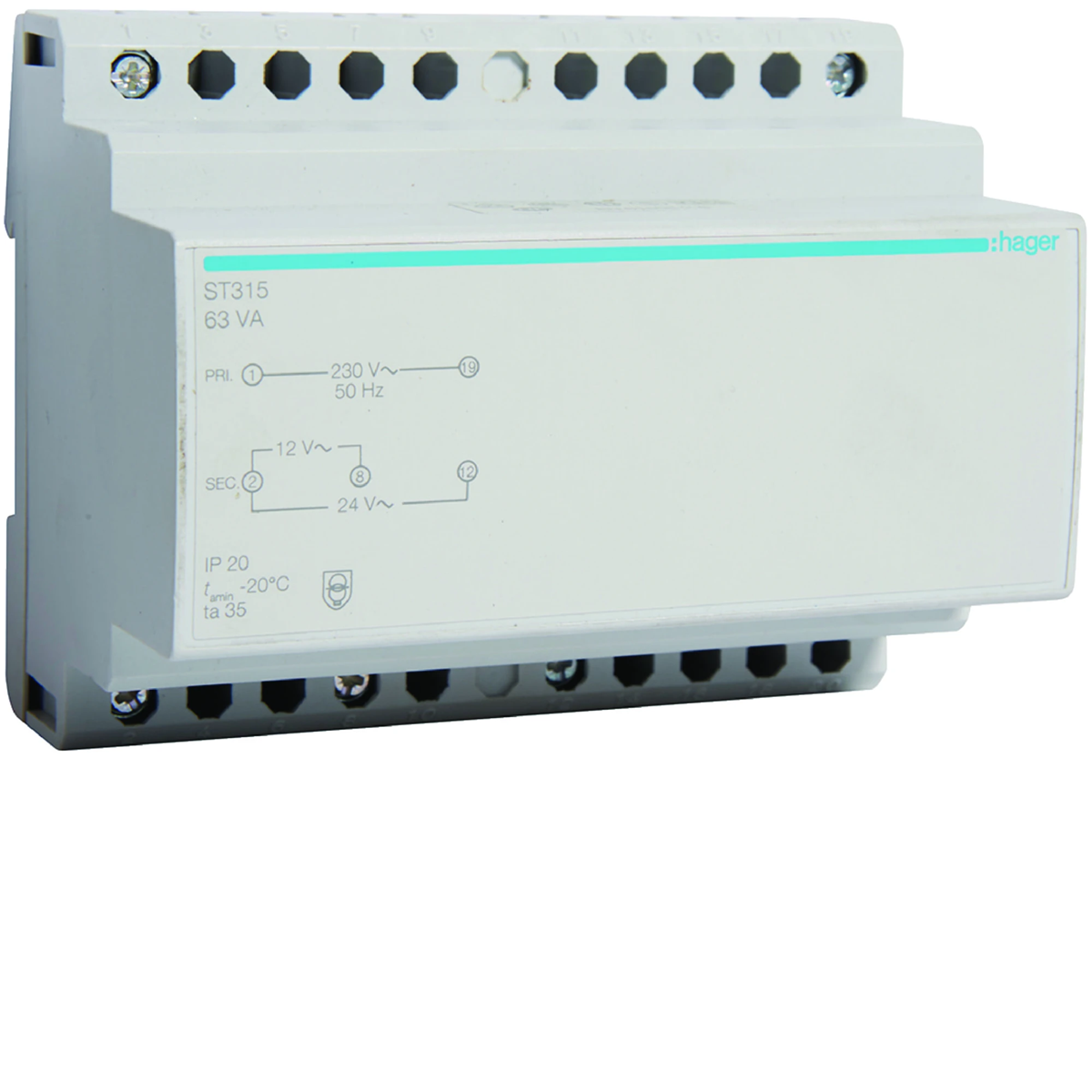

Safety transformer 12V/5 25A or 24V/2 63A ST315

local index:
AUP013HAGE
Catalog No:
ST315
EAN code:
3250615703156
Manufacturer: HAGER
Depth [mm]: 68
Number of modules: 6
Power [VA]: 125
Price:
110,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

Safety transformers with separated primary and secondary windings. Output voltage 12/24 V AC Safety transformers and bell transformers are short-circuit proof.

Technical data

  • Depth [mm]
    68
  • Power [VA]
    125
  • Secondary voltage [V]
    5
  • Rated insulation voltage [V]
    4000
  • Width [mm]
    105
  • Number of modules
    6
  • Number of modules
    6
  • Primary voltage [V]
    12
  • Rated voltage [V]
    230
  • Power dissipation [W]
    4.5
  • Height [mm]
    85
  • PKWIU
    27.11.42.0

Other technical data

  • Primary voltage
    230 V
  • Secondary voltage 2
    24 V
  • Secondary amperage 2
    2.63 A
  • Type of transformer
    Safety transformer
  • Length
    85 mm
  • Height
    68 mm
  • Short-circuit protected
    Yes
  • With on/off switch
    No
  • Secondary voltage 1
    12 V
  • Secondary amperage 1
    5.25 A
  • Max. output power
    63 W
  • Modular version
    Yes
  • Width
    105 mm
  • Width in number of modular spacings
    6
  • Temperature protection
    Yes

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 2 pcs. 16 pcs. 384 pcs. 2 pcs. 16 pcs. 384 pcs.
Weight (kg) 2,620 21,020 504,570 2,620 21,020 504,570
Width (m) 0,100 0,310 0,800 0,100 0,310 0,800
Length (m) 0,080 0,210 1,050 0,080 0,210 1,050
Depth (m) 0,220 0,360 1,200 0,220 0,360 1,200
