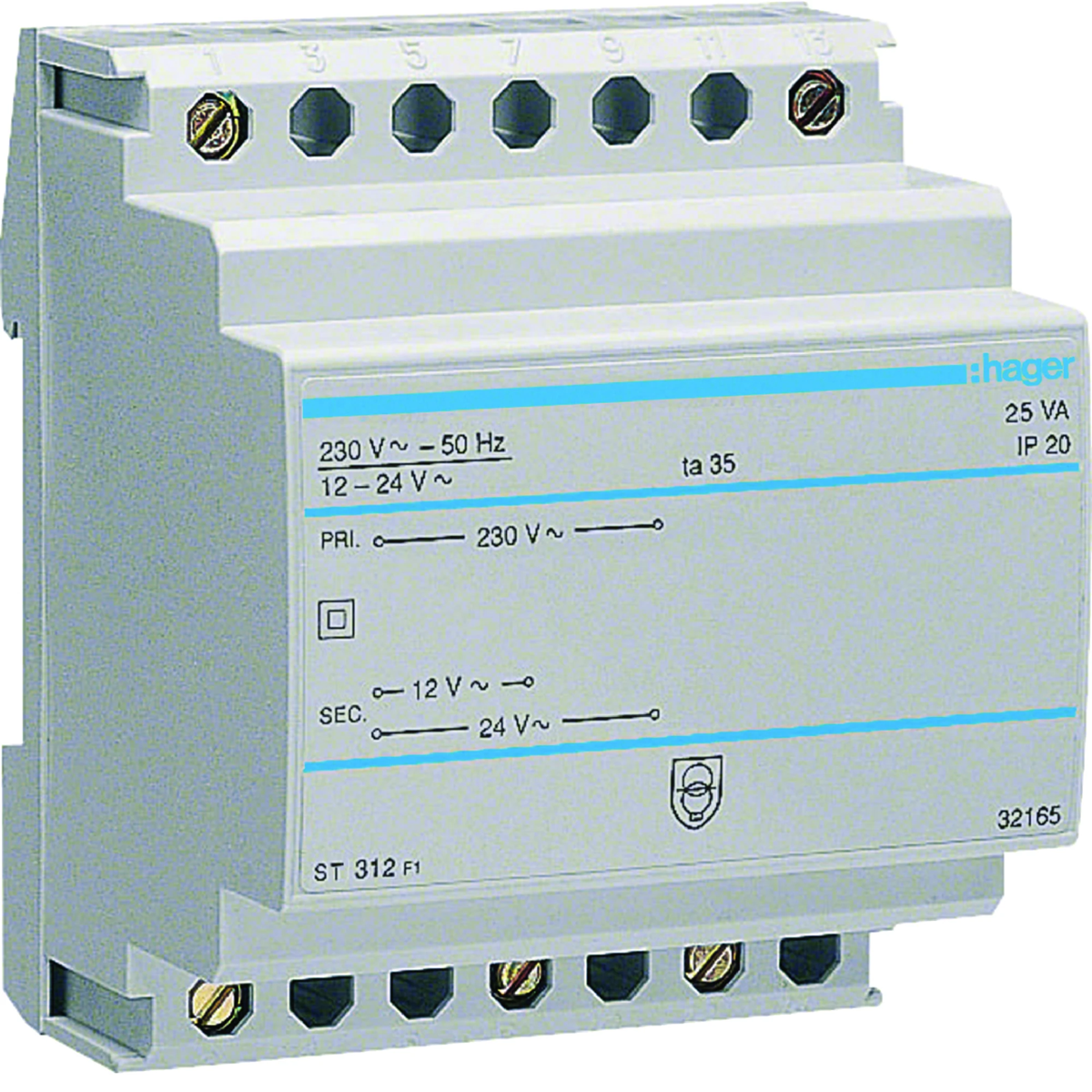

Safety transformer 12V/208A or 24V/104A ST312

Name: Safety transformer 12V/208A or 24V/104A
Brand: HAGER
SKU: AUP010HAGE
Price: 61.34 PLN

local index:

AUP010HAGE

Catalog No:

ST312

EAN code:

3250615703125

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 58

Number of modules: 4

Number of poles: 3

See full description

Price:

61,34 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Safety transformers with separated primary and secondary windings. Output voltage 12/24 V AC Safety transformers and bell transformers are short-circuit proof.

Technical data

Depth [mm]

58
Number of poles

3
Power dissipation [W]

1.8
Height [mm]

85
PKWIU

27.11.42.0

Number of modules

4
Rated insulation voltage [V]

4000
Width [mm]

70
Number of modules

4

Other technical data

Primary voltage

230 V
Secondary voltage 2

24 V
Secondary amperage 2

1.04 A
Max. output current

3 A
Modular version

Yes
Width

70 mm
Width in number of modular spacings

4
Temperature protection

Yes

Secondary voltage 1

12 V
Secondary amperage 1

2.08 A
Max. output power

25 W
Type of transformer

Safety transformer
Length

85 mm
Height

58 mm
Short-circuit protected

Yes
With on/off switch

No

Manufacturer details

Manufacturer

Hager Electro S.A.S.
Address

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	1 pcs.	24 pcs.	432 pcs.	1 pcs.	24 pcs.	432 pcs.
Weight (kg)	0,820	19,680	354,240	0,820	19,680	354,240
Width (m)	0,080	0,310	0,800	0,080	0,310	0,800
Length (m)	0,080	0,210	1,010	0,080	0,210	1,010
Depth (m)	0,090	0,360	1,200	0,090	0,360	1,200
