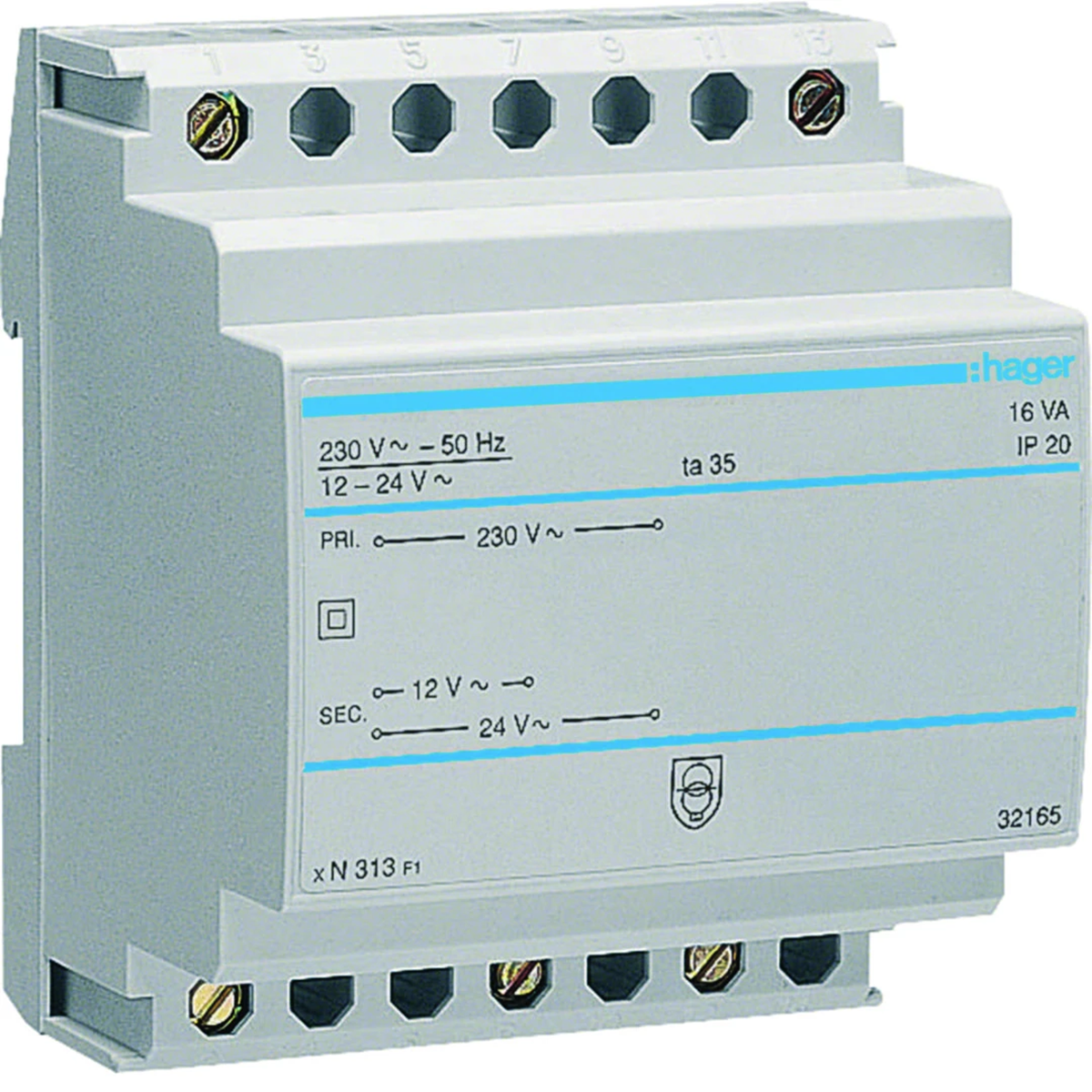

Safety transformer 12V/1 33A or 24V/0 67A ST313

local index:
AUP011HAGE
Catalog No:
ST313
EAN code:
3250615703132
Manufacturer: HAGER
Depth [mm]: 58
Number of modules: 4
Operating voltage [V]: 230
Price:
51,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Safety transformers with separated primary and secondary windings. Output voltage 12/24 V AC Safety transformers and bell transformers are short-circuit proof.

Technical data

  • Depth [mm]
    58
  • Operating voltage [V]
    230
  • Power dissipation [W]
    1.5
  • Height [mm]
    85
  • PKWIU
    27.11.42.0
  • Number of modules
    4
  • Rated insulation voltage [V]
    4000
  • Width [mm]
    70
  • Number of modules
    4

Other technical data

  • Primary voltage
    230 V
  • Secondary voltage 2
    24 V
  • Secondary amperage 2
    0.67 A
  • Type of transformer
    Safety transformer
  • Length
    85 mm
  • Height
    58 mm
  • Short-circuit protected
    Yes
  • With on/off switch
    No
  • Secondary voltage 1
    12 V
  • Secondary amperage 1
    1.33 A
  • Max. output power
    16 W
  • Modular version
    Yes
  • Width
    70 mm
  • Width in number of modular spacings
    4
  • Temperature protection
    Yes

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 1 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,710 17,360 439,640
Width (m) 0,080 0,315 0,800
Length (m) 0,075 0,210 1,050
Depth (m) 0,095 0,360 1,200
