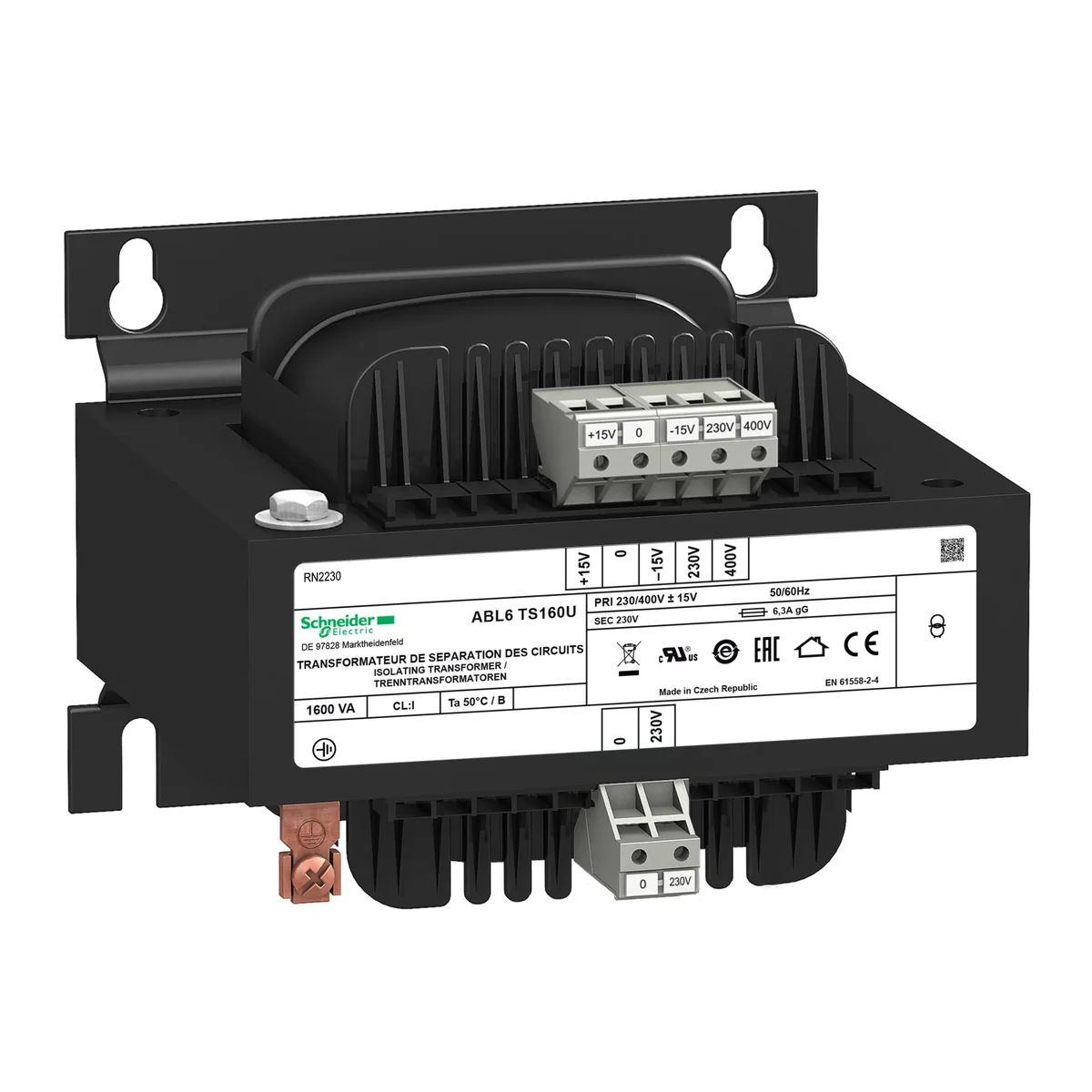

Phaseo, isolating voltage transformer, input 230...400 V, output 1 x 230 V, 1600 VA ABL6TS160U
local index:
AUP003SCHN
Catalog number:
ABL6TS160U
EAN code:
3389110880342
Manufacturer:
SCHNEIDER ELECTRIC
Price:
4 537,47 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
-
PKWIU27.11.42.0
Other technical data
-
Built as safety transformerYes
-
Built as energy saving transformerNo
-
Primary voltage 2385 ... 415 V
-
Rated apparent power1600 VA
-
Short-circuit-proofNo
-
Width174 mm
-
Depth167 mm
-
Ring coreNo
-
Modular versionNo
-
Built as isolating transformerYes
-
Primary voltage 1230 ... 400 V
-
Secondary voltage 1230 ... 230 V
-
Type of insulation material according to IEC 85F
-
Relative short circuit voltage2.65 %
-
Height221 mm
-
Degree of protection (IP)IP20
-
Suitable for mounting on PCBNo
-
Conductor materialOther
Manufacturer details
-
ManufacturerSchneider Electric Polska
-
Address02-673 Warszawa Konstruktorska 12 Polska
-
